Thermal - Cold Cycle meter
Standard
- BS 7291: Compliant for thermal cycling tests on thermoplastic pipe systems (1769 Series with pressure chamber).
- Adaptive Certification: Configurable to meet ISO, ASTM, and EN standards upon request.
Product Advantages
1. Forward-Thinking Technology
- SmartCool™ System: Advanced thermal cycling algorithms anticipate evolving industry needs, ensuring long-term relevance.
- Enhanced Water Flow: Optimized hydraulic design supports high-volume testing for pipes up toØ160mm—critical for modern infrastructure projects.
2. Unmatched Reliability
- 30+ Years of Expertise: Proven structural integrity with corrosion-resistant stainless steel chambers and industrial-grade components.
- Consistent Repeatability: ±0.5°C temperature control and <1% flow variation guarantee ISO 17025-level precision.
3. Modular Adaptability
- Custom Configurations: Tailor the chamber to your workflow with interchangeable accessories and dual-model options (pressurized/non-pressurized).
4. High-Throughput Performance
- 16 Bar Pressure Rating: Simulate extreme hydraulic conditions with industry-leading 25m³/h flow capacity.
- Rapid Thermal Shock: Achieve -20°C to 114°C transitions in <30 minutes (1769 Series).
Product Features
- Dual Models for Diverse Needs:
- 1769 Series (Pressurized): Operates up to114°Cwith integrated pressure chamber for BS 7291 compliance.
- 1770 Series (Non-Pressurized): Cost-efficient solution for tests up to95°C.
- Smart Sample Management:
- Adjustable tension rig with load cell (0–500N) for real-time strain monitoring.
- Perforated wall panels and custom fixtures for irregularly shaped specimens.
- Safety & Efficiency:
- Dual-access doors (single/double-hinged) for ergonomic loading.
- Self-cleaning water circuit minimizes maintenance downtime.
- Connected Workflow:
- IoT-ready controller with 7-day auto-sequencing and cloud data backup.
- Multi-language HMI (English, French, German, Chinese) with audit trail logging.
Technical Parameters
| Specification | 1769 Series (Pressurized) | 1770 Series (Non-Pressurized) |
|---|---|---|
| Temperature Range | -20°C to 114°C | -20°C to 95°C |
| Max. Test Pressure | 16 bar (232 psi) | N/A |
| Flow Rate | 25 m³/h (108 GPM) | 25 m³/h (108 GPM) |
| Max. Sample Ø | 160 mm | 160 mm |
| Power Supply | 380V/50Hz 3-phase (CE certified) | 220V/60Hz single-phase (UL listed) |
| Chamber Volume | 850L (expandable to 1,200L) | 600L |
| Dimensions (W×D×H) | 1,200mm × 800mm × 1,900mm | 900mm × 700mm × 1,700mm |
| Weight | 680 kg (net) | 520 kg (net) |
Accessories & Options
- Chamber Access:
- Single-hinged door (standard) or dual-swing doors for walk-in loading.
- Sample Fixation:
- Adjustable racks for pipes/fittings (Ø16mm–Ø160mm).
- Custom perforated walls for bundled specimens.
- Tension Control:
- Motorized tension rig with 0.1N resolution load cell.
- Extended Warranty:
- 3-year comprehensive coverage for critical components.
- Calibration Kit:
- NIST-traceable temperature/pressure sensors with certificate.
Send product request
Other supplier products
 |

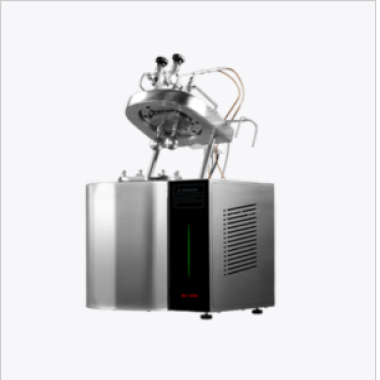

Rapid screening Calorimeter | The rapid - screening calorimeter is a professional calorimetric instrument for the quick assessment of reaction thermal hazards. It supports multi... |
 |
Rapid screening Calorimeter | The rapid - screening calorimeter is a professional calorimetric instrument for the quick assessment of reaction thermal hazards. It supports multi... |
 |

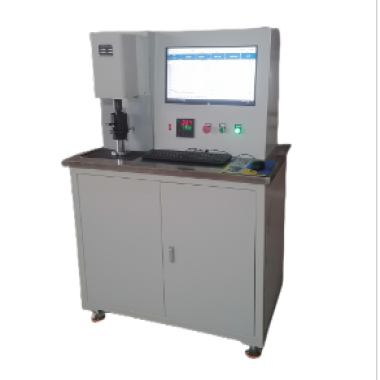

Thrust Washer Friction Testing Machine | The thrust washer friction testing machine is mainly used to simulate the frictional contact of materials under specific working conditions and to ... |
 |
Universal Material Tensile Testing Machine丨Universal Material Tensile Tester | universal testing machineis a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal material... |
 |

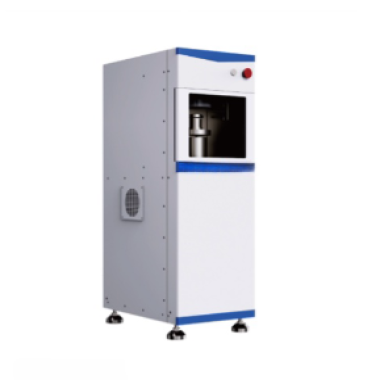

Battery Powder resistivity meter丨Battery Powder resistivity Tester | Standards YS/T 587.6-2006 GB/T 24525-2009 GBT 30835-2014 Product Advantages Unmatched Measurement Flexibility Dual-probe compatibility: Swi... |
