Flammability Tester for Aerosol Foams
Product Introduction
This product complies with "Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria" 31.6 Flammability Test for Aerosol Foams and GB/T 21632 - 2008 Test Method for Flammability of Aerosol Foams in Dangerous Goods.
Standards
GB/T 21632-2008
NY/T 1860
Product Features
1. It adopts an embedded processor and the Windows CE operating system. 2. With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time. 3. It uses highly sensitive photoelectric detection technology to measure the duration of flame combustion and the maximum flame height. 4. Its unique stacked - structure design effectively eliminates backlight interference and is applicable to the judgment of flame heights in various irregular shapes. 5. Automatic judgment of flame height ensures the accuracy of data. 6. It displays test animation images in real - time. 7. It is equipped with a high - precision temperature and humidity module to monitor the temperature and humidity of the test environment in real - time, ensuring the stability of test results. 8. The test process is fully automated, requiring no manual intervention. It supports functions such as parameter setting, data storage, and report viewing.
Technical parameters
| Operating Environment | (5～40)℃, <85%RH |
| Flame Height Detection Range | (0～235)mm |
| Flame Height Detection Resolution | 5mm |
| Combustion Detection Response Time | ≤6ms |
| Ambient Temperature Measurement Range | (-10～+60)℃ |
| Ambient Temperature Measurement Accuracy | ±0.5℃ |
| Ambient Humidity Measurement Range | (5～95)%RH |
| Ambient Humidity Measurement Accuracy | ±5.0%RH |
| Ignition Mode | Gas Igniter |
| Load Glass Size | Ф150mm |
Send product request
Other supplier products
 |
5-Station Seatbelt Webbing Abrasion Tester， ASTM D6770，commercial vehicle seat belt tester | The 5-Station Seatbelt Webbing Abrasion Tester is designed to evaluate the abrasion resistance of webbing materials used in seat belts, lap belts, ... |
 |
Flooring Materials Abrasion Resistance Tester | Standard ASTM D3884(Abrasion Resistance of Textile Fabrics) ISO 5470-1(Rubber or Plastics-Coated Fabrics - Abrasion Resistance) EN 660-2(Abrasio... |
 |
Plastic Biodegradation Testing System，ISO 16929 Biodegradable Plastic Testing Instruments | The Plastic Biodegradation Testing System is a laboratory system used to evaluate the ultimate aerobic biodegradation performance and disintegratio... |
 |
Metal Wire Wrap Tester | The Metal Wire Wrap Tester is designed to evaluate the ductility and winding performance of metallic wires. It measures the ability of wires to wit... |
 |
Cell thickness gauge丨Cell thickness device | Standard ASTM E83: Standard Test Method for Verification of Linear Displacement Measuring Systems ISO 3611: Calibration of Measuring Instrument... |
Same products
 |
Plastic Smoke Density Tester F313 | Seller: Standard International Group (HK) Limited | The F313 Plastic Smoke Density Tester is a precision instrument designed to measure the specific ... |
 |

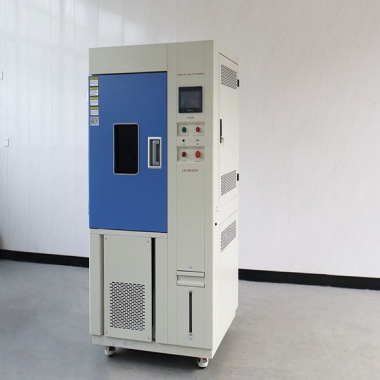

Xenon Test Chamber | Seller: Standard International Group (HK) Limited | Features and Benefits 1.The use of xenon arc lamp as a light source, can simulate the full sunli... |
 |
