Wear Resistance Tester for Flooring Materials
Standard
ASTM D3884(Abrasion Resistance of Textile Fabrics)
ISO 5470-1(Rubber or Plastics-Coated Fabrics - Abrasion Resistance)
EN 660-2(Abrasion Resistance of PVC Floor Coverings)
Taber Standard(Abrasion Testing for Coated Surfaces)
Product Advantages
Unmatched Precision
Equipped with a high-resolution load sensor (±0.1N accuracy) and programmable test cycles, delivering repeatable results for rigorous quality assurance.
Intuitive Operation
7-inch touchscreen control panel with multilingual support (English, Spanish, German, Chinese) and real-time data visualization for effortless test management.
Robust Engineering
Constructed with stainless steel and corrosion-resistant components, ensuring longevity even in demanding industrial environments.
Adaptive Testing Capabilities
Supports rotary, linear, and reciprocating abrasion methods to replicate diverse real-world wear scenarios, from residential to heavy industrial use.
Cost-Effective Maintenance
Modular design allows easy replacement of consumables (e.g., abrasive wheels, clamps), minimizing downtime and operational costs.
Product Features
Customizable Testing Parameters:
Adjustable test speed (10–120 rpm) and load pressure (1–50 N) to simulate light foot traffic to extreme industrial conditions.
Automatic cycle counter with pause/resume functionality for uninterrupted testing workflows.
Safety and Compliance:
Equipped with an emergency stop button, over-temperature protection, and CE/UL certification for safe and reliable operation.
Data Management:
Onboard memory stores over 10.000 test results, exportable via USB/Bluetooth in CSV/PDF formats for seamless data integration.
Universal Fixtures:
Interchangeable clamps accommodate tiles, carpets, laminates, and vinyl flooring (max. sample size: 300×300 mm).
Accessories
Standard Abrasive Wheels(2 pcs): Taber H-18 (general-purpose) and CS-17 (delicate surfaces).
Sample Clamps(3 sets): Designed for flat, curved, and irregularly shaped flooring materials.
Dust Cover: Transparent acrylic shield for operator safety during testing.
Calibration Kit: Precision weight set and gauge for routine equipment verification.
User Manual & Software: Multilingual digital guide + PC software for advanced data analysis and reporting.
Technical Parameters
| Parameter | Specification |
|---|---|
| Test Speed Range | 10–120 rpm (±1 rpm) |
| Load Capacity | 1–50 N (adjustable in 0.1N increments) |
| Sample Thickness | Up to 20 mm |
| Abrasive Wheel Diameter | 150 mm (standard Taber H-18/CS-17) |
| Power Supply | 110V/220V, 50/60Hz, 300W |
| Dimensions (L×W×H) | 600×450×800 mm |
| Weight | 85 kg |
| Operating Environment | 15–35°C, ≤85% RH (non-condensing) |
Send product request
Other supplier products
 |
Medical injection needle puncture force tester | The needle puncture force simulates the skin tester with a 5.7-inch (120 x 90) single color LCD touch screen, which is displayed in the Chinese men... |
 |

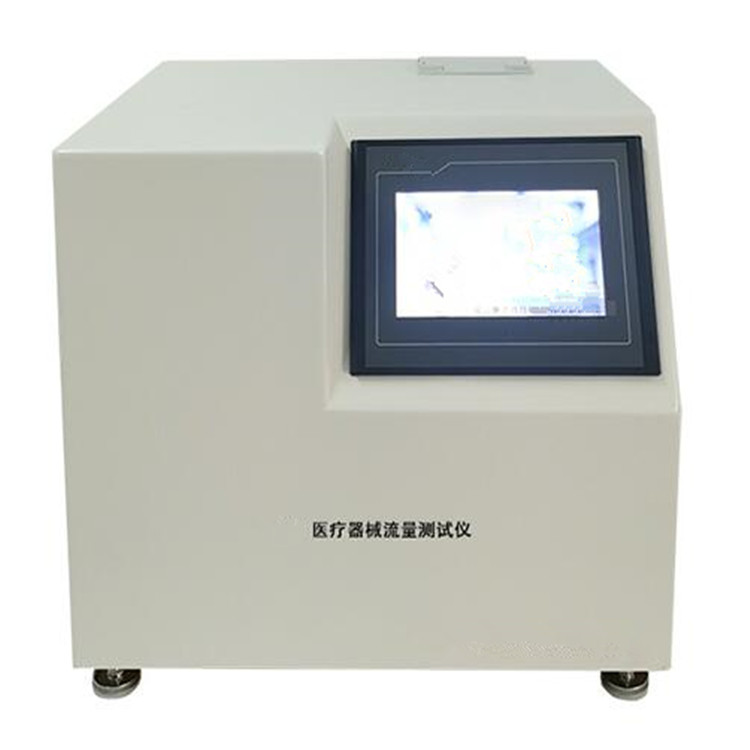

Syringe needle flow tester | Product introduction It is a device used to detect the flow of syringes. The principle is to calculate the flow of syringes by measuring the ... |
 |
Safety shoe impact testing machine | According to the criteria Bs-953.1870 EN-344. ANSI-Z41 CSA-Z195 ISO K88782 EN ISO 20344. ANSI-Z41 BS EN-344 CSA-ZI95 LD50-1994 AS/NZS 22... |
 |

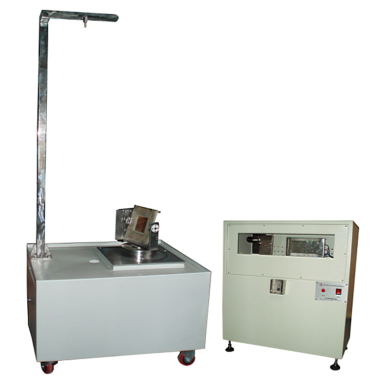

Dry and Wet Retroreflectometer | Standards EN ISO 20471:2013 ANSI/ISEA 107-2015 GB 20653-2006 GB/T 18833 Main uses Dry and wet sand abrasive wear testing machine is mainly us... |
 |

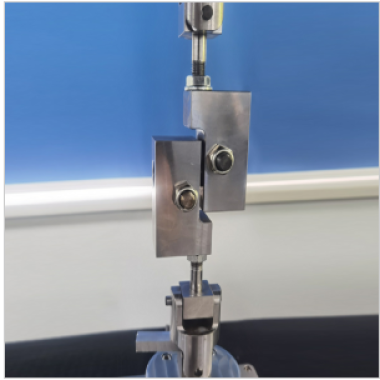

Coatings Shear Fatigue Tester | Standard YY/T 0988.13-2017 (China): Specifies shear fatigue testing protocols for coatings on metallic substrates, including load ratios, frequenc... |
