Carpet Combustibility Analyzer
Standard
BS 4790: Hot Metal Nut Method for Floor Covering Fabrics
ISO 6925: Ambient Temperature Tablet Test for Floor Coverings
BS 6307: Fire Test for Textile Floor Materials (Carpets/Rugs)
GB/T 11785: Flame Retardancy of Textile Floor Coverings
Application
Carpet Manufacturers: Validates flame retardancy of residential/commercial carpets.
Quality Inspection Agencies: Certifies products for fire safety compliance.
Fire Research Institutes: Studies material behavior under controlled ignition conditions.
Construction & Hospitality Sectors: Ensures flooring meets building fire code requirements.
Product Advantages
Dual Testing Methods: Supports both hot nut and polymer sheet ignition techniques.
Precision Observation: Sliding panel and ceiling mirror enable real-time sample monitoring.
Automated Control: PLC-driven system ensures consistent test parameters.
Safety First: Flame-retardant test chamber withstands high temperatures.
Pneumatic Clamping: Securely holds samples without manual intervention.
Easy Operation: Intuitive touchscreen simplifies method selection and data recording.
Product Features
Flame-Resistant Chamber: Constructed from heat-resistant boards (380 × 380 × 380 mm).
Hot Nut Ignition: Stainless steel nut (30g, M16) heated to 900°C in a muffle furnace.
Polymer Sheet Method: Includes 230 × 230 mm metal plate with central hole for ignition.
Sliding/Fixed Panels: 280 × 380 mm sliding panel and 100 × 380 mm fixed panel for sample access.
45° Inclined Base: Simulates real-world carpet installation angles.
Safety Interlocks: Prevents chamber access during active testing.
Technical Parameters
| Parameter | Specification |
|---|---|
| Control Mode | Automatic (PLC) |
| Test Chamber Size | 380 mm × 380 mm × 380 mm |
| Sample Clamping | Pneumatic (Adjustable Pressure) |
| Metal Plate | 230 × 230 × 6.5 mm (Central Ф205 mm Hole) |
| Ignition Nut | 30 g, M16 (Flat Diameter: 26.75–27.7 mm) |
| Sliding Panel | 280 × 380 mm (Flame-Retardant Glass) |
| Inclined Angle | 45° (Adjustable) |
| Power Supply | AC 220V ±10%, 50Hz |
| Dimensions (L×W×H) | 70 cm × 80 cm × 120 cm |
| Net Weight | 75 kg |
| Display | LED Touchscreen (Method Selection/Timer/Status) |
Send product request
Other supplier products
 |
Electrode tortuosity tester & diaphragm ion conductivity tester | Standard Electrode Tortuosity Analyzer: ASTM E1970-21 (Electrochemical Impedance Spectroscopy) ISO 18516 (Conductive Coatings – Resistivit... |
 |
Liquid Spontaneous ignition point tester | Product Description complies with GB/T 21860-2008 “Test Method for Autoignition Temperature of Liquid Chemicals” and ASTM E “Tes... |
 |
" Helmets Vertical SpacingInfrared - positioning Tester" | Purpose This measuring instrument is used to measure the vertical spacing and wearing height of safety helmets. Applicable Standard GB/T 2812-... |
 |
Positive pressure tester for medical syringes | Product introduction The positive pressure tester for syringe cohesion is composed of intelligent manipulator, force measuring mechanism, dis... |
 |
Static Tensile Tester | ApplicationUsed for static tensile test of elastic fabric performance, adopts aviation aluminum frame design, 304 stainless steel clamp, and weight... |
Same products
 |
Custom Stainless Components for OEM Applications | Seller: Yongjia County Yaokang Technology Co., Ltd. | Our stainless steel float balls are designed for float valves, water tanks, and industrial liquid... |
 |
FH-77 Dissolved hydrogen meter | Seller: Kelilong Electron Co.,Ltd | Pen type dissolved hydrogen detector / dissolved hydrogen meter: used to measure the dissolved hy... |
 |
Xenon Arc Weather Ometer | Seller: Standard International Group (HK) Limited | Get a quote： Whats/App: +86 181 0160 0864 SI4000Xenon Arc Weather Ometer utilizes a xenon lamp ... |
 |
Xenotest | Light Fastness Tester Si220 (SunTest) | Seller: Standard International Group (HK) Limited | Get a quote： Whats/App:+86 180 0160 0864 A Light Fastness Tester, or Xenon Tester, Accelerated ... |
 |

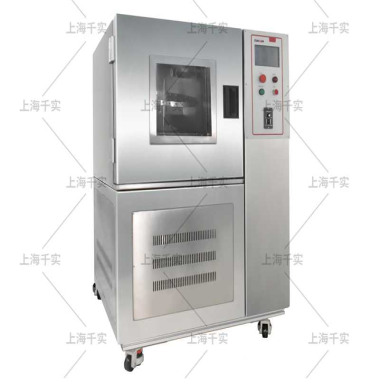

Ozone Aging Chamber | Seller: Standard International Group (HK) Limited | Get a quote： Whats/App:+86 156 1874 6768 The Ozone Aging Chamber is a precision testing instrum... |
