Titanium carbide hard alloy guide wheel manufacturer

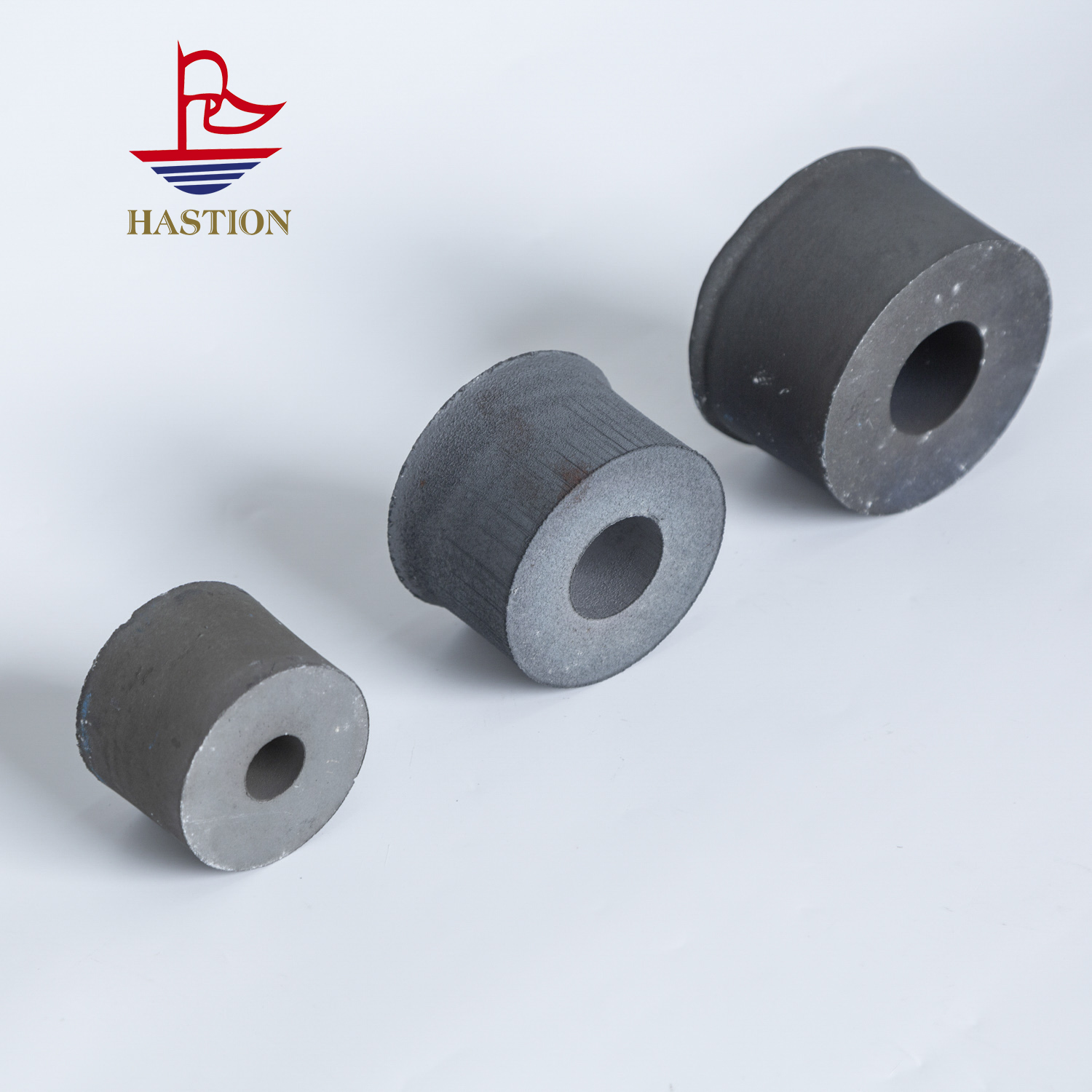

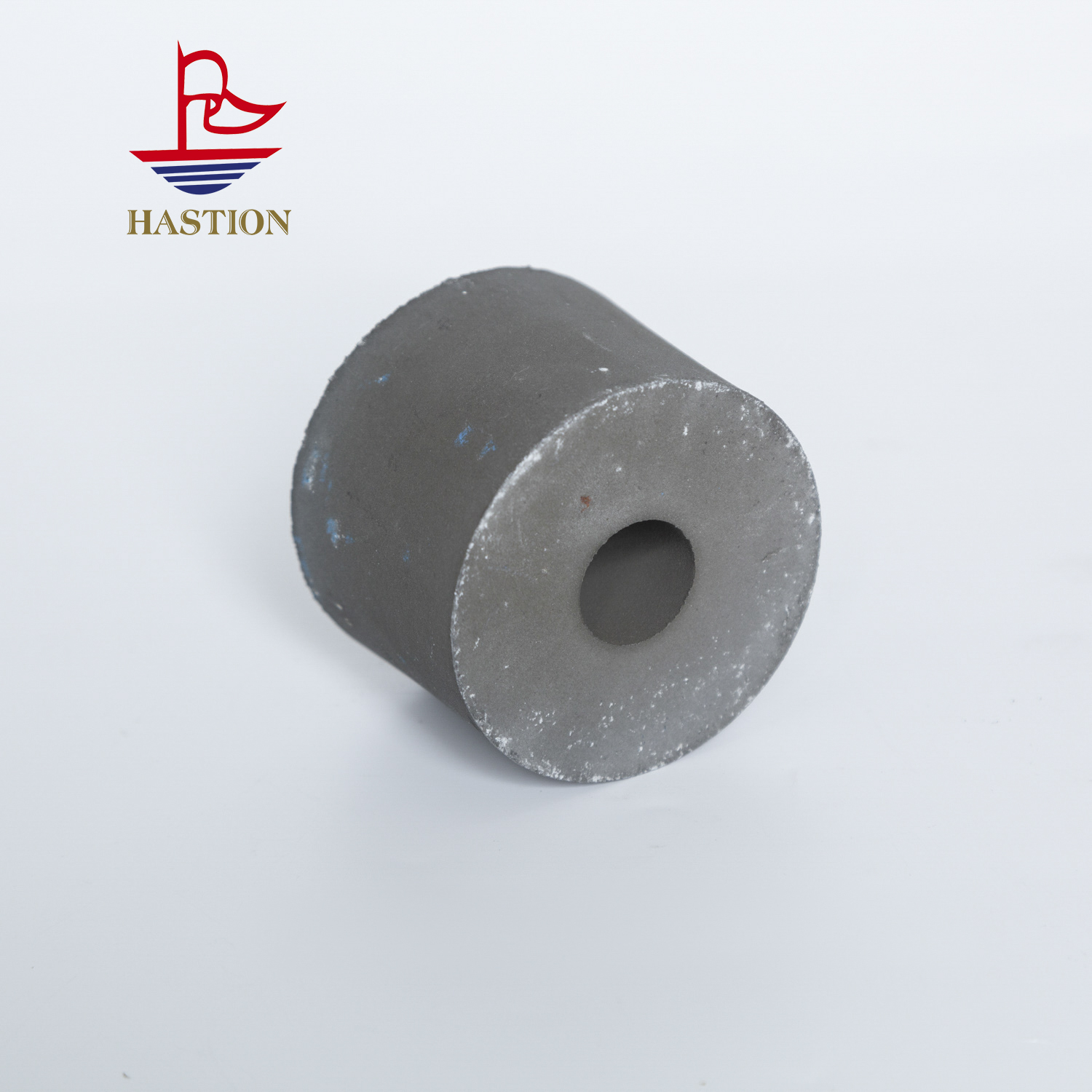

The titanium carbide hard alloy guide wheel exhibits exceptional thermal shock resistance, maintaining structural integrity even under rapid temperature fluctuations from room temperature to 300°C and back. This characteristic makes it highly suitable for intermittent manufacturing operations. The guide wheels are available in a wide range of dimensions, with diameters spanning 50 mm to 500 mm and widths ranging from 10 mm to 100 mm, enabling compatibility with various drawing and rolling equipment configurations. In optical fiber and cable production, these guide wheels ensure precise fiber alignment, maintaining signal attenuation at less than 0.2 dB/km and thereby guaranteeing high-quality communication performance. The mounting bore of the guide wheel is manufactured to high precision, with shaft fit clearance controlled within 0.005–0.01 mm, minimizing rotational vibration and enhancing guiding accuracy. Maintenance requirements are minimal, as the guide wheels do not require frequent lubrication—routine cleaning of surface contaminants is sufficient—making them ideal for continuous operation in automated production environments. In metal wire mesh manufacturing, the guide wheels contribute to consistent mesh aperture uniformity, keeping dimensional deviations within ±5%, thus meeting stringent specifications for filtration materials.
Send product request
Other supplier products
 |
High wear-resistant carbide titanium alloy guide wheel | The guide wheel is equipped with precisely machined installation holes, which can strictly control the fit clearance with the shaft within 0.005- 0... |
 |
Titanium carbide powder for tool coating | Titanium carbide powder is a gray-black, or with a metallic glass gray-black, extremely hard powder, belongs to the ceramic material with metal p... |
 |
Highly reactive titanium carbide powder | Titanium carbide TiC powder are mainly used in the steel-bonded cemented carbide, cermet components, tungsten-cobalt-titanium cemented carbide and ... |
 |
Non-standard customized service titanium carbide guide wheel | Titanium carbide carbide guide wheel has a wide working temperature range, -100℃ to 600℃ environment with stable performance, in the production o... |
 |
Precision tube drawing titanium carbide hard alloy guide wheel | Hard alloy titanium carbide guide wheels are critical guiding components used in the production of wire and tubular materials. These guide wheels a... |
Same products
 |
3D printing spherical titanium carbide powder | Seller: Zhuzhou Hastion High-Tech Materials Co.,Ltd. | This batch of titanium carbide powder (TiC) has a purity of over 99.5%, with a particle size cont... |
 |
Titanium carbide hard alloy drive wheel - Specialized | Seller: Zhuzhou Hastion High-Tech Materials Co.,Ltd. | The titanium carbide (TiC) guide wheel is fabricated via high-temperature powder metallurgy sinte... |
 |
Industrial guide wheels, titanium carbide wear-resistant alloy | Seller: Zhuzhou Hastion High-Tech Materials Co.,Ltd. | This carbonized titanium (TiC) guide wheel is formed by high-temperature sintering of 99.5% pure ... |
 |
Unfinished bar stock - heat treatable | Seller: Zhuzhou Hastion High-Tech Materials Co.,Ltd. | This high-purity titanium carbonitride (TiCN) round bar is fabricated via hot-pressing and sinter... |
 |

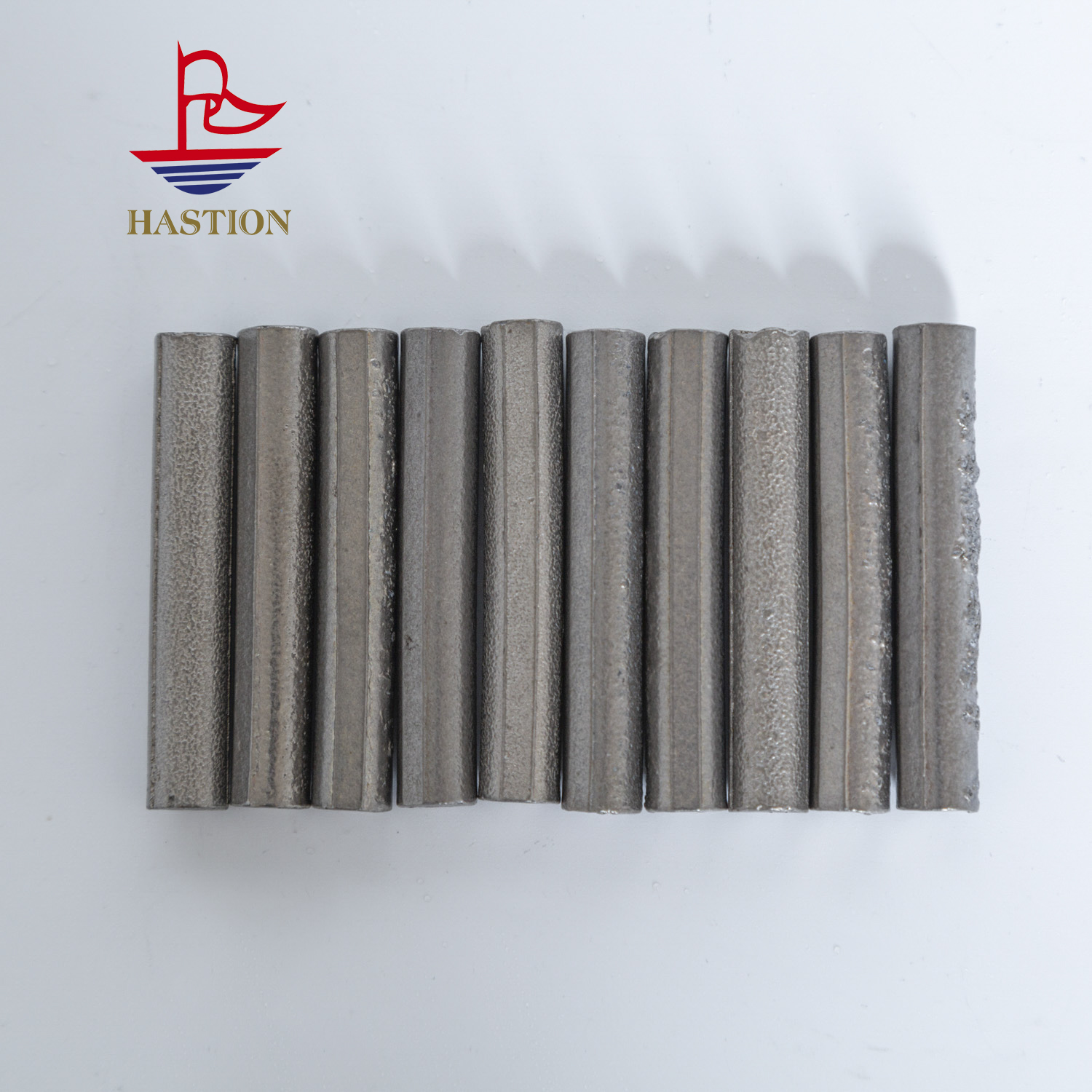

Steel-based titanium carbide hard alloy round bar | Seller: Zhuzhou Hastion High-Tech Materials Co.,Ltd. | This carbonitride round bar (TiC) is formed by hot-pressing and sintering 99.5% high-purity carbo... |
