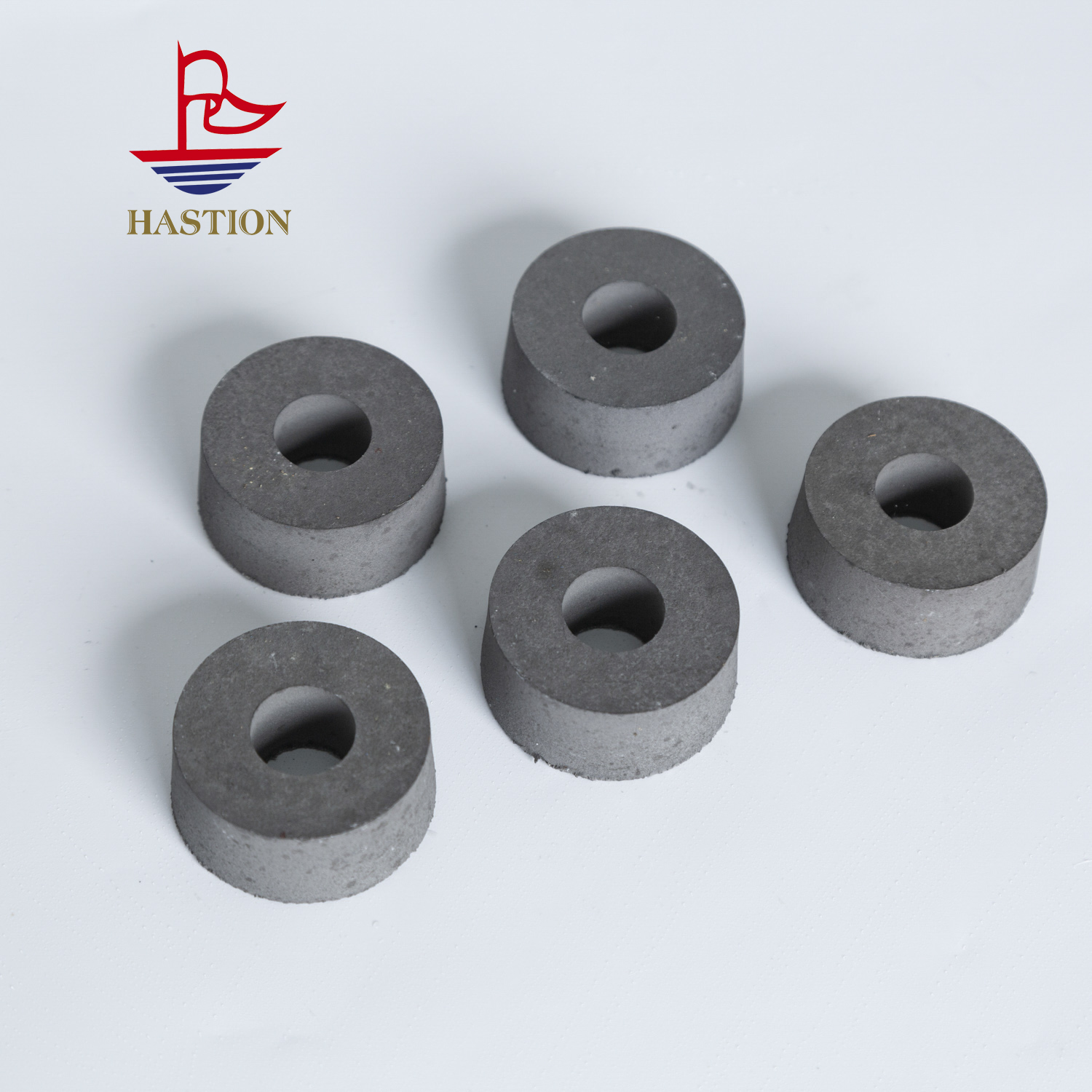

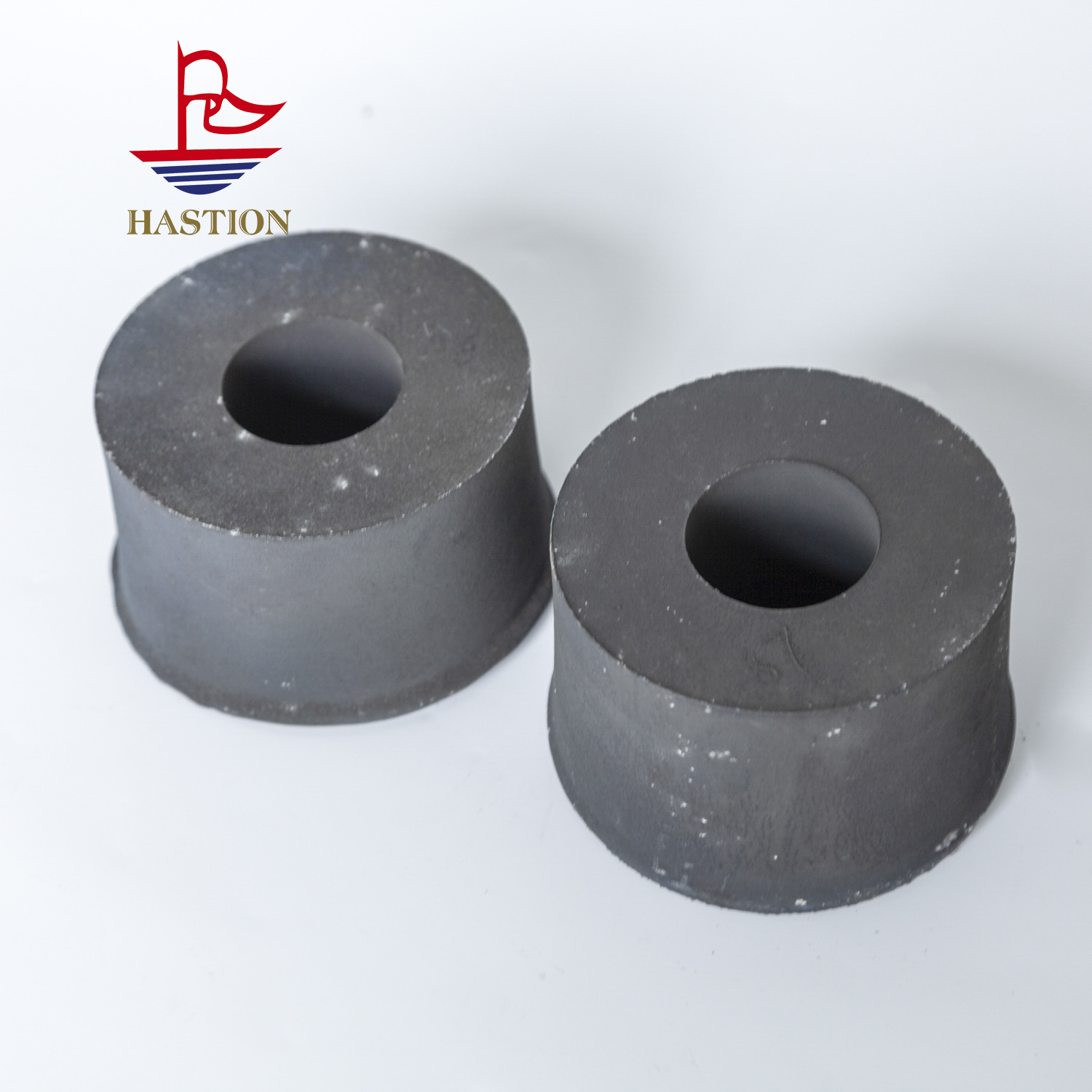

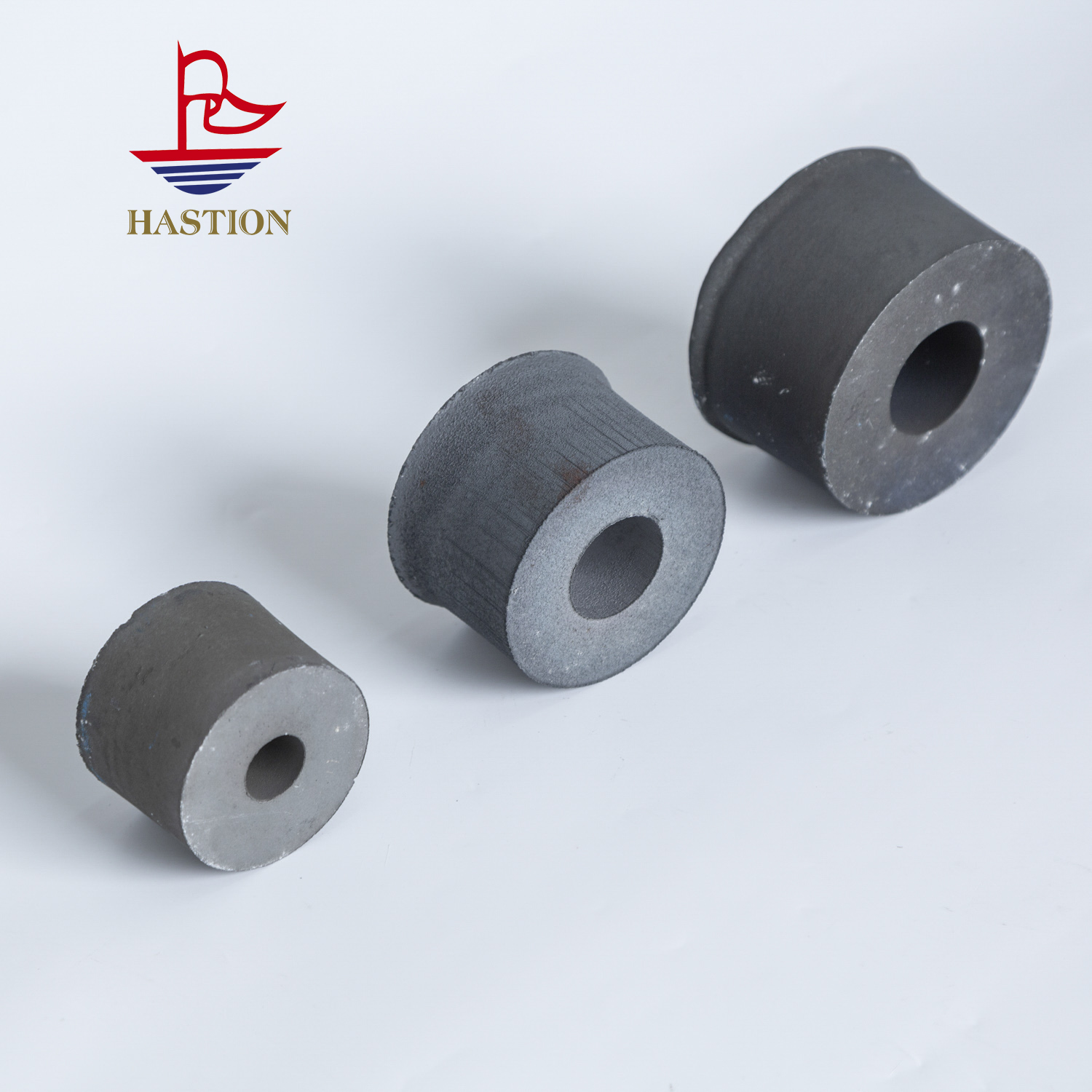

Wear-resistant titanium carbide hard alloy guide wheel
The working temperature range of hard alloy titanium carbide guide wheels is wide, and their performance is stable in an environment from -100℃ to 600℃. They can be used normally in both low-temperature frozen pipe production and high-temperature hot rolling processes. The hub and flange of the guide wheel adopt an integrated design, avoiding the problem of detachment caused by welding or bonding, and the service life can reach more than 100,000 hours. In the cable industry, it can precisely control the concentricity of the cable insulation layer, keeping the deviation within 0.05mm and ensuring the electrical performance of the cable. The hard alloy titanium carbide guide wheel has excellent thermal shock resistance. It will not crack when the temperature rises sharply from room temperature to 300℃ and then drops sharply back to room temperature, making it suitable for intermittent production conditions. The size range of guide wheels is wide, with diameters ranging from 50mm to 500mm and widths from 10mm to 100mm, which can be adapted to different types of drawing or rolling equipment. In the production of optical fibers and cables, it can precisely guide optical fibers, keeping the attenuation rate of optical fibers below 0.2dB/km and ensuring the quality of communication.
Send product request
Other supplier products
 |
Mirror polished titanium carbide guide wheel | Carbide titanium carbide guide wheel is the key guiding parts in the production of wire and pipe, which is made of high purity titanium carbide and... |
 |

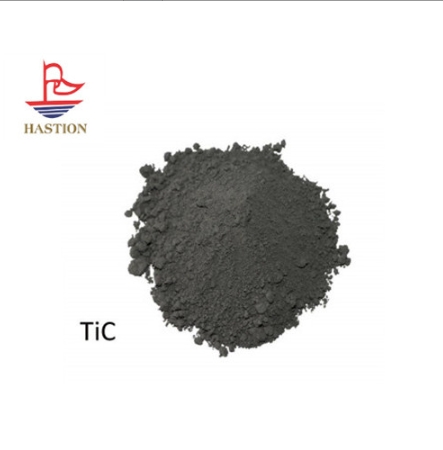

Improve the processing efficiency of silicon wafers with titanium carbide powder | Titanium carbide powder can be mixed with other carbide powders (such as tungsten carbide and vanadium carbide) to form multi-component composite p... |
 |
