Stop Bead

Stop beadis used to provide a straight edge and tidy finish at the junction or the intersection of plaster and other wall or ceiling finishes. The straight edge of the profile ensures an accurate finish line that looks beautiful. The wide flange is designed for better adhesion. Our stop bead can be divided into five kinds, they are galvanized metal stop bead, stainless steel stop bead, aluminum alloy stop bead, UPVC, vinyl stop bead and some unique design casing bead, all of them are sturdy and durable enough to work well, you can learn more with the following information.

Galvanized metal stop bead.

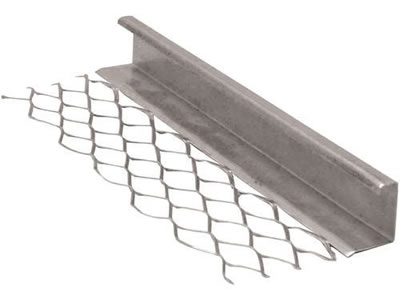

One galvanized steel expansion bead with the stainless steel wing and the big return for corner edge protection.
SB-01:The galvanized steel expansion bead is used to provide a clean finished edge and drywall protection at door, window, or other openings.
One stop bead made with the galvanized plate, it is just like the J shape.
SB-02:This kind stop bead is suitable for building external wall, it is sturdy and durable designed to offer a surface to fasten drywall.
It is a galvanized drywall stop bead designed with the scalloped flange edge and small nose.
SB-03:Galvanized drywall stop bead designed for offering abutments between plastered area and other wall finishes, it is sturdy to protect corners.
This is a plaster stop bead of Z shape, the wide flange have many round holes.
SB-04:Plaster stop bead is designed to provide sturdy and durable corner with a superb finish at door and window openings and it is easily attached with the screws or nails.

Stainless steel stop bead.

One stainless steel stop bead with an empty nose bead and wing attached with circle holes.
SB-05:Stainless steel stop bead is mainly used at the edge of two right angle profile of building, it helps to avoid the water into the wall.
One stainless steel stop bead in silver color with one full of circular hole wing and a flatten plate flange.
SB-06:Stainless steel stop bead is the most sturdy one for edge protection, it offers clean lines and flush finish and can be painted with the wall color.

Aluminum alloy stop bead.

One aluminum alloy stop bead with straight nose and short flange in yellow color shown to us.
SB-07:Aluminum alloy stop bead is rust proof and impact resistance for corner reinforcement and edge protection.
Four aluminum alloy plaster stop beads with different colors of 90 degree angle shown to us.
SB-08:Aluminum alloy plaster stop bead is rigid enough to provide straight clean lines and great protection of edge.

UPVC stop bead.

It is an UPVC render stop bead consists of a wide flange with irregular holes and a small return.
SB-09:UPVC render stop bead is processed with high dent resistance PVC and provides a rustproof, neat finish on the edge.
This is a splayed UPVC render stop bead with white color shown to us, it fits for the irregular wall.
SB-10:Splayed UPVC render stop bead is used on outside corners and the flange is perforated and striated for better adhesion.

Vinyl stop bead.

It is a vinyl plaster stop bead designed with the perforated wing and the straight nose.
SB-11:Vinyl plaster stop bead is dent resistance, rust proof to offer strong corner reinforcement and provide tidy finish for wall.
One vinyl stop bead of 90 degree angle with two wings of different shapes displayed to us.
SB-12:Vinyl stop bead is flexible enough to fit for unusual outside corner angle, it is easy to install and durable for straight clean finish.

Specification

  • Materials:galvanized steel, stainless steel, UPVC, aluminum alloy.
  • Color:white, silver, yellow, or customized.
  • Length:8 feet - 10 feet.
  • Width:3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/4".
  • Note:Special size can be customized upon clients' requirement.

Unique design stop bead/casing bead

One casing bead has one straight return bead with extra reinforcing rib and one perforated wing.
SB-13:Casing bead with extra reinforcing rib along the whole length for better adhesion, and the bead is used at all intersections of window or doorway.

Dimension:

  • Width of perforated flange:1-3/4" (44 mm)
  • Ground depth:
    • 1" (25 mm)
    • 1-1/4" (32 mm)
    • 1-1/2" (38 mm)
    • 2" (51 mm)
One bullnose casing bead with 3/4
SB-14:Bullnose casing bead is used to caulk butt joints of windows, doors or other opening areas for elegant finishing and great reinforce.

Dimension:

  • Width of perforated flange:2-1/4".
  • Radius:3/4".
  • Ground depth:1/2", 5/8", 3/4", 7/8", 1".
One archway stop bead with the unique design for application.
SB-15:Archway stop bead is used on wall corner to form straight and tidy finishing, it is more flexible with the pre-slotted flange.

Dimension:

  • Width of perforated flange:1-3/4".
  • Ground depth:
    • 1/4" (6 mm)
    • 3/8" (10 mm)
    • 1/2" (13 mm)
    • 5/8" (16 mm)
    • 3/4" (19 mm)
    • 7/8" (22 mm)
    • 1" (25 mm)
    • 1-1/4" (32 mm)
    • 1-1/2" (38 mm).
  • Length:10' (3 m).
One plaster bead with the reinforce ribs on both sides and the straight bead has many round holes.
SB-16:Plaster bead is designed with the reinforce ribs for excellent strengthening, the bead holes for better adhesion.

Dimension:

  • Ground depth:1", 1-1/2", 2", 2-1/2".
  • Width of flange:2" - 3".
  • Length:10'.
One plaster casing bead with novel shown to us.
SB-17:Plaster casing bead is designed to terminate the opening of the window and doorway, it is easily installed for time saving.

Dimension:

  • Perforated flange width:1-3/4".
  • Bead width (without return):1/2", 5/8".
  • Weep holes:5/8", 7/8".
  • Length:10'.
One picture of unpunched casing bead appeared.
SB-18:Unpunched casing bead has the function of terminating the wall, it effectively prevents the wall from easy damage.

Dimension:

  • Ground depth:
    • 3/8" (10 mm)
    • 1/2" (13 mm)
    • 5/8" (16 mm)
    • 3/4" (19 mm)
    • 7/8" (22 mm).
  • Flange width:3-1/2" (89 mm).
  • Length:10' (3 m).
One double ground casing bead has two multihole flanges and an unique ridge.
SB-19:Double ground casing bead with the two perforated flanges for more secure attachment, it is used for intersection caulking.

Dimension:

  • Overall width:3-1/4".
  • Ground depth of both sides:
    • 1-1/4", 5/8"
    • 1-1/2", 3/4".
One plaster bead with one round hole wing and a rugged arris shown here.
SB-20:Plaster bead is applied for assisting in seeding of adjoining stucco, it caulks all intersections.

Dimension:

  • Overall width:1-3/4".
  • Ground depth of both sides:
    • 3/4", 1/2"
    • 7/8", 5/8"
    • 1-1/4", 5/8"
    • 1-1/2", 1/2"
    • 1-1/2", 3/4".
One casing bead with the long perforated flange and short return displayed here.
SB-21:Long flange casing bead can caulk all intersections, flange is straight to assist in bonding.

Dimension:

  • Flange width:5" (127 mm).
  • Ground depth:
    • 1/2" (13 mm)
    • 5/8" (16 mm)
    • 3/4" (19 mm)
    • 7/8" (22 mm)
    • 1" (25 mm)
    • 1-1/4" (32 mm)
    • 1-1/2" (38 mm)
    • 1-3/4" (44 mm)
    • 2" (51 mm).
  • Length:10' (3 m).
One stucco casing bead with the straight bead and multihole flange shown to us.
SB-22:Stucco casing bead is used to protect the corner edge from damage, it also eliminates gap of intersections.

Dimension:

  • Width between two flanges and flange with short return:
    • 1" (25 mm), 1/4" (6 mm)
    • 1" (25 mm), 3/8" (10 mm)
    • 1" (25 mm), 1/2" (13 mm)
    • 1-1/2" (38 mm), 1/4" (6 mm)
    • 1-1/2" (38 mm), 3/8" (10 mm)
    • 1-1/2" (38 mm), 1/2" (13 mm)
    • 2" (51 mm), 1/4" (6 mm)
    • 2" (51 mm), 3/8" (10 mm)
    • 2" (51 mm), 1/2" (13 mm).
  • Length:10' (3 m).

Feature

  • Various types for different wall types.
  • Perforated wing increases the reinforcement of the corner.
  • The material is environmental that can not harm to people's health.
  • Used to offer straight clean finish on the edge of plaster wall.
  • Simply fastened with the nails and other fasteners.
  • Rust proof and impact resistance to protect the corner edge.
  • Products finished edge at panel terminations.

Application
It is mainly used at the door or window opening, or other building openings.

Packing
Plastic film packing, water proof carton packing and wooden box packing, or as client request to packing.

Some stop beads are packed with the plastic film.
Plastic film packing is convenient and simple.
