Multifunctional Dynamic Scratch and Wear Tester
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Application
Primary applications
Scratch, wear, and impact resistance testing for materials and surfaces
Evaluation of automotive interior materials, polymers, and metal coatings
Laboratory research and product quality assurance Testing of both flat and curved samples for industrial or consumer products
Typical tested products
Automotive interior panels and trims
Metal and polymer-coated components
Consumer products with protective surface coatings
Laboratory-prepared material samples
Standards
(1) BMW GS 97034-8 – Automotive interior materials surface tilt test specification
(2) BMW GS 97034-9 – Automotive interior materials surface scratch test specification
(3) GB/T 23989-2009 – Determination of scratch resistance of coatings
(4) GB/T 1768-2006 – Paint film wear resistance measurement
(5) GB/T 12444-2006 – Metallic materials wear test method
(6) ISO 7148 – Metallic materials – Friction and wear test method
(7) ASTM G171 – Scratch hardness determination of materials
(8) ASTM G133 – Reciprocating sliding wear test method
(9) ASTM G99 – Pin-on-disk friction and wear test method
(10) ASTM D7027 – Evaluation of scratch resistance of polymer coatings
Parameters
| Test Function | Technical Specification |
|---|---|
| Test Force Range | 0~30 N (adjustable in 1 N increments) |
| Stroke Length | Up to 120 mm |
| Test Line Speed | Up to 1500 mm/s |
| Cycle Count | 0~999.999.999 (programmable) |
| Sample Type | Sample A: Disk edge, radius 2.5 mmSample B: Pin tip |
| Working Stage | X-Y working test stage |
| Power Supply | AC 220 V, 50 Hz, 750 W |
Features
Dual control system: PLC + Windows, allowing system switching.
User-friendly interface: 12-inch embedded industrial computer with Chinese/English option.
Supports Wi-Fi connection to printers for automated reporting.
Real-time curve display for monitoring scratch and wear performance.
Capable of testing both flat and curved samples with interchangeable test heads and media.
Flexible programming for test mode, speed, stroke, and applied load.
Supports both wet and dry testing methods.
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Combustion Flue Gas Treatment System，ISO 14001 combustion flue gas cleaning and treatment system | Whats/App: +86 156 1874 6768 Web: standard-groups.com The Combustion Flue Gas Treatment System is designed to purify flue gases generated during ... |
 |
Solid electrolyte analysis system | The Solid Electrolyte Analysis System is a precision testing platform designed to evaluate the ionic conductivity, electrochemical impedance, and i... |
 |
Pipe coating scratch tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Product Introduction: Paint and varnish scratch resistance tester, also known as scratch r... |
 |

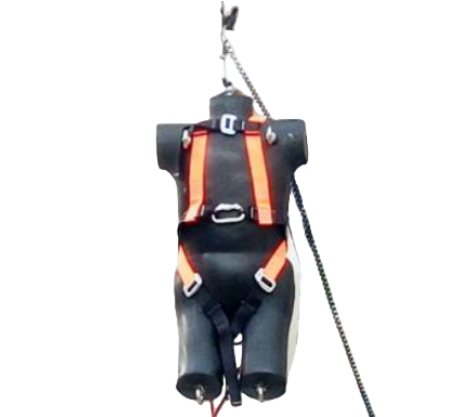

High Precision Rubber Test Dummy for Safety Harness Evaluation | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards GB6095-2021 Fall Protection Safety Harness GB/T6096-2020 Fall Protection Safety... |
 |
