Particle Abrasion Tester

The Particle Abrasion Tester (Q-4D) is a precision instrument designed to measure the wear rate of granular materials such as catalysts, molecular sieves, adsorbents, activated alumina, and wood activated carbon. Based on national standards, it provides a controlled and repeatable method for evaluating particle durability under simulated industrial conditions. The Q-4D improves upon its predecessor (Q-3) with enhanced performance, optimized structure, and greater operational stability, making it suitable for chemical, pharmaceutical, petroleum, and material research laboratories.

Application

(1) Determining wear rate of fertilizer catalysts, molecular sieves, and adsorbents

(2) Evaluating the mechanical durability of industrial activated alumina

(3) Testing strength and abrasion resistance of wood activated carbon

(4) Quality control in chemical and pharmaceutical production

(5) Research and development for new granular materials with improved durability

(6) Comparative testing of particle materials to optimize process efficiency

Standards

(1) GB 3636-83 — Method for determination of wear rate of catalysts, molecular sieves, adsorbents

(2) GB 10504-2008 — 3A Molecular Sieve

(3) HG/2524-2011 — 4A Molecular Sieve

(4) GB 13550-92 — 5A Molecular Sieve

(5) GB/T 12496.22-90 — Test method for strength determination of wood activated carbon

(6) HG/T 3927-2007 — Industrial activated alumina wear testing

(7) ISO 3270 — Determination of particle size distribution and durability of granular materials (international standard reference)

(8) ASTM D4179 — Standard test method for wear of granular catalysts

Features

(1) Stepper motor with single-chip microcomputer control for precise, stable, and uniform grinding speed

(2) Low noise operation for improved laboratory comfort

(3) LED indicators display real-time working status clearly and intuitively

(4) Adjustable speed settings (25–100 r/min) to accommodate different material types and test requirements

(5) Functions include preset speed, alarm settings, and automatic pause for enhanced safety and control

(6) Dual grinding cylinder sizes (Φ36×300 mm and Φ50×300 mm) for versatility

(7) High stability and low failure rate, ensuring long-term reliable operation

(8) Simple and intuitive operation, suitable for routine laboratory and industrial testing

Parameters

Item	Description
Speed range	25, 30, 40, 50, 60, 80, 100 r/min (adjustable)
Counting range	0–9999 r
Grinding cylinder inner size	Φ36×300 mm; Φ50×300 mm (two each)
Power supply	AC 220V ±10%, 50 Hz
Noise	Low, <60 dB(A)
Control system	Single-chip microcomputer with stepper motor
LED indicators	Display operational status, speed, and alarms
Overall dimensions	400 × 300 × 450 mm (L × W × H)
Net weight	28 kg

Accessories

(1) Grinding cylinders (Φ36×300 mm and Φ50×300 mm)

(2) Sample loading trays

(3) Power cord and fuse

(4) User manual

(5) Calibration tools

Test Procedures

(1) Select and install the appropriate grinding cylinder for the material to be tested

(2) Load the sample material into the grinding drum evenly

(3) Set the desired rotation speed using the touch interface or control knob

(4) Preset the test count or duration, and enable alarm/pause settings if required

(5) Start the test and monitor LED indicators for real-time operational status

(6) At the end of the test, remove the sample and evaluate the wear rate based on weight loss or particle size change

(7) Record the results and repeat as necessary for additional samples

Maintenance Information

(1) Clean the grinding cylinders and drum after each test to prevent contamination

(2) Periodically check the stepper motor and electronic control system for proper function

(3) Inspect LED indicators and connections for reliability

(4) Replace worn grinding cylinders to maintain consistent test results

(5) Store the instrument in a clean, dry environment to protect electrical components

Другие товары поставщика

	Gas Oxidizing Property Tester	Product Description Conforms to ISO 10156-2010 “Gases and Gas Mixtures Selection of Cylinder Valve Exhaust Ports by Determination of Combust...
	Alcohol Abrasion Testing Machine (for Alcohol abrasion tester)	Product Introduction: This machine adopts variable convex shaft structure, diameter Japanese original ball drive, so that the workpiece can move w...
	Safety Helmets Impact and Penetration Resistance Tester	Standard GB/T 2811-2019(China’s national standard for helmet safety and impact resistance) GB/T 2812-2006/XXXX(Testing methods for impact...
	Safety Helmet Roll-off Testing Equipment	The safety helmet retention test equipment is a device used to evaluate the stability of a helmet's fit when subjected to impact. By simulating the...

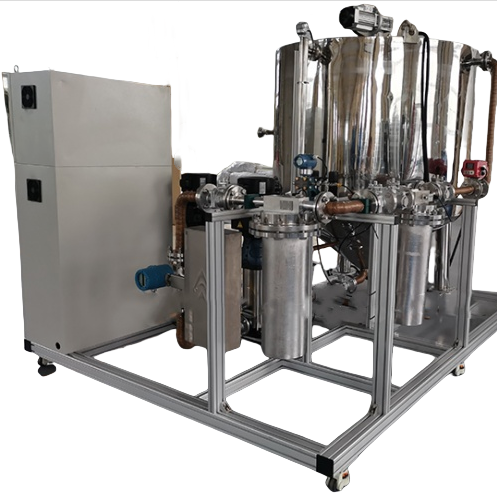

	Dynamic Filter Life Cycle Testing Equipment	Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications Mainly used for performance testing of filter elements (such as hydraulic oil...
