Vertical low temperature cold resistance tester
Product description:
This machine is used to test finished shoes, rubber, plastic, soles, synthetic leather and other cold resistance degree to understand the material or finished products to adapt to low temperature climate or cold areas, this machine is made of stainless steel and can be installed with a variety of resistant fixtures to apply to different requirements.
Standards:
ASTM-D1790. D1593.1052. JIS-K6545. HB-T2877. CNS-7705. ISO 20344. GB/T20991-2007
Product Specifications:
1. Inner and outer box material: stainless steel #304
2. Controller: touch screen control
3. Temperature range: (1) normal temperature -30℃ (2) normal temperature -50℃(optional)
4. Optional inner box action: leather flex fixture (optional to install finished shoes with bending resistance, outsole zigzag resistance fixture)
5. Protection device: thermal protection stop, leakage protection stop overtemperature protection, overload protection and other functions
6. Control accuracy: ±0.3℃
7. Distribution uniformity: ±0.1℃
8. Cooling speed: from room temperature to -30℃
9 Refrigerant: R404 environmental refrigerant
10. Compressor: original fully hermetic
11. Compressor starting delay: 5min
12. Power consumption: (4-6)KW
13. Insulation material: rigid foam and glass wool
14. Counter: LCD,0——999.999
15. Window: (210×35×270)mm, two vacuum layer
16. Window light: P1 light,5W
17. Power supply: AC380V 50Hzor1 AC220V 50HZ
18. Motor: no belt multi-import gear reducer motor
19. Inner box size: (600×600×550) mm
20. Volume: (110×105×160) cm
21. Weight: 200kg
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Artificial turf wear tester | An artificial turf wear tester is a device specifically designed to evaluate the wear resistance of artificial turf. It tests the wear performance ... |
 |
Falling Sand Abrasion Test machine | The sand abrasion tester is a specialized testing device used to evaluate the abrasion resistance of material surfaces. It simulates the impact and... |
 |

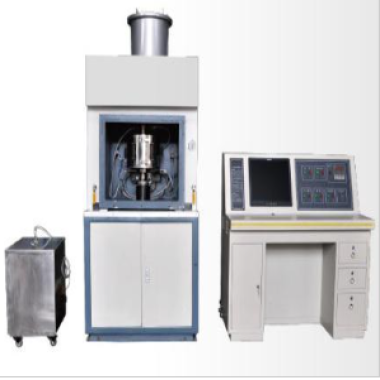

High temperature vacum friction & wear tester | Main uses: High temperature vacuum friction and wear testing machine is mainly used to study the friction and wear characteristics of materials in ... |
 |
Whole shoe breathability and heat preservation testing machine | Standard SATRA TM376: Thermal insulation testing of footwear with sock integration. SATRA TM386: Water vapor permeability assessment for athlet... |
 |

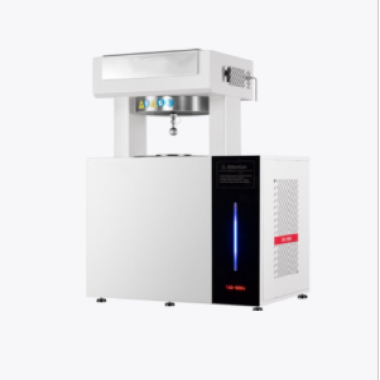

Adiabatic Accelerated Calorimeter | Product Description Adiabatic Accelerated Calorimeter determines the thermal behavior of samples under adiabatic conditions by keeping the tempera... |
