Flame retardant paper and board burning tester
Technical parameters
1. Ambient temperature :-10℃——30℃
2. Relative humidity :{<}85%
3. Power supply voltage and power :220V 10% 50HZ power less than 100W
4. MCU control, digital display automatic timing
5. Manual ignition Bunsen burner on the style flame time 12s, accuracy is 0.01s
6. Afterflame, afterglow time: maximum 0-99M99S
7. The inner diameter of Bunsen burner is 10mm and 0.2mm
8. The Bunsen burner can be tilted in the range of 0-45° (8 gears per 5° gear)
9. Bunsen burner blue flame height :15mm-175mm can be adjusted, equipped with flame height scale
10. Automatic ignition time of Bunsen burner: arbitrary setting
11. Digital display continued flame, burning flame time
12. Gas source: liquefied propane purity {>}95%
13. Appearance size :670x300x800mm
14. Style size :210mmx70mm
15. Weight of the instrument :40kg
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
Send product request
Other supplier products
 |

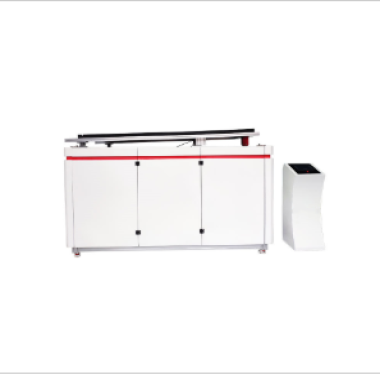

Strength Tester for Lead - end of Photovoltaic Modules | Standard IEC 61215-2:2016: Terrestrial Photovoltaic (PV) Modules – Test Requirements for Electrical and Mechanical Components CE Certific... |
 |
Rubber Hose Outer Coating Abrasion Testing Equipment | Product Introduction: Rubber hose outer coating Wear testing machine for hydraulic hoses and other similar types of hoses with fabric or steel wir... |
 |
Helmets Designated Protection Areas Tester | The helmet designated protection area testing device is a piece of equipment used to mark test points and lines on helmets, and is suitable for all... |
 |
Medical Mask Synthetic Blood Penetration Tester | Medical Face Mask Synthetic Blood Penetration Resistance Tester is mainly used in the blood penetration test of masks, which ensures that medical m... |
 |

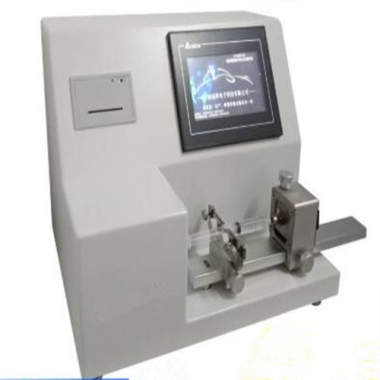

Syringe Sealing Positive Pressure Tester | The Syringe Sealing Positive Pressure Tester is a precision instrument designed to evaluate the tight-fitting performance of disposable syringes. I... |
