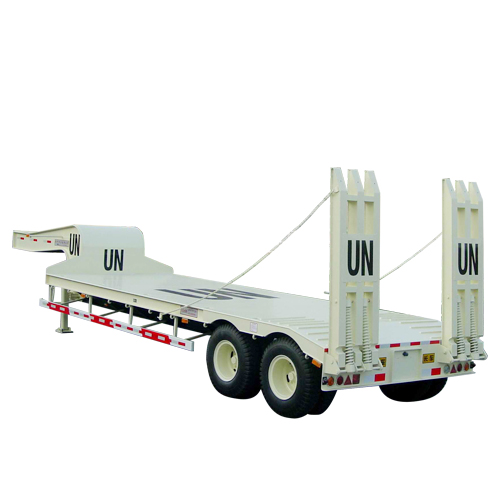

Low Flatbed Semi-Trailer
Low Flatbed Semi-Trailer
Specifications:
1) Dimensions and weight:
a) Nominal dimensions (L x W x H): 13, 000 x 3, 000 x 1, 750mm
b) King pin height: 1, 300mm
c) Laden height: 1, 200mm
d) King pin setting: 500mm from rear face of front bolster
e) Max. payload: 59, 000kg
f) Tare weight: 9, 000kg±2%
2) Running system:
a) Suspension system: leaf spring or airbag suspension
b) Axle: various axles like BPW, YORK and FUWA with various bearings
d) Tire: various brands of bias tires or radial tires
e) King pin: forged steel, 2" or 3.5", welded or bolt-in
f) Landing gear: 24T, 25T
3) Chassis:
a) Main beam: high-tensile steel
b) Surface preparation: shot blast
c) Painting: zinc-rich primer and modified urethane topcoat as customers' choices
4) Brake system:
a) Double line air brake system with single air tank, standard connectors on
front bolster
b) Optional anti-lock brake system
5) Electrical system: standard electrical equipment
6) Accessories: rear loading ladderFeatures:
1) Heavy duty and goose neck construction with loading ladder
2) All major structural steel parts of high-tensile steel
3) Entire chassis shot-blasted
4) Paint system comprising zinc rich primer and urethane topcoat paint
