TH-800 HORIZONTAL CNC MACHINING CENTER
TH-800 HORIZONTAL CNC MACHINING CENTER
Product Description
The Horizontal Machining CenterSeries features an innovative box-type structural design with a horizontally oriented spindle, a high-rigidity worktable, and a precision rotary mechanism. Engineered for high-efficiency machining of medium to large complex components, this series is widely recognized for its superior stability, precision, and powerful cutting capabilities. It is ideal for demanding applications in aerospace, energy equipment, heavy machinery, and more.
CNC Horizontal Machining CenterCharacteristics
● The casting is made of resin sand. After aging treatment, the internal stress can be fully eliminated to ensure good accuracy retention.
● Each axis guide rail adopts the form of a sliding guide rail, with high positioning accuracy, large bearing capacity, good cutting vibration resistance, and high accuracy and stability.
● Adopting imported ball screw, it has strong load-bearing and torsion resistance, fast response speed and good low-speed characteristics.
● The main shaft is imported from Taiwan, ensuring high speed, high precision and high output power.
Specifications
|
Item |
unit |
TH-800 |
|
Worktable area |
mm |
2100*800 |
|
Worktable maximum loading |
kg |
3000 |
|
T-Slot(slot*width*distance) |
mm |
5-20*150 |
|
Spindle nose taper |
BT |
BT50 |
|
X/Y/Z axis travel |
mm |
1600/1070/900 |
|
Distance between spindle end face and worktable end face |
mm |
150-1220 |
|
X, Y, Z axis gauge specifications |
MSA45S (six sliders) / MSA55S (six sliders) / MSA55S (six sliders) |
|
|
Spindle Speed (Belt type/Direct Connection) |
rpm |
6000 |
|
Tool magazine capacity |
T |
24 |
|
X/Y/Z axis fast displacement |
m/min |
12*12*12 |
|
Cutting feed speed |
m/min |
1-8000 |
|
Repeated positioning accuracy |
mm |
土0.003 |
|
Machine weight |
kg |
12000 |
As our company is constantly improving its products, we reserve the right to change the design, specifications and configuration at any time without prior notice. Pleasecontact usif the specifications have changed!
Send product request
Other supplier products
 |

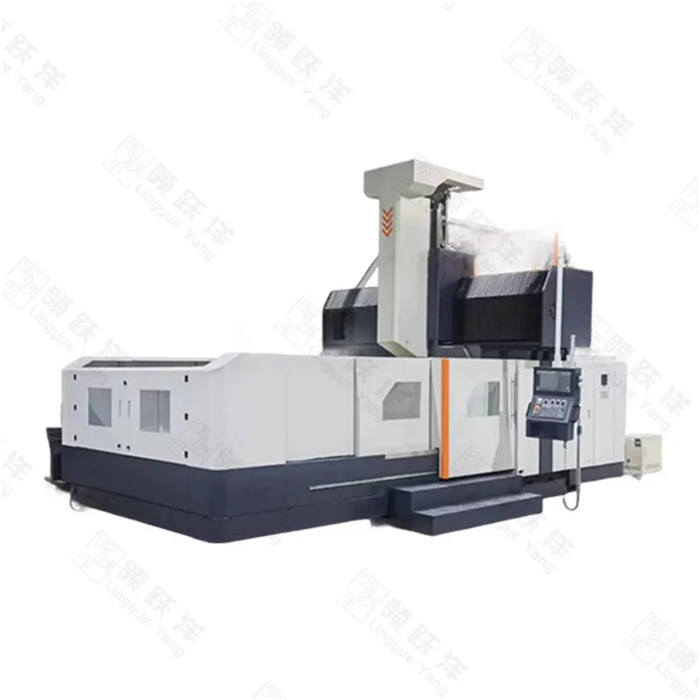

VH HIGH-SPEED GANTRY PROCESSING | VH HIGH-SPEED GANTRY PROCESSING Product Description ●Powerful cutting capability combined with high precision and performance makes insert and ar... |
 |

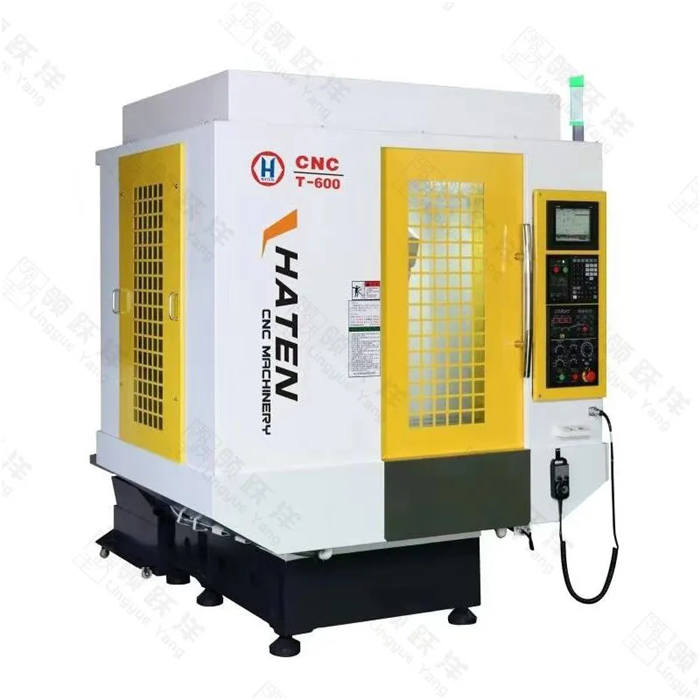

T-600 HIGH SPEED DRILLING AND TAPPING MACHINE SERIES | T-600 HIGH SPEED DRILLING AND TAPPING MACHINE SERIES Product Description The first choice for batch processing of precision parts in die casting,... |
 |
