Spray Rating Tester
Standards:
ISO 4920. BS EN 24920. BS 3702. GB/T 4745. AATCC 22. M&S P23. NEXT 23
Applications:
Spray Rating Tester is used to determine the surface wetting resistance of fabrics.
Information:
The Spray Testercomprises a metal framework allowing distilled water to be sprayed through a nozzle onto a test specimen at 45° and 150mm below. The appearance of the specimen is compared against an optional photographic scale to rate.
Features:
1. The instrument structure is simple, mainly by the main frame, funnel, nozzle, sample holder and sample holder;
2. Nozzle have a total of 19 aperture evenly distributed, the aperture required by the standard custom. 250ml of water poured into the funnel can flow out of the nozzle within 25-30s;
3. The racks on the upper edge of the racks are at a 45 ° angle to the horizontal;
4. The center of the upper edge of the sample holder ring, ie the distance from the center of the sample to the nozzle, is 150 mm.
Parameters:
1. Structure: stainless steel;
2. Surface treatment: painting;
3. Dimensions: 230 × 250 × 500mm (length × width × height);
4. Weight: 5kg (11lb).
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
Send product request
Other supplier products
 |

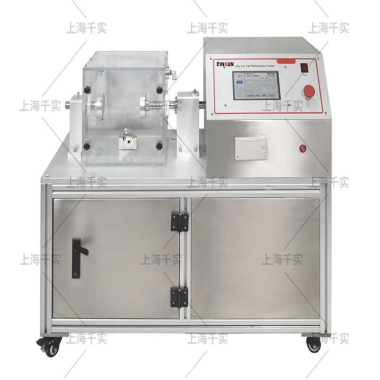

Dry fallen wadding tester G275 | G275 Dry fallen wadding tester, The tester is used to evaluate the fallen wadding test of non-woven fabrics under dry conditions, and is mainly app... |
 |

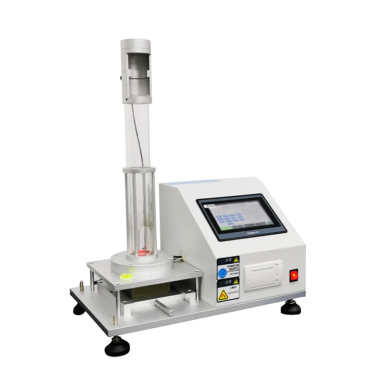

Ball Rebound Tester | Standard: DIN EN ISO 8307 ASTM D 3574 Main application scope and functions: This machine is designed and manufactured according to GB/T6670-97.... |
 |
UV Weathering Testing Machine 丨UV Weathering Tester | Features and Benefits 1.Accelerated Aging Simulation Simulates months or years of outdoor UV exposure in just a few days or weeks. Ideal for as... |
 |
Sliding Bearing Fatigue Testing Machine | The sliding bearing fatigue testing machine is an important testing device, mainly used to evaluate the fatigue life and performance of sliding b... |
 |

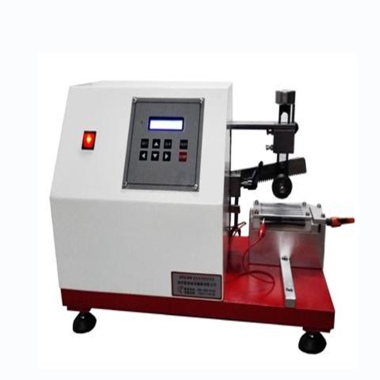

Glove Cut Resistance Tester | Product Introduction: The machine is used to test the cutting resistance of gloves. Under the specified load, the blade cuts the sample to measure... |
