VH HIGH-SPEED GANTRY PROCESSING
VH HIGH-SPEED GANTRY PROCESSING
Product Description
Features of3 Axis Gantry Vertical Machining Center
●Powerful cutting capability combined with high precision and performance makes insert and armoring operation easy.
●Optional spindle drive adopts full-gear two-stage transmission to provide high torque output and excellent cutting performance. Heavy and rigid body structure, showing a unique heavy cutting performance.
●The main structure gradually adopts resin sand cast iron, reflecting cutting stability and high precision, high efficiency, heavy cutting. The main shaft and transmission gear adopt forced cooling to reduce temperature and improve accuracy.
Application Industry ofGantry Machining Center
Aerospace industry: It is very suitable for the manufacture of parts requiring high precision and complex geometry.
Automotive manufacturing industry: It is suitable for the production of key parts such as engine components and chassis components.
Mold manufacturing industry: It can accurately process various molds, including plastic molds, die-casting molds, etc.
Heavy machinery manufacturing industry: It is an ideal choice for companies that need to process large or heavy workpieces.
Specifications
|
name say |
unit |
Ginseng number |
|
|
journey |
X -axis travel |
mm |
3200 |
|
Y -axis travel |
mm |
2500 |
|
|
Z -axis travel |
mm |
900 |
|
|
Gantry width |
mm |
2200 |
|
|
Spindle nose to work table |
mm |
200~1100 |
|
|
Workbench |
Workbench size |
mm |
30 00x 1900 |
|
Workbench load-bearing |
Kg |
6000 |
|
|
T-slot (number of slots - slot width * spacing) |
mm |
9 - 2 0 x 200 |
|
|
Spindle |
Spindle taper hole (model) |
- |
BT50 |
|
Motor short-time rated power |
kw |
15/18.5 |
|
|
Motor torque |
Nm |
220 |
|
|
Speed range |
r/min |
6000 |
|
|
guide |
X-axis rail |
mm |
55# |
|
Y axis rail |
mm |
45# |
|
|
Z axis rail |
mm |
Hard rail |
|
|
speed |
Cutting feed speed |
mm/min |
1- 8000 |
|
X , Y, Z axis fast moving speed |
m/min |
12/20/10 |
|
|
Tool magazine (optional) |
Tool magazine method |
- |
Knife Arm |
|
Tool magazine capacity |
T |
twenty four |
|
|
Maximum tool length |
mm |
350 |
|
|
Maximum tool weight |
Kg |
18 |
|
在线联系供应商
Other supplier products
 |

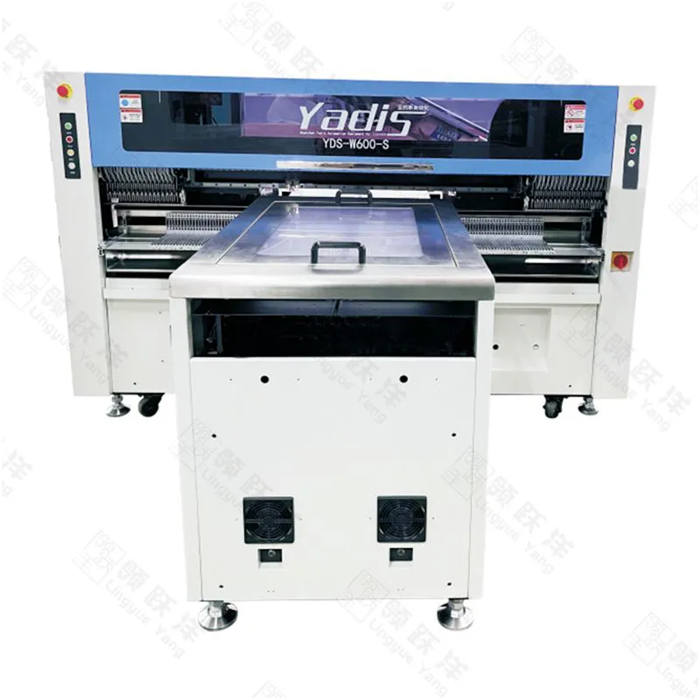

W600S SMT MACHINE | W600S SMT MACHINE Product Description 1, The SMTmachinemounting head for double track double suction rod, four module structure, can be independe... |
|
|
