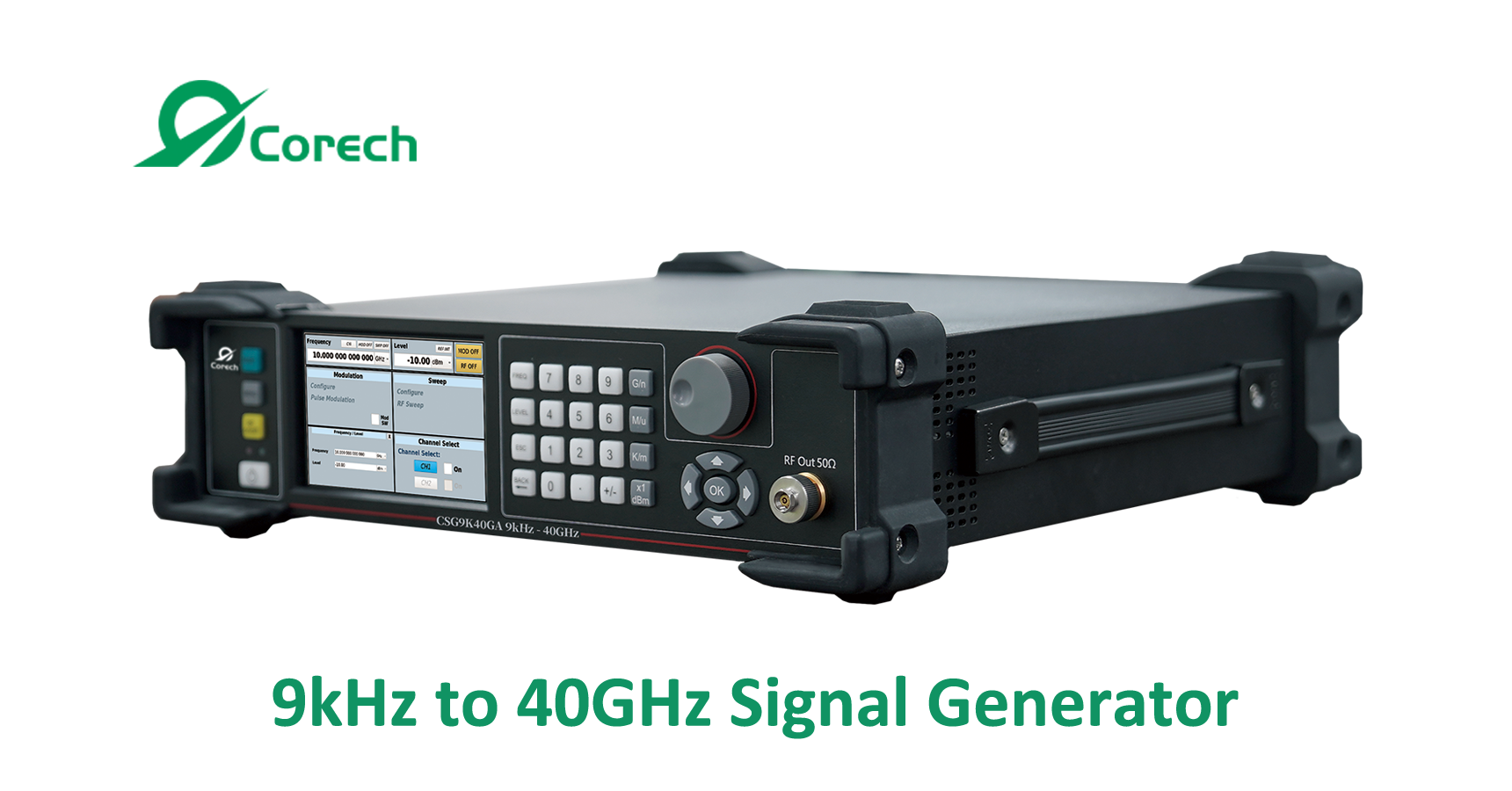

CSG9K40GA Signal Generator
CSG9K40GA Signal Generator
Freq. Range: 9kHz-40GHz
Freq. Resolution: 0.001Hz
Operating Mode: CW / Sweep
Internal Ref. Aging Rate: ±0.5ppm / year
Initial Calibration Accuracy: ±0.1ppm
Switching Speed：10ms@Sweep ，50ns@Pulse
Output Power: -120dBm to +17dBm@20GHz
Harmonics: -55dBc@10GHz
1/2 Harmonics: -90dBc@10GHz
Spurious (Freq. offset: 5KHz Min.) : -80dBc@10GHz
Pulse Pulse Width
SSB Phase Noise at 1GHz: -126dBc / Hz@1kHz
Control: Keyboard, Touchscreen, SCPI
Weight: 8.5 kg
Dimensions: 360 × 360 × 89 mm
