M-100 Portable Safety Valve Grinding Machine
M-100 Portable Safety Valve Grinding Machine
Application:Cone globe valve seat,Flat Globe valve seat.Grinding scope:Cone globe valve seat: Φ20~65mm,angle 60°、75°、90°Flat globe-valve seat: Φ20mm-225mmMotor power: 750WRated Voltages: 220VAllowed adjustable length: L≤250mmOperating weight: 3kg
M-100, M-100A, M-100C
Portable Valve Grinding Machine
- Model M-100 portable valve grinderis developped for the maintenance of valves as the new generation product. It is mainly used for grinding DN20-150mm flat Globe valve ,cone valves and safety valves,The product can reduce labor intensity, improve labor efficiency and lower maintenance costs.It is widely used in the industries such power generation, petroleum, chemical and metallurgy .It has the following characteristics:Light, compact, and easy to carrySplit-type assembly makes installation easy and fastEasy to be usedHigh efficiency,good grinding qualityMaintenance in the site without valve disassembles and assembles
- china portable valve grinding machineTechnical Parameter
|
Item |
M-100 |
M-100A for Flat Globe Valve |
M-100C for Cone Valve |
|
Grinding Range（mm） |
DN20-150mm Offline Gate Valve, Globe Valve |
Dn20--150mm Flat Globe Valve,Safety Valve, Flat Globe Vavle Seat |
DN20-100mm Cone-valve Valve seatangle: 30°,40°,60°,75°,90°can be Selected |
|
Voltage（V） |
220 |
220 |
220 |
|
Power（W） |
750 |
750 |
750 |
|
Frequency（HZ） |
50 |
50 |
50 |
|
Max Grinding Depth（mm） |
250 |
250 |
250 |
|
Gross Weight（kg） |
26 |

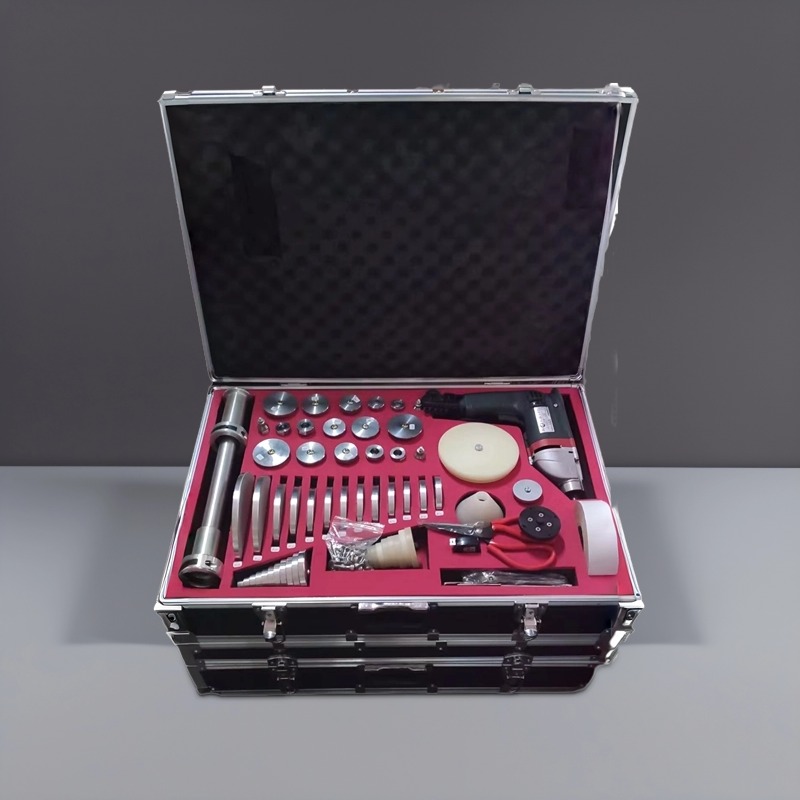

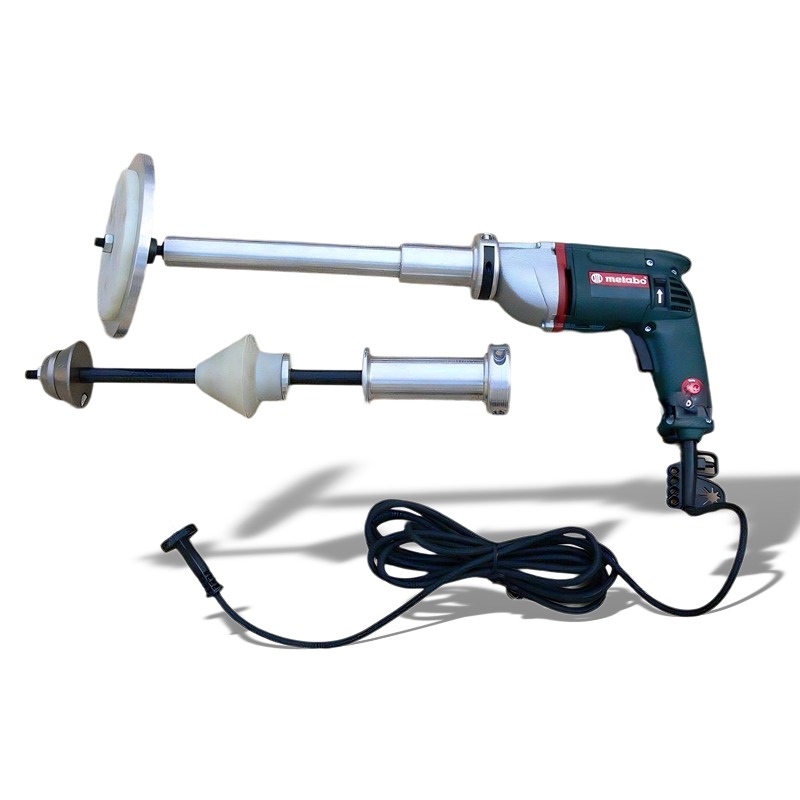

M-100 Portable Valve Grinder is composed of motors,hand-lift set,driving shafts,Centering Sleeve, lapping head, paper-pressure, gasket, nut and so on.The following pictures separately expressed installation for various valves.
Looking for Valve Grinding Machine, Valve Pressure Testing Table, Pipe Cutting Machine? Metals Kingdom waiting to create business relationship with you. With 24 years’ export experiences, our Valve Grinding Equipment, Valve Test Table, Valve Pressure Benchhave been welcomed in international markets. As fames China pipe beveling and cutting machine, High quality and factory price will give you.
If you are interested in our valve grinders, you can click hereto visit our website.
