This machine has a CNC control system,you just need to set up the program and it will do the polishing work itself.

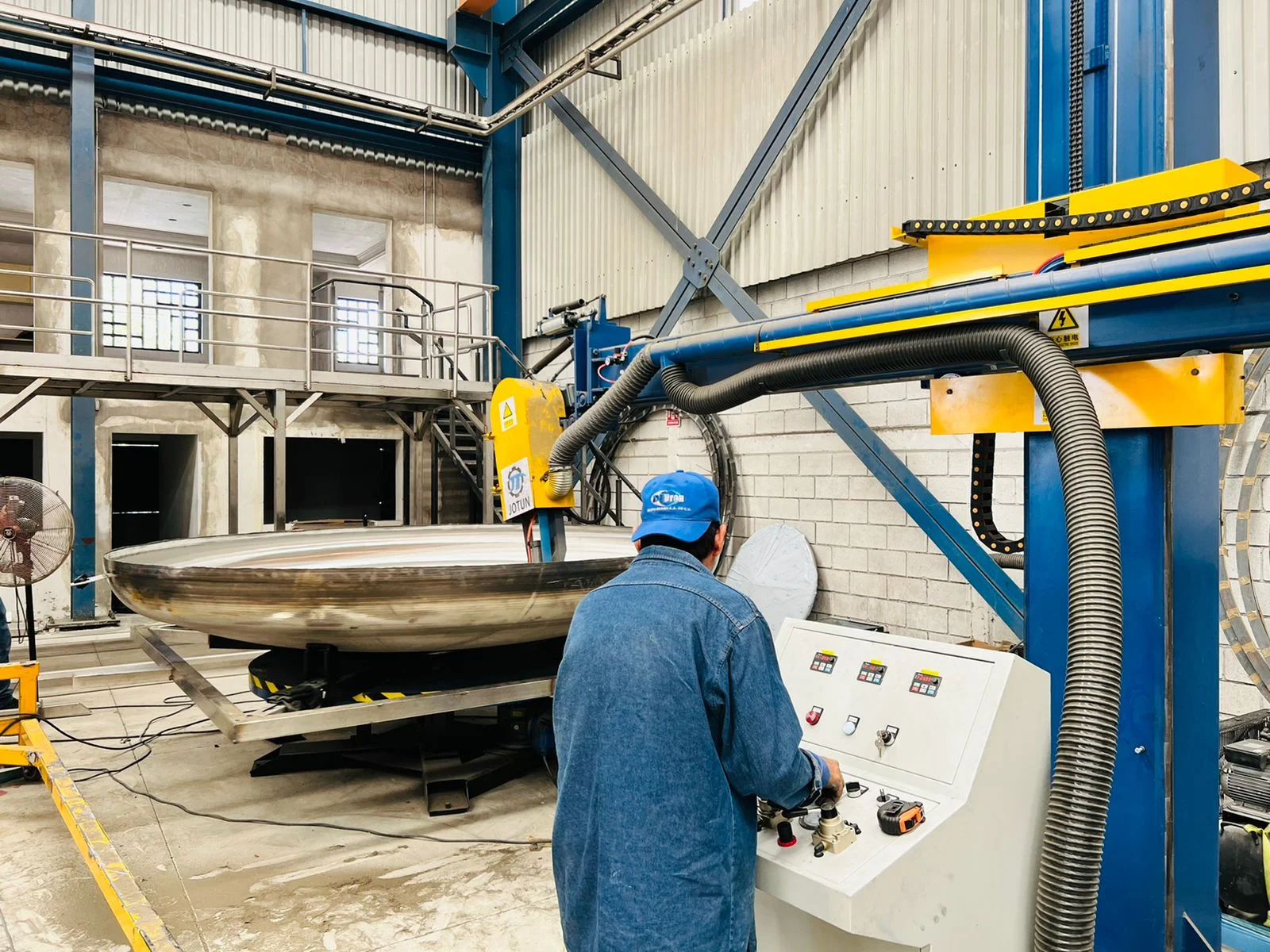

This model for polishing tank and dish head inside and outside to meet different Ra.(hairline/mirror finish...). our standard machine can polishing tank length up to 4000 mm.diameter from 400-4000mm. about dish head polishing,standard machine can polish dish head heigh is 800mm.(all machine can custom-made)
|
Specification of grinding and polishing machine
|
|||
|
Outer Dimension
|
4500*1500*3080 mm
|
||
|
Machine Weight
|
2500 kg
|
||
|
Input Power
|
11 KW
|
||
|
Control System
|
CNC
|
||
|
Polishing Materials
|
Abrasive belt,Flap wheel,Nylon,Hemp wheel,Cloth wheel
|
||
|
Patent No.
|
.4
|
||
|
Note
|
Our products all Non-Standard Customization
|
||
|
Specifications of Working Pieces
|
|||
|
Work Piece Size
|
Tank/Vessel/Cylinder
|
Diameter
|
400-5000 mm
|
|
Max Length
|
6000 mm
|
||
|
Max Weight
|
10 T
|
||
|
Dished End/Tank Top
|
Diameter
|
400-5000 mm
|
|
|
Depth
|
2500 mm
|
||
|
Max Weight
|
10 T
|
||
|
Material
|
stainless steel,aluminium alloy,carbon steel,red copper,etc.
|
||
|
Surface Roughness
|
Ra ≤ 0.25 μm (Mirror Finished)
|
||
|
Product Eifficiency
|
6 - 12 square meters per hour
|
||
1. Grinding with abrasive belt, high efficiency, low noise and less dust. Using thousands of impeller (or wheel dipped emery cloth, wool wheel) polishing, mirror polishing can be achieved.
2. Integrated belt polishing machine, which can respectively polish different parts such as tank body and head, grinding, and select the abrasive belt grinding head with processing precision Ra≤0.2μm (mirror effect). Both workpiece rotation and lateral feed are variable frequency stepless speed regulation, which further improves work efficiency.
3. One device can polish the inner and outer surfaces of the tank and the head, equipped with two sets of grinding heads and two sets of workpiece turning mechanisms.
4. GHS dust collector can be installed.
supply China professional Metal tank shell,dished end,flat sheet polishing grinding/buffing machine,welding seam treatment equipment,widely used for pharmaceutical industry,food,water purification,water supply,chemical,and new energy.Including elliptical dish,cone dish head,spherical shell ,butterfly shell,pharmaceutical stainless steel tank,pressure vessel, brewery, cylinder, cosmetic, sanitary, reaction kettle,fermentation tank,sterilizer,disinfection cabinet,filter, and LNG etc.
Everyone in our team will do their best to serve you, solve your problems and achieve mutually beneficial cooperation.
Our product has exported to America,Argentina,Australia,Denmark,South Korea,India,Poland and 20 other countries and regions.We always focused on research development and innovation,and has recently developed water polishing to meet enviroment management certification.
We regards"reasonable prices,efficient production time and good after-sales service".Hope to cooperate with more customers for mutual development and benefits.
After the product is commissioned, we will split the product. The shock absorbing material is carefully wrapped on the surface of the product to prevent the product from being worn during transportation. The product will then be fixed in accordance with the shipping method requested by the customer to protect the integrity and condition of the product. The way the product is packaged can be determined by the customer and we will do our best to meet your requirements.
 |
