Automotive Wires Ozone Aging Chamber
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Standards
ISO 6722: Road vehicles – Electrical cables – Dimensions and test methods.
SAE J1128: Low-voltage cables for automotive applications.
QC/T 730: Automotive wire bundle ozone resistance test method (China).
JASO D611: Automotive parts – Ozone resistance test for rubber and plastics (Japan).
Product Advantages
Unmatched Compliance: Certified for global automotive standards, ensuring seamless integration into OEM and Tier 1 supply chains.
Precision Ozone Control: Advanced generators maintain stable concentrations (10–1000pphm) with ±10% accuracy, critical for simulating harsh engine bay environments.
Smart Design: Rotating sample rack (2RPM adjustable) mimics real-world mechanical stress during aging tests.
Energy Efficiency: 3.5KW power consumption with rapid heating/cooling cycles reduces operational costs.
Safety Certified: CE-marked with over-temperature protection and ozone leak detection for lab safety.
Product Features
Dual-Zone Climate Control:
Temperature Range: RT +10°C to 60°C (adjustable via PID controller).
Uniformity: ±2°C across 400x500x500mm workspace.
Stability: ±0.5°C fluctuation, ±2°C deviation.
Ozone Generation System:
Corona discharge generator with real-time concentration display.
Automatic calibration for consistent exposure levels.
Data-Driven Testing:
Built-in data logger records temperature, humidity, and ozone levels.
USB export for traceable test reports.
Ergonomic Access:
Full-view observation window with anti-ozone glass.
Quick-release door seal for easy sample loading.
Technical Parameters
| Parameter | Specification |
|---|---|
| Chamber Dimensions | 400mm (W) x 500mm (D) x 500mm (H) |
| Temperature Range | RT +10°C to 60°C |
| Temperature Control | PID microprocessor, ±0.5°C stability |
| Ozone Concentration | 10–1000pphm (adjustable), ±10% deviation |
| Rotation Speed | 0–5RPM (adjustable via touchscreen) |
| Power Supply | 380V/50Hz (220V/60Hz optional) |
| Power Consumption | 3.5KW (peak) |
| Noise Level | ≤65dB |
| Controller | 7” touchscreen with multi-language support |
Accessories
Main Unit: Ozone aging chamber with dual-zone climate control.
Sample Rack: Rotating stainless-steel holder (2RPM adjustable).
Ozone Sensor: High-precision detector with calibration certificate.
Safety Kit: Anti-ozone gloves, gas mask, and emergency shutoff remote.
Software: PC data analysis tool for trend visualization (USB included).
Documentation: Multilingual user manual, warranty card, and compliance certificates.
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
在线联系供应商
Other supplier products
 |
Oxygen Cannula Quality Control Testing Equipment Supplier | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com This device is used to test various performance characteristics of nasal cann... |
 |

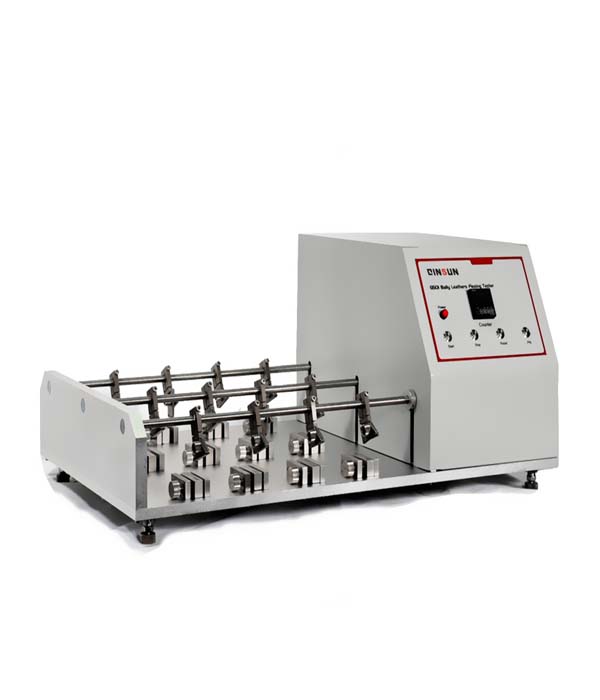

Bally Type Flexometer | ISO 5402-1 Leather and Shoe Material Flex Testing Machine Manufacturer | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com Bally flex tester is designed to evaluate the flexural resistance of leather ... |
 |
Flip Phone Durability Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com The Flip Phone Durability Tester is a specialized testing machine designed to evaluate the ... |
 |

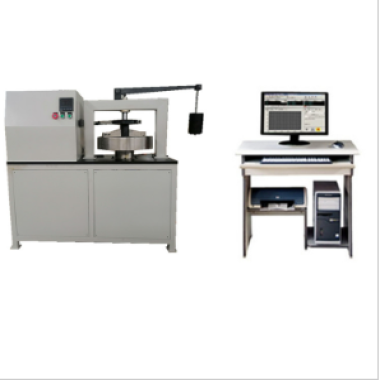

Alternative to Micro Controll Constant-Speed Friction Plate Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com A friction and wear testing machine is a device composed of a test force loading system, a ... |
 |
