Textile Abrasion-Resistant Printed Fabric Surface Wear Pattern Tool
Applications
The Textile Flatness Tester is ideal for industries and scenarios including:
Apparel and Garment Manufacturing – Ensures fabric evenness and surface quality for high-end clothing, uniforms, and fashion textiles.
Home Textiles & Upholstery – Evaluates the flatness of bed linen, curtains, carpets, sofas, and cushions to ensure uniform appearance.
Technical and Industrial Textiles – Monitors the evenness of geotextiles, filtration fabrics, conveyor belts, and composites for consistent performance.
Knitted and Woven Fabric Production – Detects weave irregularities, yarn density variations, and surface defects in real-time to optimize production processes.
Nonwoven Fabrics – Assesses surface uniformity and thickness variation in wipes, diapers, hygiene products, and medical textiles.
Textile R&D & Innovation – Supports research on wrinkle-resistant fabrics, high-density weaves, and advanced functional textiles.
Third-Party Testing & Certification – For inspection agencies verifying fabric compliance with domestic and international standards.
Forensic and Failure Analysis – Identifies fabric defects, wear patterns, and damage causes in quality disputes or product failure investigations.
Educational & Training Institutions – Demonstrates fabric defect detection, surface measurement techniques, and quality assessment procedures to students.
Composite & Specialty Fabrics – Monitors surface flatness for laminates, carbon fiber fabrics, and other multi-layered textiles used in aerospace, automotive, or sports applications.
Standards
ISO 9073-4: Textile flatness measurement
ASTM D3884: Abrasion resistance correlation
AATCC 124: Appearance after repeated home laundering
GB/T 3917.2: Chinese fabric evenness standard
Accessories
Vacuum clamping table for sample mounting
Reference calibration plates
Protective anti-static mat
Software package for analysis and reporting
Power cable and operation manual
Test Procedures
Clamp the fabric sample on the vacuum table, ensuring no folds or wrinkles.
Select the scanning mode (static or dynamic) via the control panel.
Initiate full-area 3D scanning; system captures thickness, roughness, and weave irregularities.
Review real-time heatmaps and defect detection alerts.
Export analysis data for reports or historical comparison.
After testing, clean scanning surface and sample holder; avoid dust accumulation.
Periodically recalibrate using NIST-traceable reference plates to maintain accuracy.
在线联系供应商
Other supplier products
 |
SUGA S80 Carbon Arc Weathering Tester | Applications The SUGA S80 Carbon Arc Weathering Tester utilizes eight sunlight carbon arc lamps capable of providing approximately 78 hours of con... |
 |
Micro Controll High-temperature Friction Test device | Applicable Standards When conducting tests, the microcomputer - controlled high - temperature friction testing machine usually needs to comply wit... |
 |
Electrode Electrolyte Wetting Testing System | The Electrode Electrolyte Wetting Testing System is a high-precision instrument designed to evaluate the wetting behavior of electrolytes on lithiu... |
 |

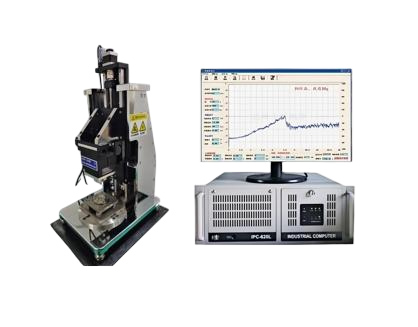

High-Speed Reciprocating Friction and Wear Tester (Model 2M) | The High-Speed Reciprocating Friction and Wear Tester (Model 2M) is designed for evaluating the friction and wear performance of materials and comp... |
 |
