Moisture friction and wear testing machine
Whats/App: +86 156 1874 6768
Web: standard-groups.com
The hydraulic plastic friction and wear testing machine meets the standard "GB/T3960-2016 plastic sliding friction and wear experimental method", which is suitable for measuring the sliding friction and wear properties of plastics and plastics and other composite materials, and can also measure the friction force and friction coefficient of the sample. The instrument adopts color crystal touch screen control, data processing and micro printing.
Application
This machine is primarily used to evaluate the wear resistance of materials in dry and wet abrasive environments. By simulating dry or wet sand abrasion environments encountered in actual working conditions, this testing machine can quantitatively test the wear resistance of different materials. This equipment has broad application value in material research and development, product quality control, and industrial production.
Specifically, the main uses of the dry and wet sand abrasive wear testing machine include:
Material Research and Development: In the development of new materials, wear resistance is an important performance indicator. The dry and wet sand abrasive wear testing machine can help researchers quickly and accurately evaluate the wear resistance of new materials, thus guiding the optimized design of materials.
Industrial Production: In industrial production, many components need to have good
wear resistance to ensure product stability and service life. By using the dry and wet sand abrasive wear testing machine to test components, companies can select materials and processes with good wear resistance, thereby improving product quality.
Quality Control: The dry and wet sand abrasive wear testing machine is also widely used in product quality control. By testing the wear resistance of manufactured products, unqualified products can be promptly identified and dealt with, ensuring that all products entering the market have good wear resistance.
Standard
(1)JB/T 9396:Specifications for Ring-Block Wear Testing Machines
(2)ASTM G65:Standard Test Method for Measuring Abrasion Using the Dry Sand/Rubber Wheel Apparatus
(3)ASTM G105:Standard Test Method for Conducting Wet Sand/Rubber Wheel Abrasion Tests
Feature
(1)Simulating various working conditions: By changing parameters such as the rotational speed and normal pressure of the rubber wheel, various working conditions can be effectively simulated, making it suitable for wear-resistant material screening tests in various industries, including agricultural machinery, construction machinery, mining machinery, excavating machinery, and transportation machinery.
(2)Research purposes: It provides research departments with the means to study abrasive wear mechanisms and better simulate the abrasive wear process.
(3)Extending rubber wheel lifespan: By adding adjustment devices to the fixture and a timer or rotation counter, the lifespan of the rubber wheel can be extended.
(4)Automatic control: PLC automatic control is used to achieve automatic stopping at a set number of rotations or time, and automatic speed control.
Parameters
| Feature/Specification | Details |
|---|---|
| Sample Size | (30 × 7 × 6 + 0.5) mm |
| Transmission Speed | 200 RPM ± 5% |
| Load | 20 KG ± 1% |
| Friction Ring | φ40 × 10 mm, HRC 40-45. Chamfer 0.5 × 45°; Concentricity deviation between outer surface and inner circle < 0.01 |
| Friction Torque | 0 - 4 N·m ± 2% |
| Equipment Weight | 52 kg; Weight after Packing: 82 kg |
| Equipment Size | Dimensions (L × W × H): 500 × 460 × 320 mm; Packaging Size: 650 × 600 × 550 mm |
在线联系供应商
Other supplier products
 |
Model Coin-cell Swelling System | The Model Coin-Cell Swelling System is designed for in-situ measurement of thickness and volume changes of coin-type lithium-ion cells during charg... |
 |
Indicative Fire Resistance Test Furnace ISO 834-1,EN 1363-1Advanced heat insulation test furnace for fireproof coatings | Whats/App: +86 156 1874 6768 Web: standard-groups.com The Fireproof Coating Test Furnace evaluates thermal insulation and fire resistance of stee... |
 |
Office Chair Caster Durability Test machine | Whats/App: +86 156 1874 6768 Web: standard-groups.com Implementation standards GB/T4085 EN425 Product features 1. The instrument adopts PLC to... |
 |
Floor Caster Wear Tester | The Floor Caster Wear Tester is designed to evaluate the wear resistance of chair casters on various floor coverings, including resilient and lamin... |
 |

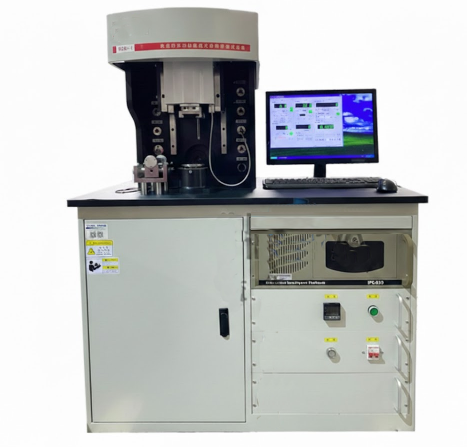

Rotary reciprocating friction and wear testing machine | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards ASTM G99 – Standard Test Method for Wear Testing ASTM G133 – High-T... |
