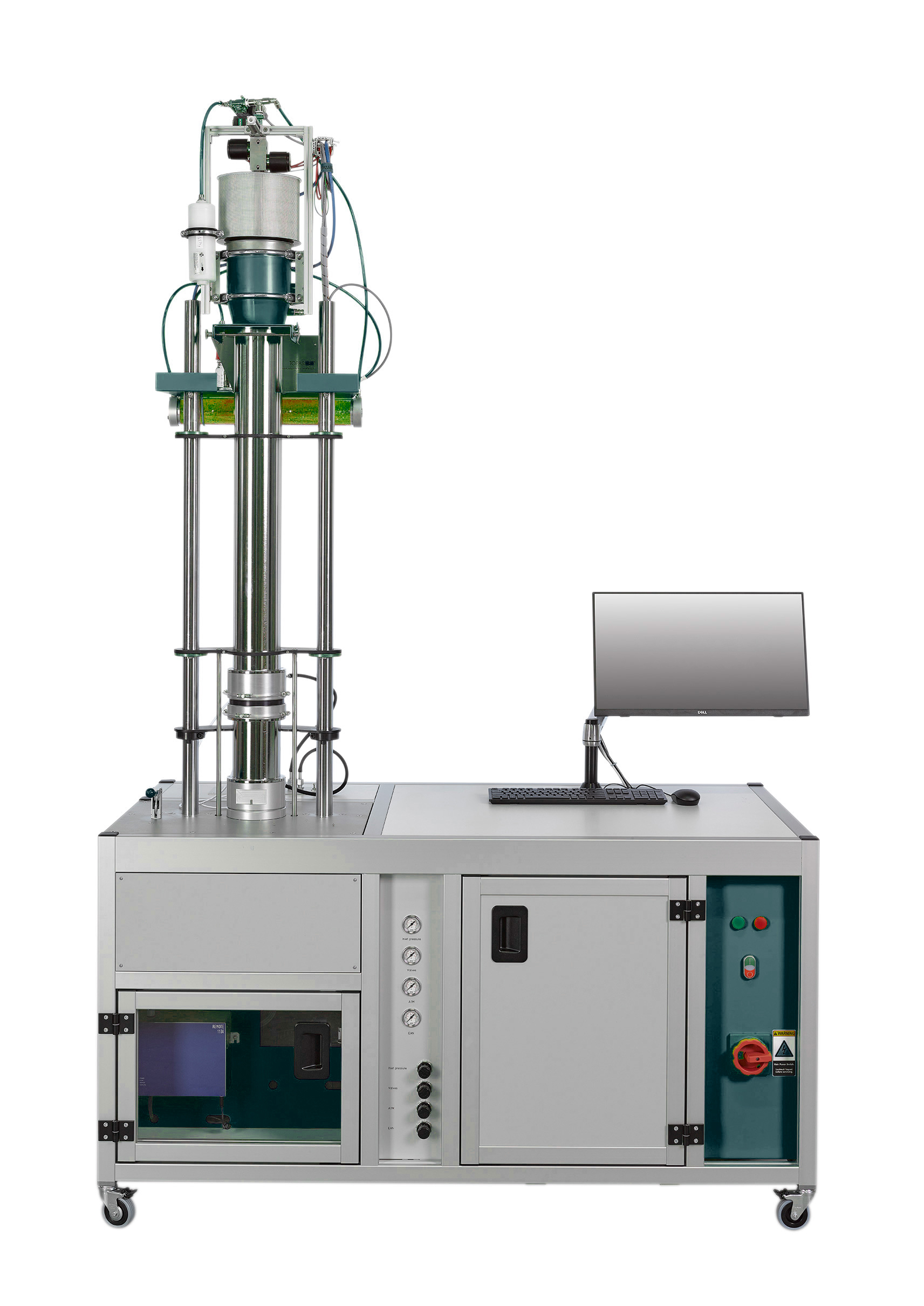

Filter Efficiency and Performance Test System
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Standards
GB/T 6165 — High Efficiency Air Filters — Performance Test Methods
GB 2626 — Respiratory Protection — Non-powered Air-Purifying Particle Respirators
EN 13274-7 — Respiratory Protective Devices — Test Methods — Part 7: Determination of Particle Filter Penetration
ISO 5011 — Inlet Air Cleaning Equipment for Internal Combustion Engines and Compressors — Performance Testing
ISO 29463-3 — High-Efficiency Filters and Filter Media for Removing Particulate Matter in Air — Part 3: Testing Flat Sheet Filter Media
ISO 29463-5 — High-Efficiency Filters and Filter Media for Removing Particulate Matter in Air — Part 5: Test Method for Filter Elements
Technical data
| Parameter | Unit | Value |
|---|---|---|
| Test flow rate | m³/h | 1.5-18 |
| Measuring range, differential pressure | Pa | 5000 |
| Compressed air supply (operating gas/air) | bar | 6 |
| Power supply | – | 110 … 230 VAC, 50/60 Hz |
| Operating medium (aerosol) | – | DEHS, ISO 12103-1 A2 |
Features
Reliable timesaving testing of gravimetric filter efficiency, dust holding capacity, differential pressure and fractional filtration efficiencyholders for test filter and backup filter separately removable, weighable without filter removal
Backup filter for protection of the flow rate unit in case of a filter breakthrough
Integrated Solid Aerosol Generator SAG 410 for feeding rates from approx. 1.5 - 20 g/h
Principle
- Flow rate unit: injector pump with a set of critical nozzles to adjust different flow rates
- Intake test air is directed through a special intake section for homogenous mixing with the test aerosol
- Test filter holding manually operable
- Solid aerosol generator exchangeable by different models of the series
- Control of the Solid Aerosol Generator integrated to the test rig
- Test dust dispersion by using an injector nozzle
- Suitable especially for test dusts ISO 12103-2 A2/A4
Accessories
Differential pressure measurement
Fractional efficiency measurement:
- Aerosol Spectrometer
- Aerosol Dilution System
- Sample Switching, controllable by means of software of aerosol spectrometer or via serial interface
Test Procedures
The flow rate is adjusted by a flow rate unit consisting of an injector pump with a set of critical nozzles;
The intake test air is guided through a dedicated intake section to ensure homogeneous mixing with the test aerosol;
The test filter is mounted in a manually operable filter holder;
The solid aerosol generator can be exchanged with other models of the same series and is fully integrated into the test rig control;
Test dust is dispersed into the airflow using an injector nozzle, making the system particularly suitable for ISO 12103-2 A2/A4 test dusts;
Under defined test conditions, filtration efficiency, differential pressure, and dust holding capacity are measured and recorded.
Maintenance Information
(1) Regularly inspect and calibrate the flow rate unit and differential pressure measurement devices
(2) Keep the aerosol generator and injector nozzles clean to prevent dust blockage
(3) Ensure the compressed air quality meets system requirements
(4) Clean the test channel and filter holders after each test
(5) Store the system in a clean and dry environment during long-term shutdown
