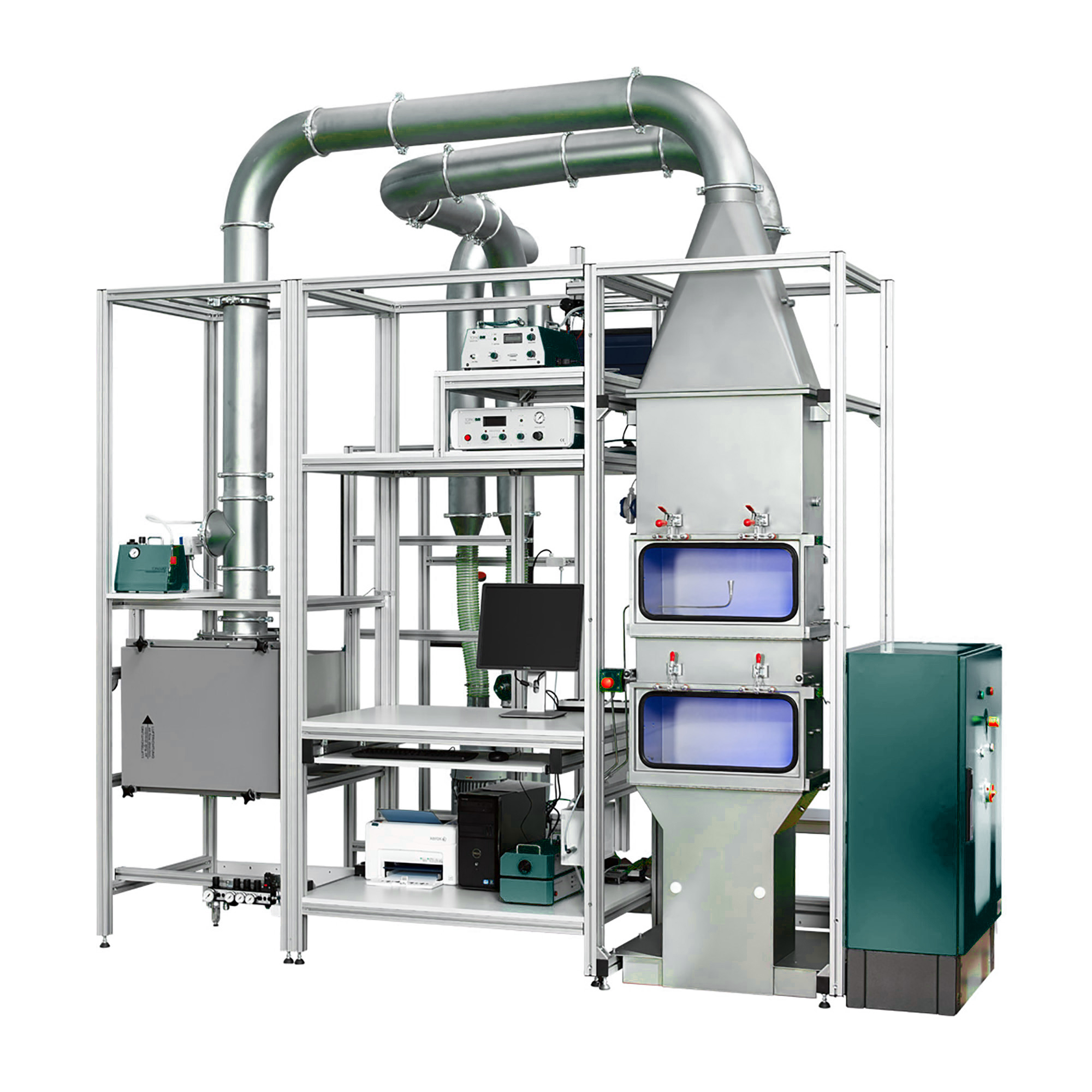

Cabin Air Filter Test Chamber
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Standards
(1) GB/T 32085.1 — Automotive Air Conditioning Filters — Part 1: Dust Filtration Test
(2) ISO/TS 11155-1 — Road Vehicles — Cabin Air Filters — Part 1: Dust Filtration Test
(3) DIN 71460-1 — Road Vehicles — Passenger Compartment Air Filters — Part 1: Particulate Filter Test Methods
Features
Standard compliant testing of filter elements and filter mediamodular setup and instrumentation
Design on different flow rate and differential pressure ranges
High degree of automation
Traceable test documentation
Technical data
| Parameter | Unit | Value |
|---|---|---|
| Test flow rate | m³/h | 70 … 700 (higher flow rates on request) |
| Measuring range, differential pressure | Pa | 0 … 1000 |
| Compressed air supply (operating gas/air) | bar | 6 |
| Power supply | – | – |
| Test specimen dimensions | – | max. 300 × 600 mm |
| Aerosol generation technology | – | Dust disperser SAG 410/L, Atomizer ATM 220 |
| Aerosol conditioning technology | – | Electrical Aerosol Neutralizer EAN 581 |
| Aerosol measurement technology | – | Aerosol spectrometer |
| Sensors | – | Differential pressure, absolute pressure, temperature, relative humidity |
| System dimensions (W × H × D) | mm | 4600 × 3400 × 1200 |
Accessories
Atomizer Aerosol Generator
Dust disperser
Laser Aerosol Spectrometer
Dilution system
Electrostatic Aerosol Neutralizer
Filter media adapter with sampling system
Additional pressure sensors
PAF111Win - test system control, data acquisition and processing software
Test Procedures
(1) Install the filter element or filter media sample and verify airtight sealing to prevent bypass leakage.
(2) Set the required test airflow according to the selected standard and allow the system to stabilize.
(3) Activate the aerosol generation system and adjust the concentration to the specified level.
(4) Measure upstream and downstream particle concentration and size distribution to calculate fractional filtration efficiency.
(5) Record the pressure drop across the filter simultaneously.
(6) For dust holding capacity tests, continuously load standard dust while monitoring pressure drop increase.
(7) Terminate the test when the specified end condition is reached and save all data.
(8) Generate and review the test report for performance evaluation and comparison.
Maintenance Information
Regularly calibrate airflow sensors, particle measurement instruments, and pressure transducers to maintain measurement accuracy.
Clean the test duct and aerosol paths after dust loading tests to prevent cross-contamination.
Inspect seals, adapters, and connections periodically to ensure system airtightness.
Replace protection filters and consumables according to usage conditions and standard recommendations.
Maintain the aerosol generators and neutralization devices in accordance with manufacturer guidelines.
