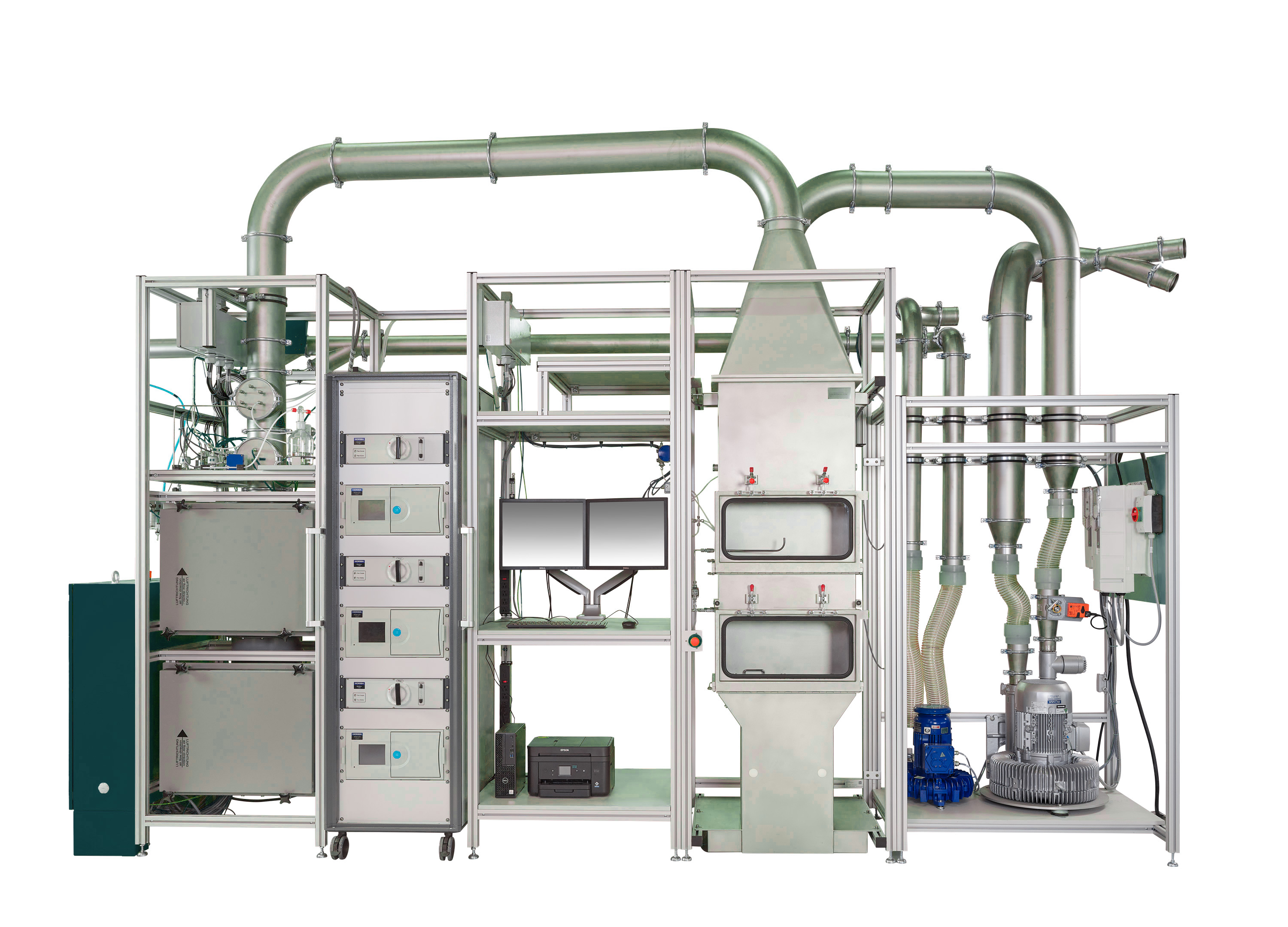

Car Interior Air Quality Filter Test Machine
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Standards
(1) GB/T 32085.2-2015 — Automotive Air Conditioning Filters, Part 2: Gas Filtration Test
(2) DIN 71460-2 — Road Vehicles — Cabin Air Filters, Part 2: Gas Filtration Test
(3) ISO 11155-2:2009 — Road Vehicles — In-Cabin Air Filters, Part 2
(4) ISO 10121-1 / ISO 10121-2 — General Methods for Testing Air Filter Performance
Features
standard compliant testing of filter elements and filter mediaoperator is guided through test routines
modular system and instrumentation
versatile
Technical Data
| Parameter | Unit | Value |
|---|---|---|
| Test flow rate | m³/h | 70 … 700 |
| Measuring range, differential pressure | Pa | 0 … 1000 |
| Test gases | – | n-Butane 80 ppm (C₄H₁₀), Toluene 80 ppm (C₆H₅CH₃), Sulphur dioxide 30 ppm (SO₂), Ammonia 30 ppm (NH₃), Nitrogen (purging) |
| Power supply | – | 3 × 230 VAC, 16 A |
| Test specimen dimensions | mm | max. 300 × 600 |
| Gas analysers | – | Hydrocarbons with FID, Sulfur oxides with NDIR, Nitrogen oxides with CLD |
| Sensors (others) | – | Temperature, relative humidity, absolute pressure |
| System dimensions (W × H × D) | mm | 1800 × 2500 × 1100 |
Accessories
test channel and rig
gas dosing system
exhaust system
flowmeter
gas analyser
sensors
test stand control software
Principle
Integral parts of test procedures
- Differential-Pressure measurement
- Adsortion tests according standard ISO 11155-2 (DIN 71460-2)
- Adsorption/Desorption measurement
- user-defined test procedures
Maintenance Information
Regularly calibrate gas analyzers and flow meters to maintain accuracy.
Inspect seals, adapters, and tubing for leaks before each test.
Clean and maintain the gas dosing and exhaust systems according to manufacturer instructions.
Replace consumables, such as filters and gas lines, as required.
Ensure software and firmware are up to date for accurate data acquisition and analysis.
