Electrochemical Corrosion and Wear Testing Machine
Introduction to Main Purposes
1. Evaluation of Material Corrosion and Wear Performance: By simulating the corrosion and friction - wear environments under actual working conditions, evaluate the corrosion - resistance and wear - resistance of materials, helping to screen out materials more suitable for specific working environments.
2. Evaluation of Material Surface Modification and Coating Performance: Evaluate the performance of materials with surface modification or coatings, and determine their long - term performance and stability in corrosive environments, so as to optimize the surface treatment process.
3. Evaluation of Material Tribological Performance: Study the specific behavior of materials during the friction process, measure and analyze parameters such as the friction coefficient and wear amount, providing data support for the tribological design of materials.
Technical Parameters
Test Load Range 30～1000g(weight loading), 10～50N(automatic loading)
Accuracy 0.2% F.S
Reciprocating sliding frequency 0.1～5Hz
Slide length adjustable 0.5～25mm
X-axis travel distance adjustable 0～40mm
Z-axis lift height adjustable 0～150mm
Lower specimen size range 30～80mm
Upper sample size range Ф4～Ф6mm
Ball Sample reservoir size 120mm×90mm×50mm
Maximum capacity 300ml
Friction measurement range ≦50N
Friction system measurement accuracy 0.2% F.S
Dimension of main unit(mm) 400*300*600
Weight of main unit(Kg) 50
在线联系供应商
Other supplier products
 |
Chrysler Flex Fold Tester | Standards: Chrysler LP 463 LB 9-01. Chrysler LP 463 KB 13-01. Chrysler LP 463 KB 10-01 Applications: The Chrysler Flex Fold Tester was designed ... |
 |
Femoral Condyles Components Fatigue Performance Tester | Standard ASTM WK51649: Specifies fatigue testing protocols for metallic femoral components in total knee arthroplasty, including F-N curve gener... |
 |
ICI Mace Snag Tester | Introduction ICI Mace Snag Tester is suitable for the snagging performance test of knitted fabrics and woven fabrics in outwear as well as other f... |
 |

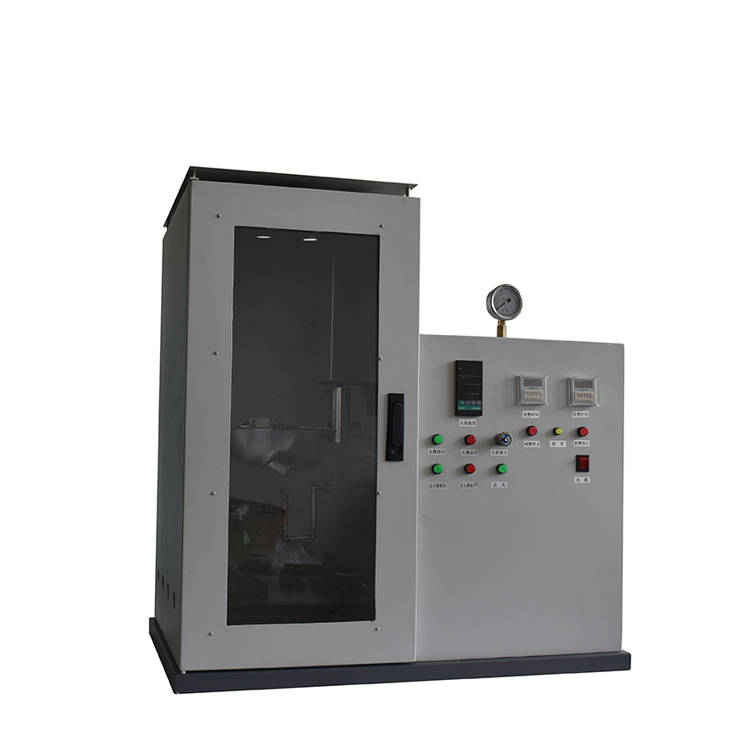

Mask combustion tester | Standards: GB 19083-2010， EN 149, GB 2626, YY 0469 Applications: Mask combustion tester is to determine the fire resistance performance of... |
 |

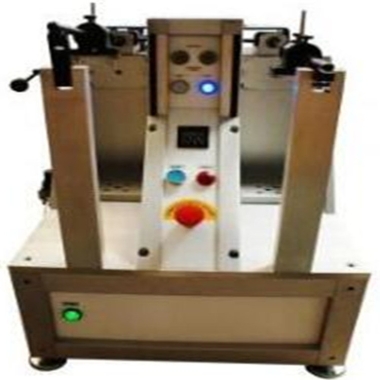

Sock Durability Tester | Product Introduction: Socks wear tester is a special equipment, mainly used to test the wear resistance of socks material. It evaluates the comfor... |
