Xenon Arc Weatherometer
Introduction
The xenon arc lamp, which is capable of simulating the whole natural sunlight spectrum in the most consistent manner, can reproduce the destructive light waves in different environments, so that the material can be subjected to light fastness and weather ability acceleration test. It can be used for screening new materials, improved existing materials or assessment of changes in material composition after the change in durability and other tests. The Xenon Arc Long-Life Weather Meter is designed to test a wide range of materials in the fields, such as: paint ink paint, resin, plastic, printing and packaging, adhesives, automotive/locomotive industry, cosmetics, metal, electronics, electroplating, medicine and so on.
Feature
1. Water-cooled xenon arc lamp longevity guarantee long life arc 2000hr more.
2. Optical quartz glass xenon arc lamp.
3. The inner and outer filter tube metal coating process (long-life filter tube type).
4. Irradiation intensity monitor the entire process.
5. Ultrasonic and spray humidification system.
6. Rain water temperature control 10-20°C.
7. TFT, LCD color screen.
8. Voltage, current, light intensity, temperature, humidity, rainfall pressure monitor the entire process.
9. The replacement of the filter tube can type, including QUARTZ, SODA LIME, BORO, and GLASS.
10. B.P.T. And B.S.T. selectable control.
11. The effective irradiation area: 6500cm2.
12. Barrel tilting specimen holder 2 layers.
Standard
PV3929 1303,SAE J 1960, ASTM G151, ISO 105, MES, NES, VW, JIS and so on.
Specification
MODEL
ITEM |
STD-9707A (F) |
STD-9707B (F) |
| INSIDE DIMENSION |
1100x1100x1000 (WxDxH) mm |
800x800x900 (WxDxH) mm |
| OUTSIDE DIMENSION |
1400x1400x2000 (WxDxH) mm |
1350x1300x1850 (WxDxH) mm |
| COOLING MODEL |
WATER COOLING |
WATER COOLING |
| LIGHT SOURCE |
6500W XENON ARC |
4500W XENON ARC |
| LAMP LIFE |
≥2000Hr |
≥2000Hr |
| FILTER GLASS |
Borosilicate / Quartz / Soda Lime |
Borosilicate / Quartz / Soda Lime |
| DIGITAL B.S.T. |
89oC |
95oC |
| DIGITAL B.P.T. |
63oC / 83oC |
63oC / 83oC |
| TEMP RANGE |
RT+10oC ~70oC |
RT+10oC ~95oC |
| HUMIDITY RANGE |
20%RH~98%RH |
20%RH~98%RH |
| SPECIMEN DRUM DIA |
960mm |
630mm |
| DURM ROTATION SPEED |
1RPM or 1~3RPM (Adjustable) |
3RPM |
| SPECIMEN |
114 pcs in 2 stages |
48 pcs in 2 stages |
| POWER SOURCE |
220V / 380V, 1Ф3W 13KVA |
220V / 380V, 1Ф3W 8KVA |
| NOTE：9707A(F),9707B(F) is the Xenon Arc Weather Mete |
Other supplier products
|
|
Photovoltaic module wire tube bending testing machine |
Standard
IEC 61730-2:2004: Photovoltaic (PV) Module Safety Qualification – Requirements for Testing
CE Certification(Conformité Eu... |
|
|

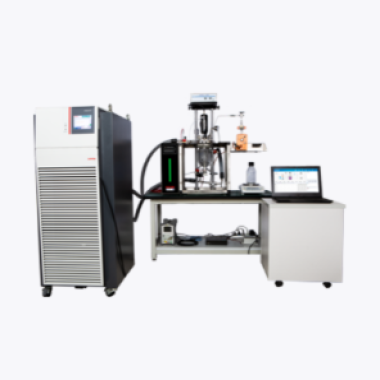

Automatic Reaction Calorimeter |
