Nanofiber electrospinning device
The Nanofiber Electrospinning Unit uses electrospinning techniques to safely and easily produce nanofibers with diameters of 50 to 800 nm. This device is widely used in the automotive industry for research and development of filters and fuel cells.
The Nanofiber Electrospinning Unit is capable of producing 50 to 800 nm diameter fibers. The device’s biggest feature is the ability to produce nanofibers easily from a small amount of various polymers using an electrospinning technique. Currently, use of nanofibers in raw materials, IT, biotechnology, and healthcare industries is expected to increase dramatically as manufacturers look to take advantage of increased surface area and finer fiber materials.
Standard:
T/YNIA 017-2023 "Electrospun Nonwoven Air Filter Materials"
Main features:
Spinning high uniform, high quality nanofibers
By constructing a stable electric field using our unique technology, nanofibers with high fiber diameter uniformity and a small number of droplets can be spun.
1. Ten-key easy programming
High pressure, solution volume, feed speed, syringe diameter, collector rotation speed, spinneret width, lateral speed, cleaning frequency/interval and other parameters can be easily programmed using ten keys.
2. Easy to load and unload system components
Both spinnerets and collecting plates can be replaced and installed quickly and easily.
3. Rotate the highly oriented orientation film
With the optional φ20 0mm drum dust collector or disk dust collector, highly oriented films can be produced (orientation angles of 5 degrees or less depending on the material)。
4. Equipped with automatic cleaning mechanism
Equipped with needle cleaning mechanism, frequency and interval can be programmed.
5. Thorough security measures
Thorough safety measures such as door interlock, emergency stop function, indicator light, tempered glass, high speed cut-off high pressure.
Technical parameters:
Product Name |
Nanofiber Electrospinning Unit |
| Dimensions (W×D×H) *approx. | 900×750×1080 mm (Including pilot lamp) |
| Weight *approx. | 120 kg |
| Power supply, Frequency | 100VAC, 50/60Hz |
在线联系供应商
Other supplier products
 |
Bending Tester STD- FB2 - S | Compliance Standards ASTM D790 (Plastics Flexural Properties) ISO 178 (Flexural Strength of Rigid Plastics) SAE J2748 (Automotive Composite Flex... |
 |
Powder Wet Vibrating Screen System For Lithium Battery Material Testing | The Powder Wet Vibrating Screen System is designed for particle size separation and distribution analysis of lithium battery materials under wet co... |
 |

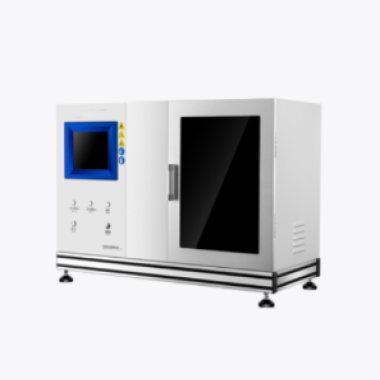

Aerosol Foams Flammability Tester | Product Introduction This product complies with "Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria" 31.6 Flammabi... |
 |
