Cleanliness Analysis System
The cleanliness analysis system fully complies with the requirements of standards such as VDA19.1 - 2015. ISO16232. ISO4406. ISO4407. QV11111. as well as customer - defined standards. It adopts optical polarization technology and an automatic polarization device. Through a single scan, it can determine the metallic luster reflection properties of all contaminants on the entire filter membrane. Meanwhile, according to the morphological definition of fibers in VDA19.1 (stretching length; maximum inscribed circle diameter > 20. maximum inscribed circle diameter ≤ 50 micrometers), it can automatically complete the classification and size measurement of the following four types of particles within a few minutes: reflective particles, reflective fibers, non - reflective particles, and non - reflective fibers. It can also automatically generate reports based on statistical results (particle size, dimensions, metal, non - metal, fiber).
Compliant standards:
VDA19.IS016232.NAS1638.IS04406
Particle standards:
Built-in 0.1mm/grit and 0.01mm/grit standards for calibration of the instrument scale 56 different particle sizes in the 47mm range from 50-1000um for validation of instrument detection status, particle algorithm, and different brands of instruments. Can be used to validate instrument detection status, particle algorithms, and comparison of measurement capabilities between different brands of instruments Third-party inspection certificates for traceability to national and international standards.
Functional Features：
1. Optical system design allows for simultaneous differentiation between reflective/non - reflective particles with a single scan, enabling uninterrupted scanning.
2. All - electric hardware design with full - process automatic focusing, automatic objective lens switching, and automatic scanning of the overview map, minimizing manual operations to the greatest extent.
3. A simple operation interface with large - button design, making it convenient to operate with a touch screen and streamlining operation steps as much as possible.
4. Built - in database management system, eliminating the need to save the filter membrane.
5. Optional high - magnification objective lenses can identify extremely small particles with a minimum diameter of 2.5μm and observe their appearance at up to 100 - times magnification.
6. Supports industry - common standards such as ISO16232. ISO4406. VDA, and allows for easy customization of standards.
Motorized Scanning Platform:
Scanning range: 125 * 75mm Step accuracy: 1um Repeatability: 5um
Image Acquisition System:
USB3.0 interface to meet the rapid transmission of dynamic images 3 megapixel imported camera Resolution: 2046 * 1544. 53 frames per second, suitable for collecting Dynamic image Global shutter, there will be no shutter curtain shutter common image drag
Energy digital lighting system (ZL technology):
software control and manual control of two modes digital display, light source brightness can be quantified, the test results can be reproduced can be distinguished between metallic and non-metallic particles (according to IS. VDA19.1-2015 specification requirements) Relying on the technology, the film only need to scan once, the analysis speed increased by 50% can be used to analyze the image of the film. 50% faster analysis for automotive parts cleanliness, oil cleanliness testing, parts cleanliness testing, machinery and equipment cleanliness testing
在线联系供应商
Other supplier products
 |
Tracking indices of solid insulating materials Test Machine ,IEC60112 | Introduction This tester is in accordance with IEC60112 standard . It is suitable for lighting, low voltage electrical equipment, household applia... |
 |
Particle Wear Testing Machine (for Particle Abrasion Tester) | The Q-4D particle wear tester is specially designed as a standard instrument based on the national standard "Method for Determination of Wear Rate ... |
 |

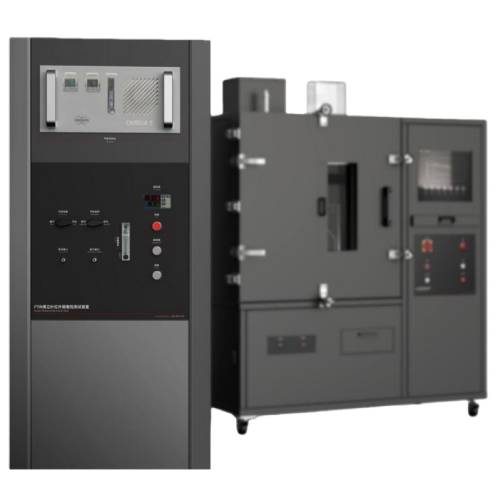

Fourier Transform Infrared Smoke Toxicity Measurement Equipment | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The FTIR smoke toxicity test system is suitable for a wide range of gas analys... |
 |
