Ink drying apparatus
How it works:
The working principle of the ink drying instrument is based on simulating the drying environment of the ink in the printing process, and measuring the drying condition of the ink in a certain period of time through certain pressure and temperature conditions. In particular, the ink drying apparatus is usually equipped with a press wheel and a cardboard, which will drive the ink test strip to do a song, and the press wheel will leave ink marks on the paper cover. As the ink dries, the ink marks on the paper will gradually reduce until they no longer appear, and this time is used to indicate the drying speed of the ink.
Technical features:
Diversity: There are more types of ink drying apparatus, but the basic principle is similar, and different models of ink drying apparatus may have differences in size, weight, power supply, test timing, etc., to meet the needs of different users.
High precision: Modern ink drying equipment usually uses advanced control technology, such as single-chip microcomputer control, can accurately measure the drying time of ink, improve the accuracy of the test.
Easy to operate: The operation of the ink drying device is usually relatively simple, and the user only needs to set and operate according to the instructions. At the same time, some high-end ink drying instruments are also equipped with display equipment such as wave crystal screen, which is convenient for users to view the test parameters and results.
Application field:
Ink drying equipment is mainly used in the printing industry, especially in the process of ink production and printing process optimization. By measuring the drying speed of the ink, the printing company can understand the performance characteristics of the ink, so as to choose the appropriate ink formula and printing conditions, and improve the quality and stability of the print. In addition, the ink drying instrument can also be used for ink research and development, quality testing and customer proofing
Technical parameters:
Power supply voltage :220V 50Hz
Pressure wheel moving speed :2 m/RPM
Weight of pressure wheel :100g
Duration :5——20 hours
Total number of laps :120
Overall dimensions:
500mmx200mmx220mm(L x W x H)
Weight :17KG
在线联系供应商
Other supplier products
 |
Time-Pressure Oxidizing Liquid Analyzer | Product Description Conforms to UN Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria 11.6.1 Test 1(c)(i): Time/Pr... |
 |
Precision Fiber Slicer | G214Precision Fiber Slicer is used to make the accurate fiber cross-sectional specimens for further inspection or research under the microscope. In... |
 |
Femoral Stem Neck Prostheses Fatigue Testing Machine | Standard YY/T 0809.6 (China): Specifies neck fatigue testing for femoral stems in partial/total hip arthroplasty. ISO 7206-6 (International): Def... |
 |
Qinsun Ci xenon lamp aging test chamber | The Ci Series Weather-Ometers are the most widely used rotating rack water-cooled xenon-arc weathering testing instruments in the world. Their larg... |
 |

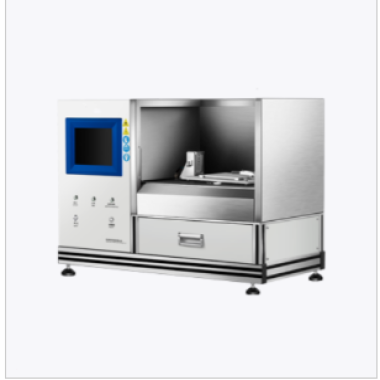

Oxidizing Solids Tester | Product Description Conforms to UN Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria 34.4.1 Test O.1: Test for ox... |
