Xenon Test Chamber

Features and Benefits

1.The use of xenon arc lamp as a light source, can simulate the full sunlight spectrum, including ultraviolet, visible light and infrared and other wavelengths of light.

2.Compared with the natural aging test, the xenon lamp test chamber can accelerate the aging process of the material and simulate the effect of long-term exposure of the material in the natural environment in a shorter time.

3.In addition to light, xenon test chamber can also accurately control temperature, humidity and water spray playing the role of weatherometer, the interaction between light and temperature, humidity and rain reproduce more authentic environment.

4.Color LCD touch screen controller, convenient for operators to set temperature, humidity, irradiance, spray, sample holder rotation and other parameters, to achieve automatic cycle test, improve test efficiency and repeatability.

Specifications

Model

STD XL-S-750

Internal Dimension (mm)

950*950*850 mm

Overall Dimension (mm)

1400*1400*1950 mm

Specimen Holder Size(mm)

95*200

Specimen Capacity

42pcs

Chamber Type

Rotating Holder

Irradiation Source

1 piece of 4500w water-cooled xenon arc lamp

Irradiance Range

35~150 W/㎡

Bandwidth Measurement

300nm~400nm (340nm or 420nm)

Chamber Temperature Range

Ambient~100 ℃ ±2℃

Black Panel Temperature

BPT 35~85 ℃ ±2℃

Humidity Range

50% ~ 98% RH

Humidity Deviation

± 5% RH

Water Spray Cycle

1~9999H59M (Adjustable)

Controller

Programmable color LCD touch screen controller

Water supply system

Automatic water supply, Water purification system

Radiometer

UV Radiometer, Tolerance: ±5%

Cooling System

Mechanical compression refrigeration system


在线联系供应商

至: Standard International Group (HK) Limited
Your E-mail:
消息正文:


Send to other suppliers

Other supplier products

Multiphase High - temperature and High - pressure Explosion Limit Tester
Multiphase High - temperature and High - pressure Explosion Limit Tester Reference Standards: EN 1839 ASTM E918 ASTM E2079 EN 15967 UL9540A Product Features: 1. Designed with a modular concept to flexibly meet various...

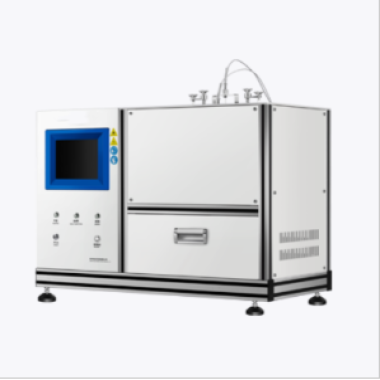

 Solids Spontaneously Igniting Tester
