Mask BFE Testing Machine - G299 丨Mask Bacterial Filtration Efficiency Tester
Mask BFE Testing Machineis used to test the percentage of material containing bacterial suspended particles at a specific flow rate.
Features
1. MaskBFE Testing Machine: negative pressure test system, can protect the safety of the operator.
2. Peristaltic pump built in the negative pressure cabinet,A, B channel 28.3L/min.
3. The flow rate of the peristaltic pump can be set.
4. BFE Tester atomization effect is good.
Mask BFE Testing Machinetest principle
Bacterial filtration efficiency Tester consists of aerosol generation system, aerosol chamber and aerosol transmission device, negative pressure cabinet, 28.3 l/min carbon sampler and other components.The entire detector is controlled by the console.The console adopts microcomputer control system to coordinate and control the work of aerosol generating system, transmission system, negative pressure cabinet and sampling system, and display the working status in real time.The entire measurement work is done automatically.
Applicable Standards
ASTM F2100 standard specification for performance of materials used in medical face masks
EN 14683standard that medical face masks in Europe are required to comply with
ASTM F2101 standard test method for evaluating bacterial filtration efficiency (BFE) of medical mask materials using Staphylococcus aureus biological aerosol
YY0469-2011Technical requirements for surgical mask
YY/T 0969-2013Single-use medical face mask
Technical Specification
Conforms to EN 14683 and ASTM F2101
A Route Sampling Flow: 28.3L/min, resolution 0.1. E±2.O% L/min
B Route Sampling Flow: 28.3L/min, resolution 0.1. E±2.O% L/min
Spray Flow: (O.l e10)L/min, resolution 0.1. E±5.O% L/min
Peristaltic Pump Flow: (0.001 3.O)mL/min, resolution 0.001. E±2.O%
Negative Pressure Chamber: (-90 ? -120)Pa, resolution 0.1. E±I.O%
Working Temperature: OOC to 500C
High Efficiency Particulate Air Filter Properties:
Diameter of aerosol generator mass: Average diameter:
(3.0+0.3)fm; Geometric Standard Deviation<1.5pm
Double Routes 6-lever Andersen Sampling apparatus:
Level l: >7gm; Level Il: (4.7 to 7)gm; Level Ill: (3.3 to 4.7)gm;
Level IV: (2.1 to 3.3)gm; Level V: (1.1 to 2.1)gm;
Level VI: (0.6 to 1.1)gm
Total number of positive quality control sampler particles: (2200±500)cfu
Negative Chamber Flow Speed: 25m/min
Size of Aerosol Chamber: at least (600x80x3) mm
Power supply: 220 V AC, 60 1-Iz
Noise: 65db(A)
Characteristics of G299Mask BFE Testing Machine
1. Intelligent touch screen control panel
more efficient and reliable, programmable 10 inch colorLCD touch, achieve control, data display and other functions
2. High precision
Two samplers simultaneously sampling, avoid the test errorby intermediate link, improve the accuracy of test
3. Multi directional protection design
Equipped with current overload protection, leakage protectionand negative pressure cabinet to ensure safety for operator
4. Stability customized parameters
Adopts imported accessories, features stable movements,accurate test data and good repeatability
Applications ofbacterial filtration efficiency tester:
Mask BFE Testing Machineis used to detect the filtration efficiency of masks, and also can be used for measurement and calibration departments, scientific research institutions, mask production enterprises and other relevant departments.
在线联系供应商
Other supplier products
 |
ink abrasion tester / Ink Abrasion Resistance Tester Ink Rub Tester | Ink abrasion testerPrinciple: To be ground layer and Friction Paper of the Ink Abrasion tester samples, under the action of the load friction body... |
 |
Medical glove water-impermeability tester | The Impermeability Tester for Medical Gloves plays a crucial role in the medical field. The following is a detailed introduction to its main uses, ... |
 |
Rotary Rubbing Color Fastness Tester (Crockmeter) | Application： Rotary Rubbing Color Fastness Testing Machine(rotary color fastness tester) used for printed fabric, textile printing and dyeing indu... |
 |
Shoe peeling strength tester BS 20344 | Product Introduction: Upper peeling strength tester is suitable for testing the peeling strength between the sole and the upper of the shoe, the p... |
 |

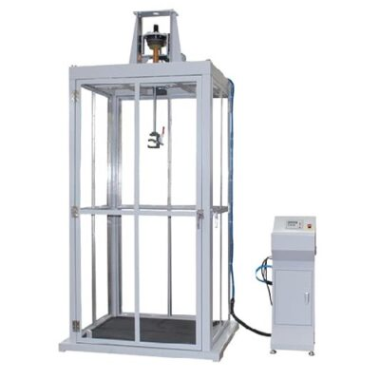

Suitcases Vibration Impact Tester / Luggage Vibration Impact Tester | Product Introduction: This machine is used to test the shock resistance of various luggage handles, car stitches and overall structure. The method... |
