Foam Repeated Compression Tester | Foam Compression Testers - Durable & Reliable Solutions
Product Description:
Foam repeated compression testing machine will accurately measure the thickness of the test piece, placed in the compression plate of the testing machine, at the rate of 60 times per minute, compress the specimen at the frequency of 60 times to compress the height of the specimen 50%, reciprocating compression up to 80.000 times, after 30 minutes at room temperature, measure its thickness to convert the compression deformation rate.
Meet the standard:
ISO-7214. JIS-K6767. K6382
Technical parameters:
Compression stroke: 0——50mm
Compression rate: 60cpm
Pressure plate spacing: 200mm
Test size: 200×200mm
Plate area: 30×30cm
Upper pressure plate: V-type exhaust trench distance: 19×19mm
Lower pressure disc: 289 air holes, hole distance: 19mm
Motor: 1/3HP
Counter: LCD, 0——999999
Volume: 60×40×75cm
Weight: 102kg
Power Supply: 1 # AC220. 5A
在线联系供应商
Other supplier products
 |
Friction and wear testing machine - Friction / Wear Mechanical Testing Equipment | Standards ASTM G99-04 ASTM G77-16 ISO 9352:1995 GB/T 12444-2006 GB/T 12607-2007 GB/T 1865-2009 Application field Petrochemical: Used to ass... |
 |

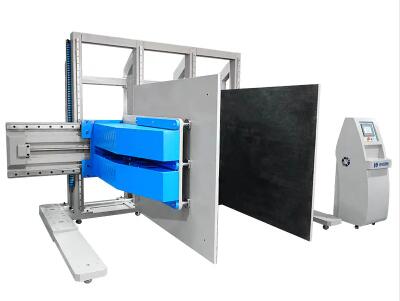

Clamp Force Test Machine / Clamping force measuring instrument | Applications: Clamping Force Testing Machine for packaging simulates the transportation with Schnabel car discharge the package, in the transit, t... |
 |

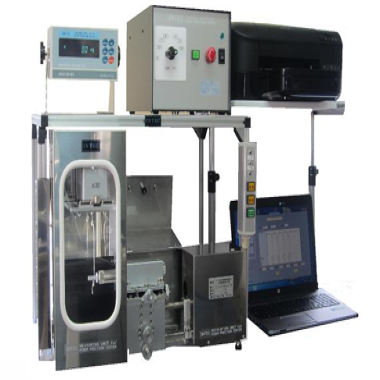

RIDER Method Single Fiber Friction Tester | Meet the standard: JIS L1015 (Chemical fiber binding test method)， JIS L 1095 (General yarn test method)/friction coefficient Purpose: This inst... |
 |

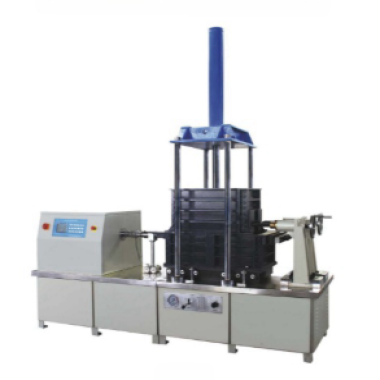

Geosynthetic direct shear drawing friction tester 丨Geotextile Test Machine | The friction characteristics of the interface of sand/geotextile were determined by testing the contact surface of standard sand/geotextile. This i... |
 |
