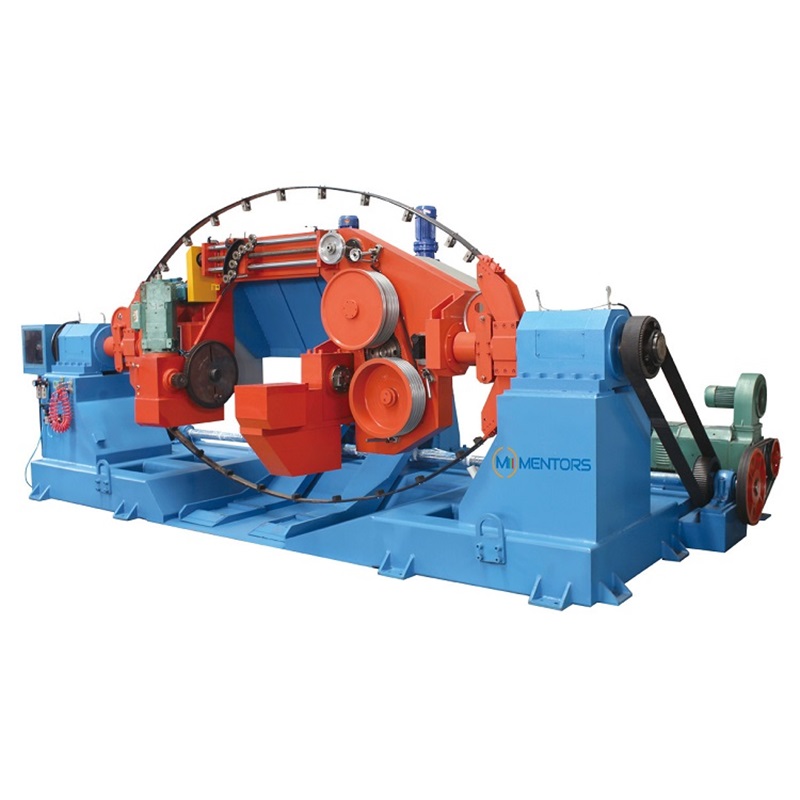

1250 Automatic Wire Buncher
- Application:

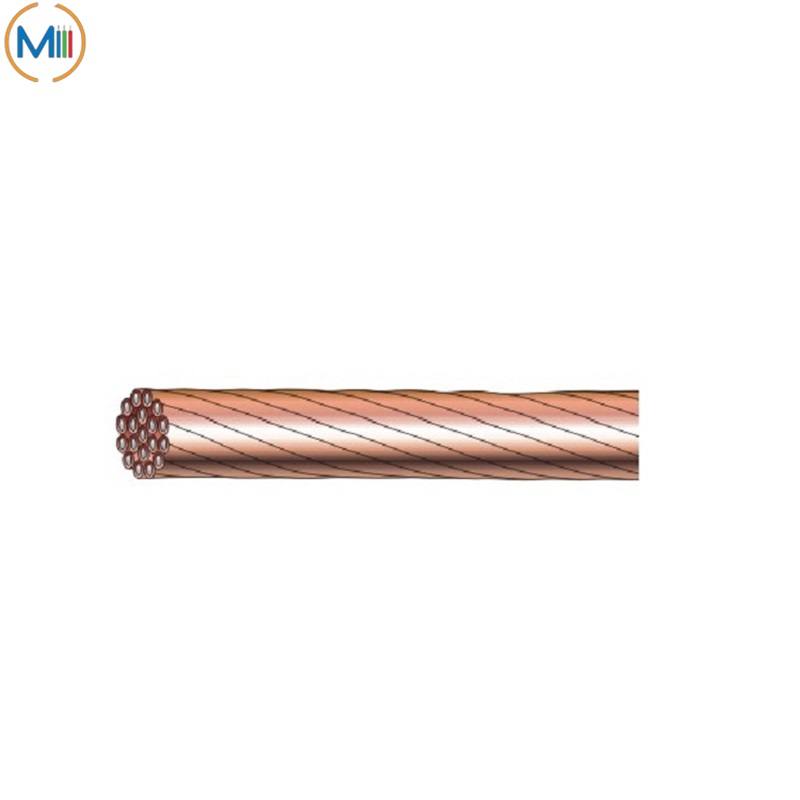

This type machine is used for twisting bare copper or aluminum wire with big size.
2-Main feature:
Itis used for twisting copper or Aluminum wire with 7 wires.

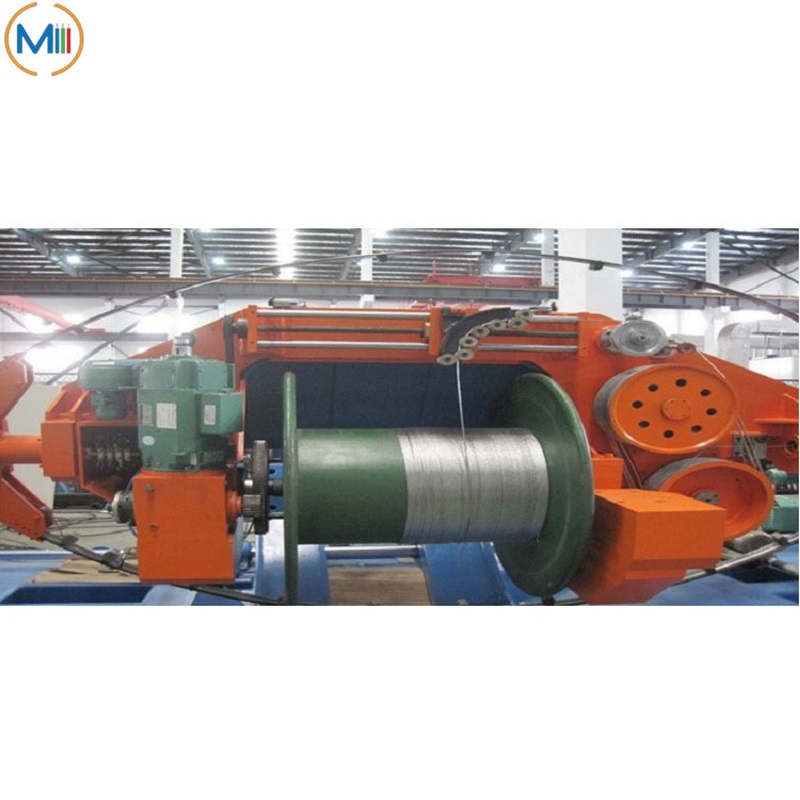

1)Take-up bobbin: 1250
2)Max speed: 800r/min
3) Raw material: copper wire, Aluminum wire
4) Twisting type: double twist
3-Parameters:
|
Machinetype |
SY-1250 |
|
Wireproductofstand |
Twisting 7 copper wires or aluminum wire |
|
Cooperwireindividual |
Φ1.0-3.0 MM |
|
Finishstrandedwire/max. |
10mmφ/max |
|
Finishstrandedwire/Max. |
15mmφ/max |
|
Sectionofstrand-twisting (Flexiblestrand) |
|
|
Sectionofstrand-twisting (Semi-frametwisting1+6) |
|
|
SectionofcompactionCu |
|
|
SectionofcompactionAl |
|
|
Linespeed/Max. |
150mpm/max |
|
Standpitch(mm) |
40-350mm |
|
Rotate speed |
8000rpm/max.(1600TPM) |
|
Loadweight/Max. |
3000KG |
|
StandingDirection |
S,ZDirection |
|
Mainmotor(DC/AC/HP) |
45kwD.C.motor |
|
DriveofCapstan(DC/AC/HP) |
30kwD.C.motor |
|
Driveoftake-upunit(DC/AC/HP) |
|
|
Driveoftraverser |
|
|
Driveofloading&unloading |
|
|
Take-up bobbin size |
1250mm |
4-Advantages:
1) More stability, high production efficiency, low noise and easy to operation.
2) Spring bow can prolong the life.
3) Take-up tension is controlled by magnetic powder clutch or mechanical type.
4) If the wire breaks, the machine can stop automatically.
