Micron Tester
Compliant Standards
- GB 1103-2007: China's national standard for cotton micronaire value determination.
- ASTM D1448: International standard for cotton maturity testing via air permeability.
- BS 3181: British standard for textile material testing methodologies.
- ISO 2403: Global benchmark for cotton quality assessment procedures.
Product Applications
- Cotton Planting: Used in cotton field management and yield assessment. - Cotton Procurement: Facilitates quality evaluation during cotton purchase. - Cotton Spinning Quality Control: Ensures yarn quality by testing raw cotton maturity.
Testing Principle
The instrument employs the airflow method to determine the micronaire value (cotton maturity index). By applying controlled air pressure to a cotton sample, differences in air permeability due to varying fiber fineness are measured. This allows accurate calculation of the micronaire value, correlating with cotton maturity and quality.
Key Technical Advantages
Broad Measurement Range
- World's widest airflow-based micronaire range: 2.0–7.5 - Covers 99% of commercial cotton varieties globally.
Precision & Efficiency
- Accuracy: ±0.03 micronaire value (under standard lab conditions) - Test time: ≤15 seconds per sample
User-Friendly Design
- One-touch operation: Sample loading → auto-test → result display - USB connectivity: Export data to Excel or generate PDF reports via included software
Robust Calibration
- Quick calibration using certified reference cotton standards - Stable performance in non-laboratory environments (e.g., field stations)
Technical Specifications
| Parameter | Specification |
|---|---|
| Sample Mass | 5.0 ± 0.1 g |
| Power Supply | AC 100–240V, 50/60Hz |
| Dimensions | 520×280×300 mm (L×W×H) |
| Weight | 10 kg |
| Environmental Tolerance | Operates at 0–40°C, RH 0–80% |
| Warranty | 24-month comprehensive warranty |
| Configuration Options |
- Standard Package - Main unit + power cable
- Premium Add-Ons
- LABTest Pro Software: Advanced data analysis, trend visualization, and custom report templates
- Calibration Standards: Certified reference cotton samples for routine calibration
Send product request
Other supplier products
 |
The non-contact color measuring instrument | Applicable Standards ISO 105 A11 ASTM D1925 ASTM E313 Application Scope The non-contact color measuring instrument for textiles is suitable fo... |
 |

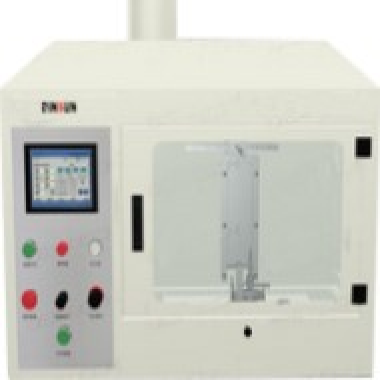

Building Materials Combustibility Test Chamber | Building materialsfire resistance testis a very importantandprofessionaltestin safety engineering. The national standard, GB/T8626-2007. specifies ... |
 |
