Full Vehicle Environmental Simulation Chamber
Application
The Full Vehicle Environmental Performance Test Chamber is applicable across a range of vehicle performance evaluation scenarios, including:
Vehicle HVAC and Thermal Management Testing
Evaluation of air conditioning, heating, defrosting, and demisting efficiency
Thermal comfort assessment for driver and passenger compartments
Emission and Air Quality Testing
Measurement of in-cabin pollutants and VOC concentrations
Analysis of temperature-dependent emission characteristics
Road Simulation and Performance Analysis
Coupled with roller-type chassis dynamometers to simulate driving conditions
Testing fuel consumption, energy efficiency, and climate control performance
Standards
The chamber conforms to multiple national and international standards, including:
(1) GB 18352.6-2016 – Limits and measurement methods for light vehicle pollutants
(2) GB/T 27630-2011 – Guidelines for passenger car interior air quality assessment
(3) QC/T 658-2009 – Road test methods for automotive air conditioning system performance
(4) GB/T 12535-2021 – Vehicle starting performance test methods
(5) GB/T 12542-2020 – Road test methods for vehicle thermal balance capabilities
(6) GB/T 2423 – Environmental testing methods for high/low temperature, humidity, and thermal cycling
(7) ISO 12219-1 – Road vehicles – Interior air – Test methods for volatile organic compounds in complete vehicles
(8) DIN 75220 – Sunlight simulation aging tests for automotive components
(9) SAE J1711 – Recommended procedures for hybrid vehicle fuel economy and emission measurements
(10) PV 3938 – Evaluation methods for automotive interior odor
Parameters
| Item | Specification |
|---|---|
| Internal dimensions (L×W×H) | 16.300 × 8.300 × 5.200 mm |
| Heat exchanger clearance height | ≥3.500 mm |
| Floor insulation | 150 mm polyurethane |
| Chamber floor | Stainless steel tread plate, solid layer thickness ≥3 mm, pattern height 2 mm |
| Floor load capacity | 1.200 kg/wheel; axle load ≥2.000 kg |
| Chassis dynamometer support | Thermally insulated, designed for full dynamometer weight |
| Vehicle access door | 1 set, net 3.000×3.000 mm, two-leaf, heated glass observation windows 300×300 mm |
| Personnel access door | 1 set, net 900×1.900 mm, heated explosion-proof glass observation window 300×300 mm |
| Control observation window | 2 sets (optional), 2.000×1.000 mm, insulated, anti-frost heated surface |
| Lighting | Main illumination ≥500 lux over full temperature range; emergency light operational ≥1 hour at -40°C |
| Power outlets | 4×220 VAC/10A, 2×220 VAC/16A, 2×380 VAC/32A (with standard triangle plugs) |
| Cable feed-throughs | 4 sets, diameter 100 mm, max 16 cables per hole |
| Personnel airlock | 1 set, 1.500×1.500×2.100 mm, internal opening, external lockable |
| Chamber pressure | Micro-positive pressure 0–50 Pa via pressure balance valves |
Features
Large-scale chamber capable of accommodating full-size vehicles
Supports integration with roller-type chassis dynamometers
Comprehensive environmental control: temperature, humidity, solar irradiation, and airflow
Heated, insulated, and observation-capable doors for vehicle and personnel access
Safety features: emergency lighting, pressure balance, CO/NOx monitoring, automatic alarm and shutdown
High load capacity floor suitable for vehicle weight and axle distribution
Multiple power supply options for testing electrical and HVAC systems
Precise instrumentation and calibration for temperature, humidity, and solar radiation simulation
Send product request
Other supplier products
 |
Minimum Ignition Energy (MIE) – Dust Cloud Tester，CE certified dust cloud ignition tester | Dust Cloud Minimum Ignition Energy Tester disperses a certain mass of dust specimen to be tested into the Hartmann tube device through a certain pr... |
 |
Catheter Guidewire Friction Tester | The Catheter Guidewire Friction Tester is designed to accurately measure the frictional forces between catheters and guidewires. It is a critical t... |
 |
Catheter Friction Tester | The Catheter Friction Tester is a precision instrument used to measure the surface friction properties of various tubular materials. Employing adva... |
 |
Solar Climatic Test Chamber 丨Solar Climatic Test mechine | Features and Benefits 1. Fully Compliant with IEC 61215 Specifically designed for the UV preconditioning test in PV module qualification. Ensures... |
 |

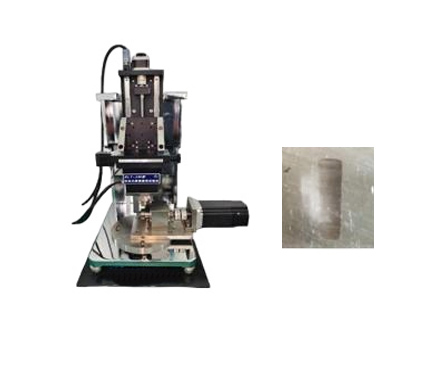

Ring-on-Block Friction and Wear Tester (Model 2M) | The Ring-on-Block Friction and Wear Tester (Model 2M) is a specialized instrument for evaluating the sliding friction and wear performance of mater... |
