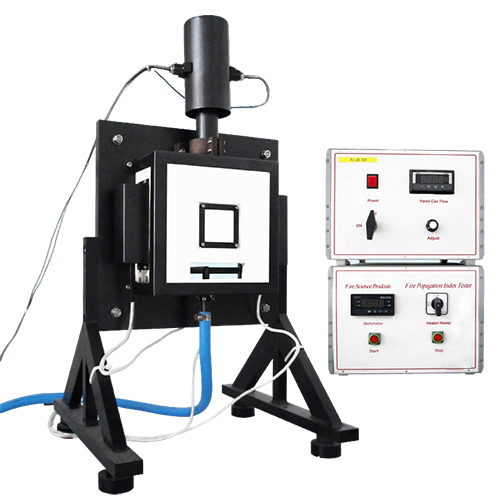

Flame spread index testing equipment
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Application
You can apply this tester in the following scenarios:
Building materials evaluation: Assess the flame spread index of wall and ceiling lining materials.
Plastic material testing: Determine vertical and horizontal flame propagation for polymer materials.
Fire safety compliance: Evaluate materials for civil, railway, and aerospace interior standards.
Quality control: Monitor production materials to ensure consistent fire performance.
Compatible test components: Tubular burner, quartz heaters, T-shaped burner, sample holders, thermocouples, and integrated computer data acquisition system.
Standards
This tester conforms to the following international and national standards:
GB/T 8624‑2012 — Classification of burning behavior of building materials and products (Flame spread index basis)
GB/T 2406.2‑2009 — Plastics combustion test, vertical burning method
GB/T 2408‑2008 — Plastics combustion test, horizontal burning method
GB/T 27904‑2011 — Flame spread test for interior decoration materials
GB/T 16172‑2007 — Determination of heat release rate and total heat release (Cone calorimeter method)
ISO 5658‑2 — Determination of flame spread index, Part 2: Small flame spread test
ISO/TR 9705‑2 — Room corner flame spread test, Part 2: Material performance evaluation
ISO 5660‑2 — Heat release rate, smoke production, and mass loss, Part 2: Flame spread method
ISO 5660‑4 — Heat release and smoke testing for automotive interior materials
ASTM E162 — Surface flammability: smoke density and flame spread
ASTM E648 — Flame propagation of carpet materials
UL 94 — Plastic material flammability: vertical and horizontal burning tests
BS 6853:1999 — Railway vehicle material flame spread, smoke density, and toxicity evaluation
BS 476‑6:1989 + A1:2009 — Fire performance test of building materials, Part 6: Small flame spread method
Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 950 × 600 × 870 mm |
| Weight | 105.5 kg |
| Heating Devices | 2 × 1000 W quartz heaters providing thermal radiation |
| Burner Type | T-shaped tubular burner |
| Sample Holders | 3 types, stainless steel wrapped |
| Thermocouples | Continuously measure temperature difference between chimney and room |
| Power Output Control | Automatic adjustment according to test timeline |
| Data Acquisition | Computer-based, report generation |
Accessories
Quartz radiation heaters (2 × 1000 W)
T-shaped tubular burner
Stainless steel sample holders (3 types)
Silicate combustion chamber
Thermocouples and mounting accessories
Integrated computer and printer with data acquisition system
