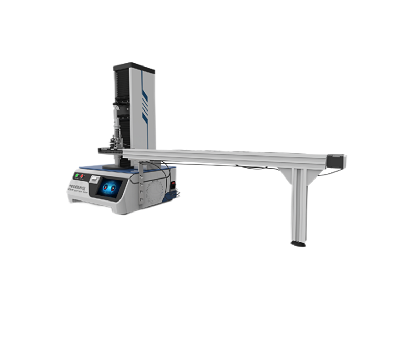

Catheter Flexibility Tester
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
The catheter flexibility tester is mainly used to evaluate the flexibility and durability of catheters or guidewires during bending or twisting processes. This equipment is widely applied in medical, industrial and other fields to ensure the safety and reliability of catheters during use. In the medical field, it is particularly suitable for evaluating the flexibility and durability of medical catheters such as blood vessel catheters, urinary catheters, and biliary catheters, ensuring that they will not cause harm to patients during use. In the industrial field, it can be used to assess the flexibility of catheters transporting fluids, gases and other media in different environments, ensuring their good performance during use. In addition, in fields such as aviation and automotive, the catheter flexibility tester is also used to evaluate the flexibility and durability of catheters under different temperature and pressure conditions.
Standards
ISO 10555 -Intravascular catheters- Sterile and single-use catheters
ISO 11o70- Catheter introducers, dilators, and guidewires
ASTM F2394-Guidewire mechanical property evaluation
ASTM F2908- Stiffness and flexibility of guidewires
ISO 178:2oo1 -Flexural properties of plastics (applicable to catheter materials)
Features
7-inch touchscreen interface with programmable test parameters and intuitive controls
Real-time force vs. displacement data acquisition with automated reporting
Dual-system control for independent force and displacement parameter setting
High-precision ball screw drive and guide mechanism for smooth operation
O.5% FS force sensor accuracy with resolution up to O.01 N
Supports catheter diameters up to 3.3 mm (customization available)
Advanced displacement control with O.1 mm accuracy
Pneumatic clamping system designed for fast, secure catheter mounting
Stores up to 1oo,ooo test records, supports audit trails and data export
Includes Rs232 interface and micro printer for traceable output
Technical Parameters
| Parameter | Specification |
|---|---|
| Testing Range (Force Range) | Usually 0 - 10 kilograms or more, depending on the tester's model and specifications |
| Testing Stroke | Varies in vertical & horizontal directions; e.g., vertical stroke: 0 - 300mm, horizontal stroke: 0 - 700mm |
| Testing Speed | - Press-down Speed: Adjustable within 0 - 300mm/min- Wire-drawing Speed (for applicable testers): 0 - 500mm/min or faster |
| Catheter Clamping Method | Usually adopts pneumatic or mechanical clamping, ensuring the stability and accuracy of the catheter during testing |
| Control System | Adopts PLC control system (high precision & stability); operation interface may be equipped with a color touch screen for convenient setting and operation |
