ASTM D6304 oil moisture tester
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Application
You can apply this unit in the following scenarios:
(1) Online or offline purification and filtration of hydraulic system oil;
(2) Removal of free and dissolved water from hydraulic oil;
(3) Degassing of hydraulic oil to reduce cavitation risk;
(4) Demulsification and regeneration of lubrication system oil;
(5) Maintenance of hydraulic and lubrication systems in industrial equipment, construction machinery, metallurgy, and power sectors.
Standards
You can operate this unit in compliance with the following standards:
(1) GB/T 18854-2015 – Hydraulic transmission: Determination of solid particle contamination levels in hydraulic oil;
(2) GB/T 14039-2002 – Hydraulic transmission: Oil contamination control and monitoring;
(3) GB/T 4207-2012 – Determination of water content in mineral-based lubricating oils;
(4) ISO 4406:2017 – Hydraulic fluid power: Coding of solid particle contamination levels;
(5) ISO 4407:2002 – Hydraulic fluid power: Particle counting method for contamination measurement;
(6) ISO 9110:1990 – Hydraulic fluid power: Filter performance test methods.
Parameters
| Parameter | Unit | Value |
|---|---|---|
| Rated Flow | L/min | 40 / 100 / 150 |
| Rated Pressure | MPa | 0.6 |
| Initial Pressure Loss | MPa | ≤ 0.2 |
| Coarse Filter Precision | μm | 100 |
| First-Stage Filter Precision | μm | 25 / 40 |
| Second-Stage Filter Precision | μm | 3 / 5 / 10 |
| Motor Power | kW | 1.1 + 0.75 / 2.2 + 1.1 / 4 + 1.1 |
| Power Supply | V | AC 380 |
Accessories
(1) Dedicated Gear Pump – Dual pump configuration for stable flow.
(2) Coarse Filter – 100 μm.
(3) First-Stage Precision Filter – 25 μm / 40 μm.
(4) Second-Stage Precision Filter – 3 μm / 5 μm / 10 μm.
(5) Motor – Dual-motor drive.
(6) Pressure Gauge – System pressure monitoring.
(7) Overflow Valve – Overpressure protection.
(8) Heating System – Independent heating module for low-temperature operation.
(9) Consumable Filter Elements – Replaceable as needed.
Send product request
Other supplier products
 |
Benchtop Multi-Function Friction and Wear Tester | Benchtop Multi-Function Friction and Wear Tester is a compact yet highly precise tribological testing system designed for friction and wear measure... |
 |

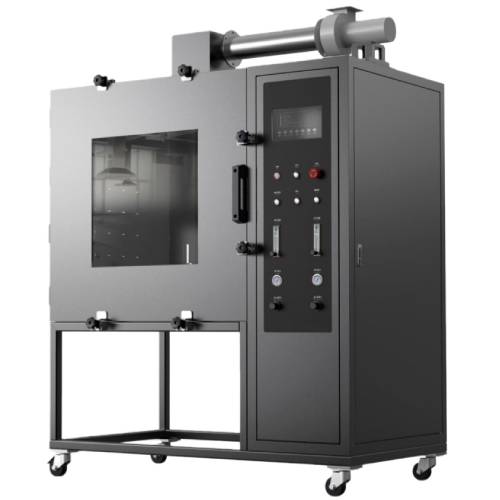

Smoke Toxicity Test Equipment for Navy Engineering | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The NES 713 Navy Engineering Smoke Toxicity Test Chamber is suitable for evalu... |
 |
Catheter Mechanical Strength Measuring System | Product Introduction The Urinary Catheter Strength Tester is designed to determine the physical strength characteristics of urinary catheters, ser... |
 |

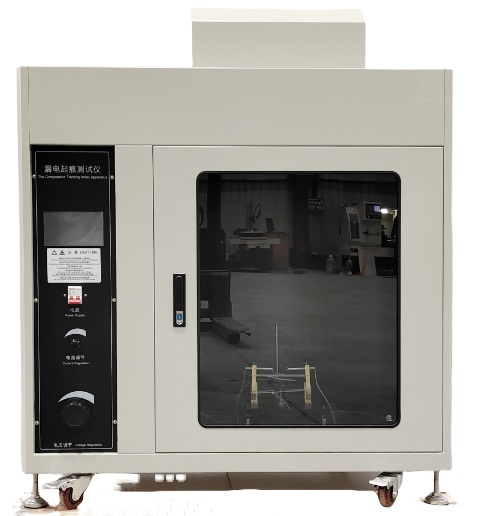

Benchtop tracking index tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The Tracking Tester is suitable for testing the tracking resistance of various... |
 |
