Product Introduction:
It is used to measure the resistance value with a certain density under a certain geometry, and then converts it into the specific resistance value of the fiber according to the filling degree of the fiber
Applicable standards:
GB/T 14342-1993 "Synthetic short fiber specific resistance test method"
Technical parameters:
1. fiber specific resistance measurement range :10^6Q——10^13Q
2. test sample weight :15g
3. the measurement voltage is 50V, 100V, the deviation is less than 5%
4. working environment temperature :20℃ —— 2℃， humidity :65% —— 10%RH
5. the instrument in a stable operating voltage and no signal input between 1- 8 hours of zero drift less than 4% soil
6. the basic error of the instrument to the standard resistance measurement :≤ soil 20%
7. Power supply :AC220V
8. overall size :450x265x133mm(LxWXH)
Product Advantages:
Standard Compliance: Adheres to the latest national standard GB/T 14342-2015 for specific resistance testing of man-made staple fibers.
Wide Measurement Range: Capable of measuring fiber specific resistance from 106Ω to 1013Ω.
Accurate Voltage Application: Provides precise 50V and 100V measurement voltages with less than 5% deviation.
Stable Operation: Designed for stability in specified working environment conditions (temperature and humidity), ensuring consistent results.
Low Zero Drift: Exhibits low zero drift (less than 4% over 1-8 hours) when operating voltage is stable and no signal is input.
High Basic Accuracy: Features a basic error of ≤±20% against standard resistance measurements.
Compact Design: With its overall dimensions, it is suitable for laboratory benchtop use.
Indirect Measurement: Ingeniously converts the measured resistance of a compacted fiber sample to the specific resistance of the fiber.
Product Features:
Resistance Measurement System: Core component for accurately measuring the resistance of the fiber sample.
Fiber Compaction Chamber: A mechanism to pack the test sample (15g) to a specific density and geometry, crucial for converting bulk resistance to specific resistance.
Voltage Application: Applies stable test voltages of 50V and 100V.
Digital Display (Implied): For presenting the measured resistance values and calculated specific resistance.
Environmental Condition Requirements: Designed to operate accurately within a specified temperature range (20∘C±2∘C) and humidity range (65%±10%RH).
Stable Design: Components and circuitry engineered for minimal zero drift over prolonged periods.
User Interface: (Implied) for setting parameters and initiating tests.
Send product request
Other supplier products
 |
Sloped Impact Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standard ASTM D7748: Impact resistance testing of packaging and transport systems. IS... |
 |

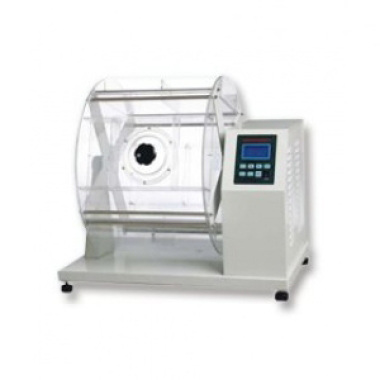

Fabric Downproof Tester (Rolling Box) | Feather Leakage Testing Machine Manufacturer | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com Features (1) Automated operation with computer control, auto-shutdown, and a... |
 |
