Desktop Constant Temperature Humidity Storage Test chamber

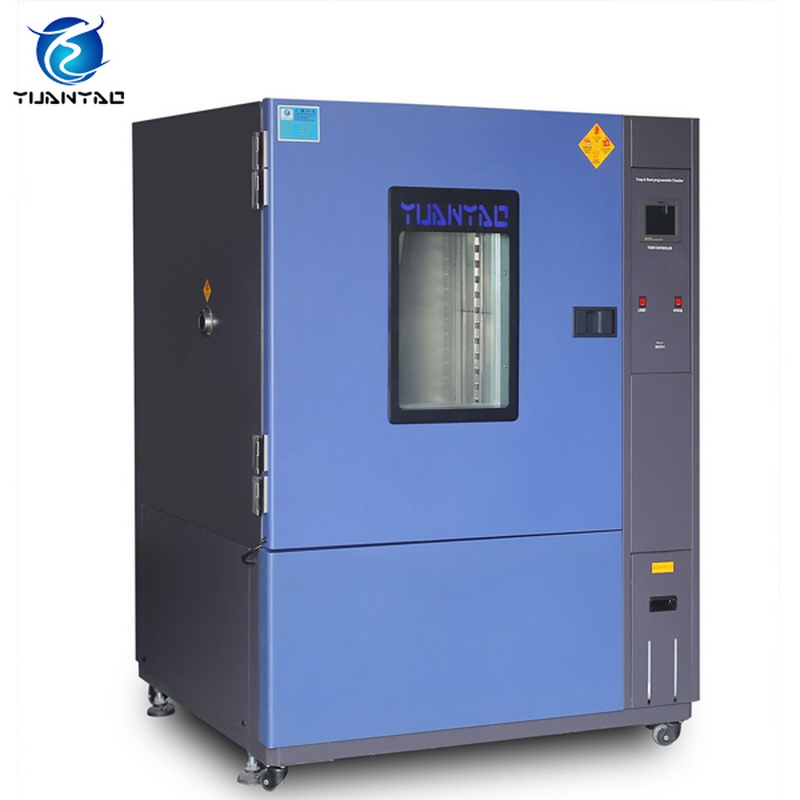

Desktop constant temperature and humidity storage cabinet(YCT-080)

Introduction&Application:

Desktop constant temperature and humidity storage cabinet ( climatic/ climate/ environment/environmental test chambers) simulate the effects that a range of temperature and humidity conditions have on a product or material, for example telecommunications equipment or photovoltaic solar panels that are exposed to outdoor temperature and humidity conditions. They have applications in industries as disparate as food science, semiconductors, and military quality assurance. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field. Climate test chambers come in a variety of sizes, from a small box that fits on the bench top to a room-sized chamber for large objects or for testing large batches of product simultaneously. Temperature ranges from 0° C to 150° C and relative humidity ranges between 20% and 98% are available. A climate test chamber can also be used when constant climate conditions (temperature and/or humidity) are needed for product testing.

Feature:

1 Large system capacity: 120 patterns*1200 steps

2 Circulation Setting: Max. 9999 cycles.

3 PID+SSR/SCR controller.

4 Curves drawing.

5 Safety device

6 RS-232&RS-485 communication interface.

7 CE certification

8 Touch screen controller

9 Best after sales service: One year free parts maintenance.

10 Meet international test standards.

11 Customization is available & welcomed.

Technical parameters, please read below table.

More details about the specification, please contact us, thanks for your attention.

Except Desktop constant temperature and humidity storage cabinet, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Welcome to enquire and purchase!

Model YCT-080
InternalDim.W×H×D(mm) 400×500×400
ExternalDim.W×H×D(mm) 1150×1000×1150
TemperatureRange 0ºC~+150ºC
HumidityRange 20%HR~98%HR

Ferformance
Temp.&HumiFluctuation ±0.2ºC;±0.5%RH
Temp.&HumiUniformity ±1.5ºC;±2.5%RH
IndicationResolution 0.1ºC;0.1%RH
Heat-at
Time(20ºC~HT)
ºC 100150
min 3040
Pull-down
Time(20ºC~LT)
ºC 0-20-40
min 254050
Material Exterior Stainlesssteelplate+PowderCoated
Interior SUS#304stainlesssteelpiate
Insulation PU&Fiberglasswool
Systems Cirulation Sirocofan
Heating SUS#304stainlesssteelhigh-speedheater
Humidifying Surfaceevaporatingsystem
Cooling Airtightcompressor+vaporatorfins+air-coolingcondenser
Dehumidifying ADPCriticaldewpointcooling/dehumidifyingmethod
Controller Digitalelectronicindicatrs+S.S.R.WithPIDautomaticcalculationcapabilty
OtherComponents Vacuumglassinspectinwindow,cableport(60mm),controlstatusindicatorlights,chamberlamp,expermentseparationshelves(freelyadjustable2pcs)
SafetyDevices Overheatingpreventioncircuit-breaker,compressoroverloadprotection,controlsystemoverloadprotection,humidifyingsystemoverheadingdryingoutprevention,breakdownindicatorlight
PowerSource[K.W.] AC1¢220V60/50Hz
