Nissan Scratch Tester-QINSUN
Standard
ASTM D7027(Standard Test Method for Scratch Resistance of Polymeric Coatings and Plastics)
ISO 1518(Paints and Varnishes — Determination of Scratch Resistance)
JIS K 5600-5-6(Scratch Hardness Test for Coatings)
Product Advantages
Precision Scratch Analysis
Proprietary load cell technology (±0.01 N accuracy) captures micro-scratch behavior, critical for coatings and thin films.
Multi-Material Compatibility
Tests metals, polymers, ceramics, and coated surfaces with adjustable speed (1–200 mm/s) and load (0.5–50 N).
Automated Testing Protocols
Pre-loaded ASTM/ISO/JIS test modes with AI-driven load ramp and scratch pattern optimization.
High-Resolution Imaging
Integrated 4K microscope (10–200x magnification) captures scratch morphology in real time.
User-Centric Design
10.1-inch touchscreen interface with multilingual support (English, Japanese, German, Chinese) and one-touch calibration.
Product Features
Testing Modes
Linear Scratch: Single-pass testing for coatings and films.
Reciprocating Scratch: Multi-cycle abrasion for wear simulation.
Progressive Load: Automated load increments (0.5–50 N) for critical failure analysis.
Real-Time Monitoring
High-speed data acquisition (10.000 Hz) tracks friction, load, and displacement simultaneously.
Data Management
Cloud-compatible software stores 50.000+ test results and generates ISO/ASTM/JIS-compliant reports.
Safety & Compliance
Overload protection, emergency stop, and CE/UL certification for laboratory safety.
Technical Parameters
| Parameter | Specification |
|---|---|
| Load Range | 0.5–50 N (±0.01 N accuracy) |
| Speed Range | 1–200 mm/s (±0.1 mm/s accuracy) |
| Scratch Length | 5–100 mm (adjustable) |
| Microscope Magnification | 10–200x (4K resolution) |
| Dimensions (L×W×H) | 800×600×1.200 mm |
| Weight | 150 kg |
| Operating Environment | 15–35°C, ≤85% RH (non-condensing) |
| Power Supply | 220V/110V AC, 50/60Hz, 800W |
Accessories Included
Scratch Heads:
5× diamond indenter tips (Rockwell C geometry).
10× spherical stylus (1–10 mm radius).
Calibration Tools:
Load cell verifier, scratch depth gauge, and NIST-traceable certificate.
Sample Fixtures:
Pneumatic clamps for flat/curved specimens, vacuum chuck for thin films.
Software Suite:
AI analytics platform with scratch simulation, ERP integration, and 8-language report generator.
Safety Bundle:
Emergency stop, acoustic enclosure, and fume extraction port.
Ideal For:
Automotive OEMs (paint, trim, and interior coating durability)
Electronics manufacturers (screen protectors, polymer casing testing)
Medical device makers (biocompatible coating scratch resistance)
Research universities (advanced material innovation)
Send product request
Other supplier products
 |

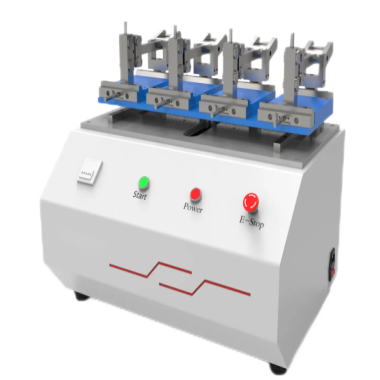

4-station Leather Rubbing Color Fastness Tester | Applicable Standards The tester adheres to global colorfastness and material testing protocols, including: ISO 11640(Leather – Color fastne... |
 |
Rail transit car wire abrasion testing machine | Applicable standards: GBIT 12528-2008 Standard for cables for rail transit vehicles with a rated AC voltage of 3KV and below Main parameters:... |
 |
Taber Abrasion Tester (Double-Head) | Standards DIN Standards: DIN 53754 (plastics), DIN 53109 (paper/board), DIN 52347 (glass/plastics) ASTM Standards: ASTM D1044 (transparent plas... |
 |

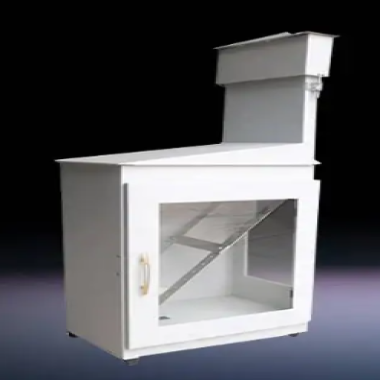

Fireproof coatings tester chamber method | Standards GB 14907—1994、GB 14907—2002、ETAG：2006、BS 8202:1992:2 Sample making 1. The test plate of the fireproof coating tester (smal... |
 |
