Automotive Wires Ozone Aging Chamber
Standards
- ISO 6722: Road vehicles – Electrical cables – Dimensions and test methods.
- SAE J1128: Low-voltage cables for automotive applications.
- QC/T 730: Automotive wire bundle ozone resistance test method (China).
- JASO D611: Automotive parts – Ozone resistance test for rubber and plastics (Japan).
Product Advantages
- Unmatched Compliance: Certified for global automotive standards, ensuring seamless integration into OEM and Tier 1 supply chains.
- Precision Ozone Control: Advanced generators maintain stable concentrations (10–1000pphm) with ±10% accuracy, critical for simulating harsh engine bay environments.
- Smart Design: Rotating sample rack (2RPM adjustable) mimics real-world mechanical stress during aging tests.
- Energy Efficiency: 3.5KW power consumption with rapid heating/cooling cycles reduces operational costs.
- Safety Certified: CE-marked with over-temperature protection and ozone leak detection for lab safety.
Product Features
- Dual-Zone Climate Control:
- Temperature Range: RT +10°C to 60°C (adjustable via PID controller).
- Uniformity: ±2°C across 400x500x500mm workspace.
- Stability: ±0.5°C fluctuation, ±2°C deviation.
- Ozone Generation System:
- Corona discharge generator with real-time concentration display.
- Automatic calibration for consistent exposure levels.
- Data-Driven Testing:
- Built-in data logger records temperature, humidity, and ozone levels.
- USB export for traceable test reports.
- Ergonomic Access:
- Full-view observation window with anti-ozone glass.
- Quick-release door seal for easy sample loading.
Technical Parameters
| Parameter | Specification |
|---|---|
| Chamber Dimensions | 400mm (W) x 500mm (D) x 500mm (H) |
| Temperature Range | RT +10°C to 60°C |
| Temperature Control | PID microprocessor, ±0.5°C stability |
| Ozone Concentration | 10–1000pphm (adjustable), ±10% deviation |
| Rotation Speed | 0–5RPM (adjustable via touchscreen) |
| Power Supply | 380V/50Hz (220V/60Hz optional) |
| Power Consumption | 3.5KW (peak) |
| Noise Level | ≤65dB |
| Controller | 7” touchscreen with multi-language support |
Accessories
- Main Unit: Ozone aging chamber with dual-zone climate control.
- Sample Rack: Rotating stainless-steel holder (2RPM adjustable).
- Ozone Sensor: High-precision detector with calibration certificate.
- Safety Kit: Anti-ozone gloves, gas mask, and emergency shutoff remote.
- Software: PC data analysis tool for trend visualization (USB included).
- Documentation: Multilingual user manual, warranty card, and compliance certificates.
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
Send product request
Other supplier products
 |
Geosynthetics Horizontal Penetration Tester | Scope of application: Used to determine the horizontal permeability of geosynthetics under constant head flow conditions. Under the conditions of ... |
 |
Automotive Wires Flammability Tester-QINSUN | Compliance Standards FMVSS 302 (Federal Motor Vehicle Safety Standard) ISO 6722 (Road Vehicle Cable Flammability) UL 94 (Tests for Flammability ... |
 |
Melt wire drawing apparatus | Product Introduction: Melt wire drawing instrument is specially designed for the production of rubber and plastic raw material filamentary sample,... |
 |
Veslic Multi-Functional Material Tester for Advanced Quality Control-QINSUN | Standard ISO 13934-1(Tensile Properties of Fabrics) ASTM D624(Tear Strength of Rubber and Elastomers) AATCC 135(Dimensional Changes in Textiles ... |
 |
Qinsun SUNTEST丨Xenon Arc Weathering Instruments | Modern desktop models, ideal instruments for 3D samples, equipped with various easy-to-use accessories, allowing SUNTEST to meet your different nee... |
Same products
 |

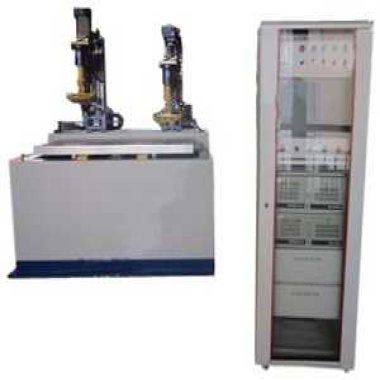

Seat Bumping and Creep Test Bench | Seller: Standard International Group (HK) Limited | This test bench is used for simulating the car seat bumping and creep situation when a car is run... |
 |
