Solid Auto - ignition Point Tester
This tester determines the self - ignition characteristics of solid chemical products by placing the substances in a 20mm - side - length cubic wire mesh and increasing the temperature. It complies with standards such as GB/T 21756 - 2008 *Determination of the Relative Self - Ignition Temperature of Solid Substances in Chemical Products for Industrial Use* and NF T20 - 036.
Applications
This testing instrument provides data on the spontaneous combustion of solid products induced by high temperatures, thereby determining the spontaneous combustion properties of solid chemical products. The instrument is not suitable for explosive products, products that spontaneously combust at room temperature or in air, or products that melt under these experimental conditions. This instrument supports two testing modes: "Standard Test" and "Self-Test Mode." The "Standard Test" is used to determine the spontaneous combustion properties of solid substances, while the "Self-Test Mode" is used to calibrate the temperature sensor, ensuring the reliability of the test accuracy. This instrument meets all requirements for solid spontaneous combustion point testing and features automatic heating and temperature control functions, greatly facilitating the production and transportation supervision of solid substances.
Standards
It meets the requirements of GB/T 21756-2008 "Determination of Relative Autoignition Temperature of Solid Substances for Industrial Use", French National Standard NFT "Determination of Relative Autoignition Temperature of Solid Solids for Industrial Use", and NY/T1860 "Experimental Guidelines for the Determination of Physicochemical Properties of Pesticides" Part 24: Relative Autoignition Temperature of Solids.
Features
1. It adopts an embedded processor and the Windows CE operating system.
2. With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time.
3. It supports two working modes, the "standard mode" and the "custom mode" (during the custom experiment, it can save the exothermic peak value in real - time, etc.), taking into account both the standardization and flexibility of the test.
4. It integrates high - temperature heat - insulation technology, temperature control, and precise detection technology.
5. It uses an electrically heated muffle furnace with natural air - circulation convection to ensure uniform heating of the samples.
6. The furnace cavity is made of heat - insulating vacuum ceramic fiber, which has a good heat - insulation effect.
7. The cubic wire mesh is hung at the bottom of the furnace cover, making it safe and convenient to place samples.
8. It realizes automatic heating control, temperature control, and combustion detection.
9. A cleaning rod is provided for cleaning the inner cavity's central through - hole.
10. A debris tray is provided to collect samples falling from the wire mesh and residual samples cleaned out by the rod.
11. A cooling bracket is provided to place the assembled furnace cover on it for cooling after the test.
12. It uses a thermocouple sensor to quickly and accurately respond to temperature changes.
13. It displays the time - temperature curve in real - time, and the original data can be viewed.
14. The test process is fully automated, requiring no manual intervention. It supports functions such as parameter setting, data storage, and report viewing.
Technical Parameters
|
Working Environment |
(5～40)℃, <85%RH |
|
Test Objects |
Solid |
|
Temperature Control Range |
Room temperature～650℃ |
|
Standard Rise Rate |
0.5 ℃/min |
|
Customized Rise Rate |
(0.1～3.0)℃/min |
|
Temperature Measurement Range |
(0～800)℃ |
|
Temperature Measurement Resolution |
0.1 ℃ |
|
Temperature Measurement Accuracy |
±2.5 ℃ below 300 ℃ |
|
Heating Chamber Capacity |
±(0.75% of the reading) above 300 ℃ |
|
Timing Range |
2L |
|
Mesh Cage Size |
(0～96)h |
Accessoriess
1. Core Operating Components
Test Carrier Component: 20mm side length cubic metal mesh (for loading solid samples, matching standard test requirements);
Heating Unit: High-temperature muffle furnace with natural air circulation convection (ensuring uniform sample heating);
Furnace Chamber System: Vacuum ceramic fiber furnace chamber (excellent thermal insulation) + furnace lid with bottom hooks (for easy sample placement);
Temperature Monitoring Component: Thermocouple sensor (fast and accurate response to temperature changes);
Control and Display Module: Embedded processor, Windows CE operating system, 8-inch LCD touchscreen (real-time display of test status and time-temperature curve);
Operational Auxiliary Components: Cleaning rod (for cleaning the furnace chamber interior), debris tray (for collecting sample residue), cooling bracket (for placing the furnace lid for cooling after testing);
Functional Unit: Automatic heating/temperature control module (supporting precise temperature control).
2. Auxiliary Accessories
Sample Processing: Sample spoon (for quantitative solid sample taking), sample grinding/sieving tools (to ensure uniform sample particle size);
Calibration and Maintenance: Standard auto-ignition point sample (for instrument accuracy calibration), high-temperature resistant protective gloves (for operating the furnace lid);
Data Management: USB flash drive (for exporting test data, time-temperature curves, and reports).
Test Procedures
1. Core Operating Components
Test Carrier Component: 20mm side length cubic metal mesh (for loading solid samples, matching standard test requirements);
Heating Unit: High-temperature muffle furnace with natural air circulation convection (ensuring uniform sample heating);
Furnace Chamber System: Vacuum ceramic fiber furnace chamber (excellent thermal insulation) + furnace lid with bottom hooks (for easy sample placement);
Temperature Monitoring Component: Thermocouple sensor (fast and accurate response to temperature changes);
Control and Display Module: Embedded processor, Windows CE operating system, 8-inch LCD touchscreen (real-time display of test status and time-temperature curve);
Operational Auxiliary Components: Cleaning rod (for cleaning the furnace chamber interior), debris tray (for collecting sample residue), cooling bracket (for placing the furnace lid for cooling after testing);
Functional Unit: Automatic heating/temperature control module (supporting precise temperature control).
2. Auxiliary Accessories
Sample Processing: Sample spoon (for quantitative solid sample taking), sample grinding/sieving tools (to ensure uniform sample particle size);
Calibration and Maintenance: Standard auto-ignition point sample (for instrument accuracy calibration), high-temperature resistant protective gloves (for operating the furnace lid);
Data Management: USB flash drive (for exporting test data, time-temperature curves, and reports).
Send product request
Other supplier products
 |
Rapid Closed Cup Flash Point Tester | Reference Standards： SN/T 3077.1、SN/T 3077.2. SH/T 0768. DL/T 1354. ASTM D93、ASTM D6450、ASTM D3828、ASTM D7094、ASTM D7236、ASTM D56、ASTM D56、ASTM... |
 |
Thrust Washer Friction Testing Machine | Applicable standards When the end face rotary friction and wear testing machine is tested, it is usually necessary to follow certain standards and... |
 |
Carbon Black Content Tester | Standards GB/T 2951.41-2008: Test methods for cable and optical fiber insulating/sheathing materials. GB/T 3515-2005: Pyrolysis method for carb... |
 |

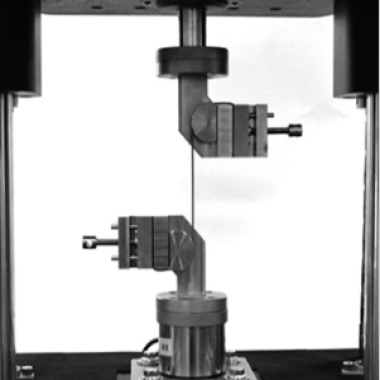

Metallic Cables and Wire Ropes Mechanical Property Testing Machine | Standard YY/T 0812-2010 (China): Specifies mechanical testing protocols for metal cables/cables used in fracture fixation, including fatigue stren... |
 |
