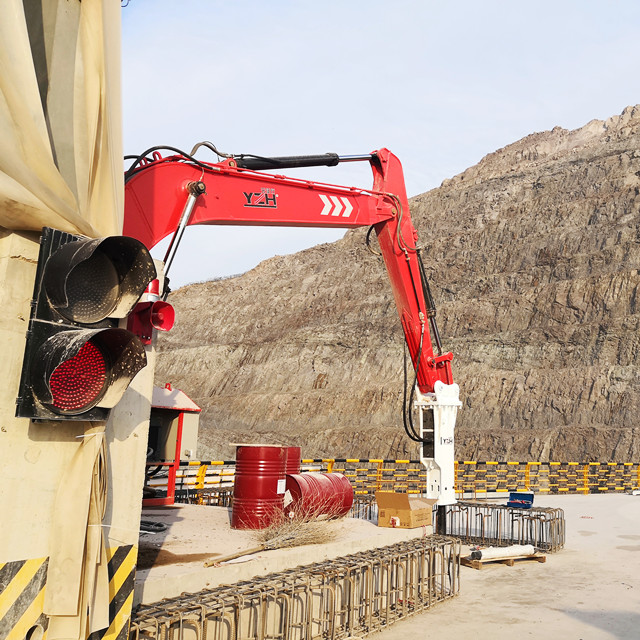

Pedestal Rockbreaker System
In the fiercely competitive industrial market, a high-performance and reliable equipment is the key to enhancing a company's competitiveness. Pedestal Rockbreaker System， With its various advantages, it has become a reliable and trustworthy partner in industrial production.Here is an introduction to the WHEN1510 Pedestal Rockbreaker system.
Main componentsof WHEN1510 Pedestal Rockbreaker system：
The Pedestal Rockbreaker System consists of a fixed base, swivel seat, upper arm, second arm, shock absorber components, attachments, etc. Using 3D drawing software for multi-directional simulation, determine the optimal working and installation range, and analyze the structure using finite element method to ensure that the equipment performance meets the requirements. The main body of the equipment adopts a box type frame structure welded with high-quality steel plates, which has strong rigidity and good torsional resistance. The upper arm and second arm shells are welded with high-strength, fine-grained steel plates, which have outstanding anti brittle fracture safety performance. The arm group steel structure adopts a large-sized box design, and the locally reinforced steel plate optimized design better withstands the lateral and torsional loads generated by the hammer head movement. High performance shock-absorbing components or rubber pads are used around the equipment base, which can greatly reduce the damage of impact loads to the entire machine and foundation structure.
Main application scopeof WHEN1510 Pedestal Rockbreaker system：
This Pedestal Rockbreaker System has a wide range of applications, covering mines, quarries, sand and gravel yards, metallurgical smelters, foundries, cement plants, ladle slag plants, power plants, ports and docks, auxiliary dump trucks for unloading railway open cars, building materials, highways, railways, water conservancy and chemical industries, and many other sectors. It can play an important role in different industrial scenarios, improving production efficiency and reducing labor intensity for enterprises.
Technical specifications of WHEN1510 Pedestal Rockbreaker system：
In terms of technical specifications, the Pedestal Rockbreaker System has strong power with a power range of 18-110 kW, which can meet the needs of different working intensities. The length of the working arm is between 4880-20400mm, and the appropriate arm length can be selected according to the actual working scenario to achieve the best working effect.
In order to meet the personalized needs of customers, YZH can not only provide products with specified specifications, but also customize crushing machinery equipment that is more in line with the actual working conditions of customers. Whether it's a special work environment or unique homework requirements, YZHcan provide you with solutions.
If you are struggling to find a reliable industrial equipment, consider the YZH Pedestal Rockbreaker System. We look forward to working together with you to create a better future.
