YZH WHEN1410 Stationary Pedestal Rockbreaker
YZH WHEN1410 Stationary Pedestal Rockbreaker is a specialized equipment designed for secondary crushing of large-sized materials in mining, metallurgy, and related industries. By replacing attachments (such as hydraulic hammers or lotus claws), it can perform multiple functions including crushing, grabbing, and demolition.
Main parameters of WHEN1410 Stationary Pedestal Rockbreaker:
Core Function: Secondary crushing and processing of large-sized materials
Primary Components: Hydraulic power unit (power source), slewing bearing system, boom/arm working system, control system
Drive Method: Electro-hydraulic drive
Control Method: Cab operation, remote control (including video remote control)
Horizontal Working Range: 4.88 meters to 20.4 meters
The Features of the YZH WHEN1410 Stationary Pedestal Rockbreaker:
Pure Electric Drive: Utilizes electric motors as the power source, emitting zero exhaust during operation.
Extremely Low Energy Consumption: Compared to diesel equipment of equivalent power, energy consumption is reduced by over 50%, with operating costs approximately 1/6th of those for excavators of similar power.
High-Strength Design: Primary structural components utilize premium special steel or manganese steel, offering lightweight construction, high load-bearing capacity, and superior wear resistance.
Multi-Functional Attachments: Front end supports rapid interchange of hydraulic hammers, lotus claws, hydraulic shears, grapples, and other attachments, enabling “one machine, multiple functions.”
Flexible Working Range: Wide horizontal reach with swing angles up to 170° or 360°, covering extensive areas.
Multiple Control Methods: Supports cab operation, wired/wireless remote control, and can be upgraded to remote video control for extended reach.
Enhanced Safety: Enables remote operation, keeping workers completely out of hazardous zones like falling rocks and dust, significantly improving safety.
Harsh Environment Adaptability: Features a sealed structure and can be equipped with low-temperature heating or high-temperature cooling devices, enabling operation in diverse conditions like underground mines, high altitudes, and high-temperature steel mills.
High Reliability: The core hydraulic system delivers dependable performance with a significantly reduced failure rate compared to traditional equipment, ensuring continuous operation.
The Application of the YZH WHEN1410 Stationary Pedestal Rockbreaker:
This equipment is specifically designed to address bottlenecks in production lines. Below are some typical application scenarios:

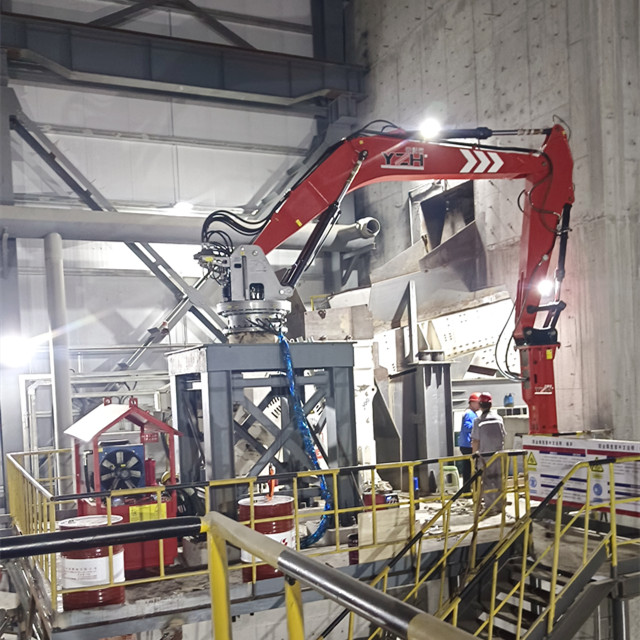

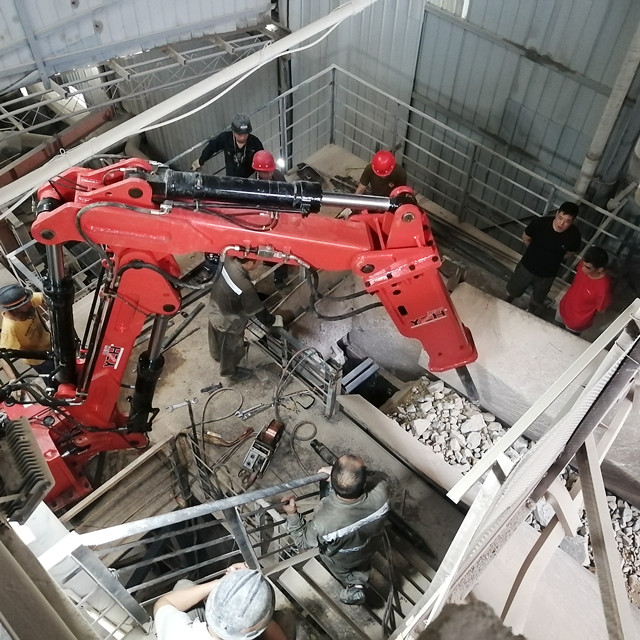

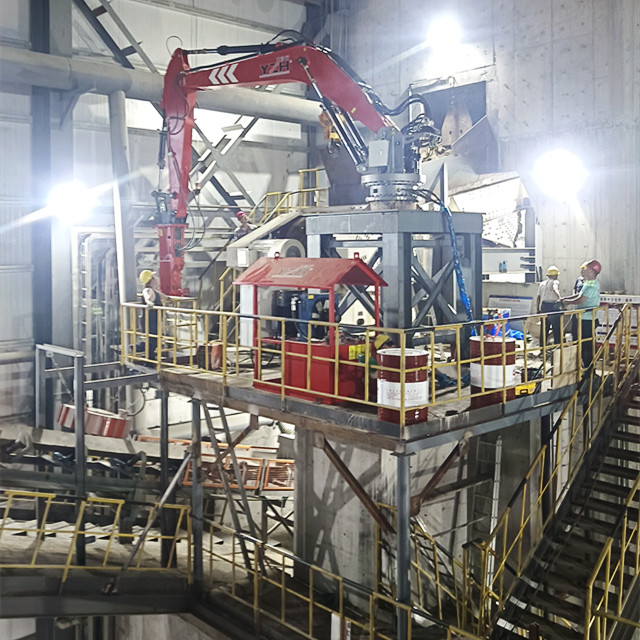

Scenario: Installed at the discharge port of equipment such as jaw crushers or gyratory crushers to break up large, jammed ore blocks, preventing blockages and protecting downstream crushers.
Function: Ensures continuous production line operation, boosting primary crusher output by up to 20%.
Scenario: Employed for hot-state operations like shell removal, brick dismantling, slag cleaning, and ladle disassembly in metallurgical furnaces and ladles.
Function: Replaces manual labor, improving safety and efficiency in high-temperature, high-risk environments.
Scenario: Widely used in cement plants, chemical factories, waste treatment facilities, and port handling stations to address blockages caused by large materials.
