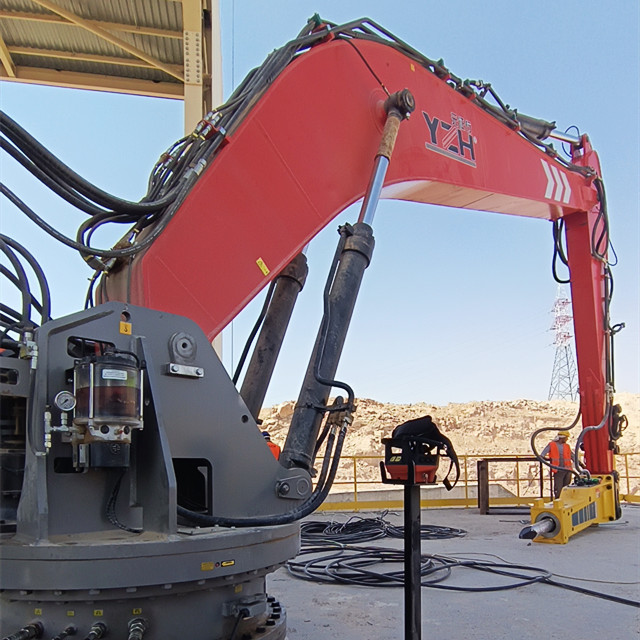

YZH WHD1000 Breaker Booms
The WHD1000 belongs to YZH's WH Series Breaker Booms, primarily designed for secondary crushing operations in mining and similar scenarios. Below is a detailed introduction covering its features, advantages, and specific case studies:
The Features of WHD1000 Pedestal Rockbreaker:
This robotic arm employs an electro-hydraulic drive system paired with a dedicated power unit, achieving optimal efficiency between the working arm and hydraulic hammer. Its boom is constructed from rectangular steel, featuring large-diameter cylinders and reinforced pins. The slewing motor incorporates a buffer brake, complemented by a high-performance shock absorption system that minimizes impact loads during operation. It supports multiple control methods including cab operation, wireless remote control, and fiber-optic 5G remote operation. Remote control range extends to 10-20km, with flexible control enabling precise positioning. Its modular design accommodates various front-end tools like hydraulic hammers and lotus claws, adapting to different tasks such as crushing and grabbing.
The Benefits of WHD1000 Pedestal Rockbreaker:
First, energy-efficient and economical—its motor-driven system produces zero emissions, reducing energy consumption by over 60% compared to traditional diesel equipment. Operating costs are only one-sixth of fuel expenses for excavators of equivalent power. Second, high efficiency with low failure rates—equipped with a premium hydraulic breaker, it boosts crushing output by 20% while reducing failure rates by 85% compared to conventional diesel units, ensuring uninterrupted operation. Third, strong adaptability enables long-term operation in harsh environments like corrosion, explosion-proof zones, and high altitudes. Customization is available based on client conditions and environmental factors. Fourth, low maintenance costs stem from optimized structural design and reliable core components, facilitating easy upkeep while reducing crusher wear and extending the entire production line's lifespan.
The Application of WHD1000 Pedestal Rockbreaker:
Hongshi Cement Group Customization Case: Hongshi Cement Group has repeatedly customized this series of fixed mechanical arms for raw material crushing in cement production. Installed at the crusher feed hopper, the arms specifically handle large, hard rock blockages, preventing production line shutdowns due to material jams. This improves workers' operating environment, ensures production continuity, and significantly boosts overall cement production efficiency.
Large Mining Group Application Case: In mining projects for major state-owned enterprises like China National Gold Group and Jinchuan Group, the WHD1000 and its series of robotic arms are deployed at locations such as the feed openings of underground mine skip hoists and the grid openings of open-pit quarries. By performing secondary non-explosive crushing of large ore blocks, it resolves efficiency issues caused by material blockages in mining operations. The remote control mode eliminates personnel exposure in high-risk zones, significantly enhancing mining safety.
Metallurgical Industry Application Case: Some metallurgical smelters install this robotic arm beside metallurgical furnaces to process ladle slag. Its powerful crushing force rapidly breaks down large slag chunks, while its quiet hydraulic vibration crushing mode meets environmental requirements in metallurgical workshops. The modular design enables quick tool switching to adapt to different slag processing scenarios, ensuring smooth smelting processes.
