YCS Integrated Microscope 3D Positioning Light Source with UV curing lamp, expandable thermal imaging and cooling fan for mobile motherboard repair. YCS Microscope Tool With high CRI LED lighting, UV curing and thermal imaging compatibility, compatible with most microscopes, suitable for mobile repair, laptop repair, electronic PCB soldering, BGA chip micro soldering, etc.
Features:
1. Adjustable high color light source, bright and soft light can be adjusted at will. 95% high color rendering light source, adjustable brightness lamp beads focus design, more translucentirradiation.
2. Optional expansion slots to achieve different maintenance auxiliary functions, including UV light + infrared thermal imaging + fan.(Please note that the thermal camera module needs to be purchased separately!)

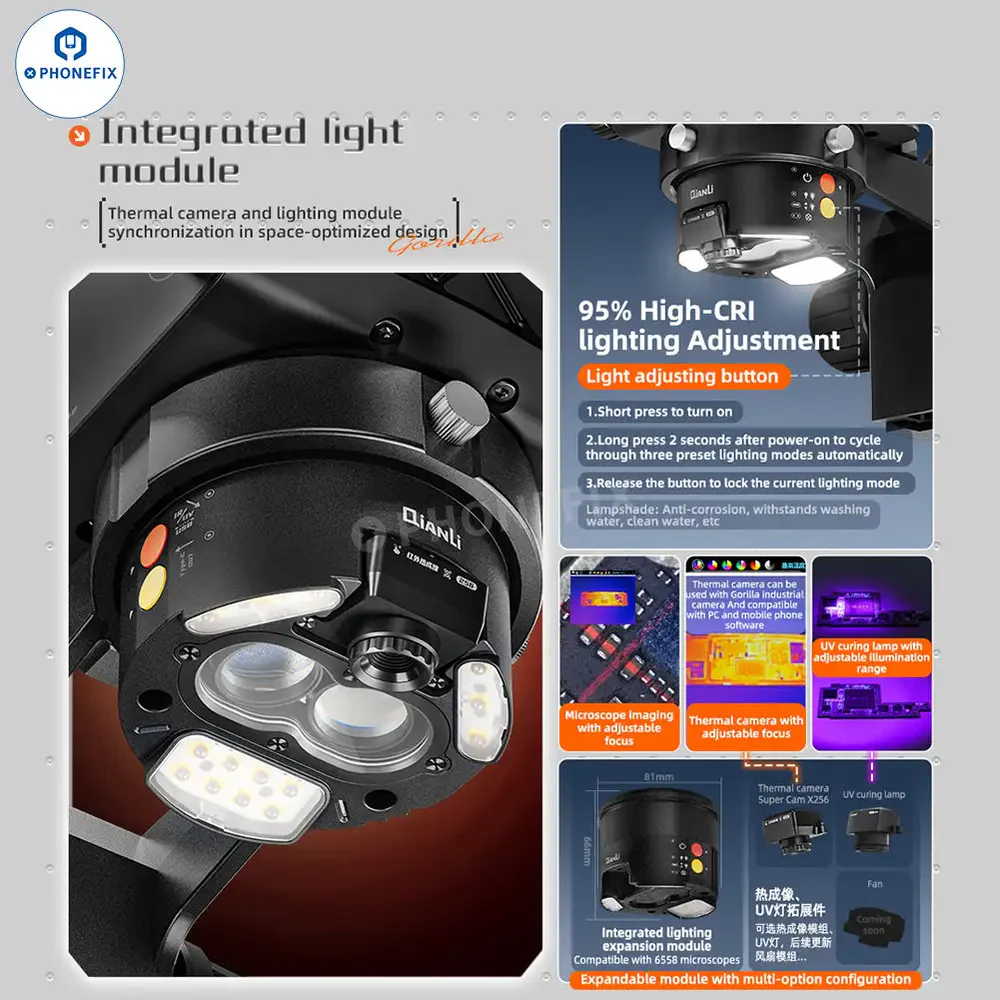

3. Integrated light module, thermal camera and lighting module synchronization in space-optimized design.
4. Thermal camera synchronization and expansion port (detect short circuits), UV curing lamp (405 nm) can instantly harden the adhesive, fan-cooled LED lamp (95% CRI) - no overheating during long-term use.
5. Workshop-friendly portability, compact 81x67mm body (lighter than a smart) with non-slip base. Type-C charging supports 8 hours of continuous use.

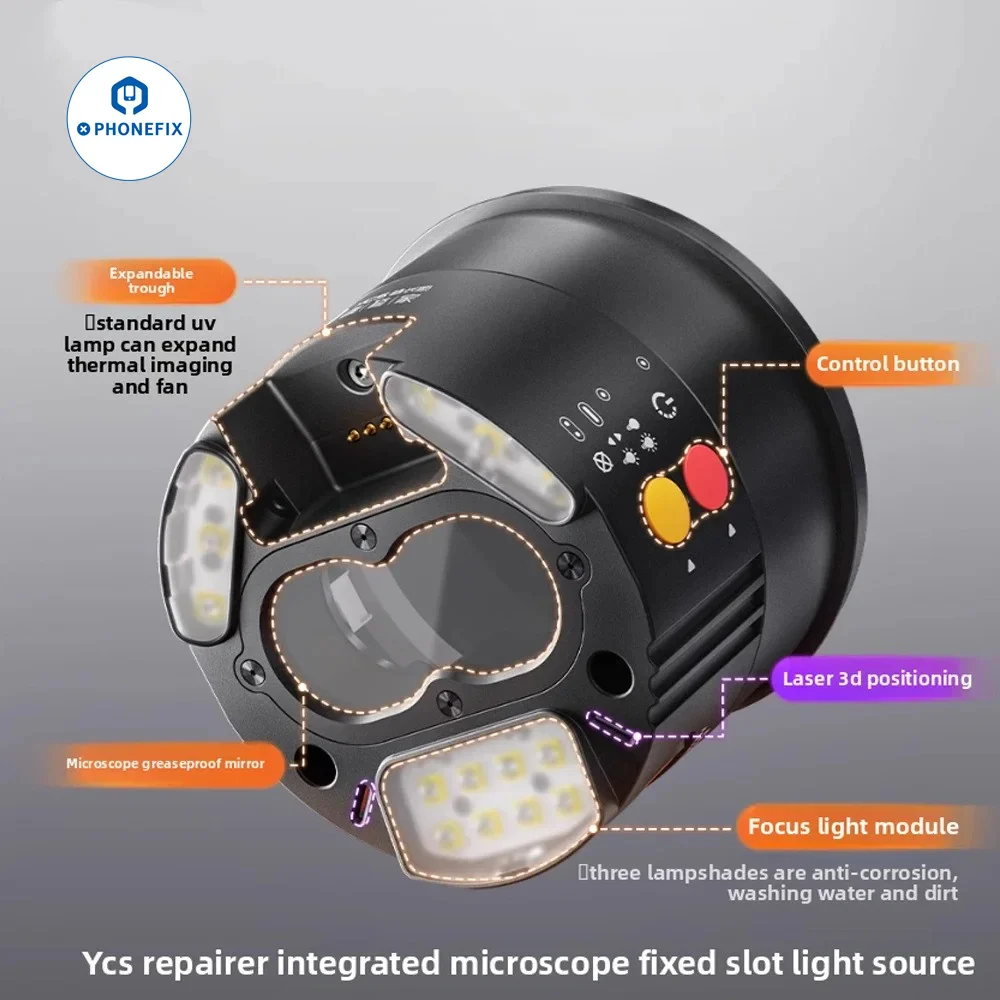

6. Designed with 3D coaxial laser positioning and 95% CRI LED to eliminate shadows during micro soldering. Perfect for iPhone flex cable repair and Android PCB alignment.
7. Standard UV lamp cures glue in seconds. Upgrade with thermal imaging (sold separately) to diagnose overheated ICs or add cooling fans to extend BGA rework time.
8. Intuitive controls with zero learning curve. Long press to adjust brightness, double press to activate laser. Ergonomic button design for concealed operation in repair shops.
Product Parameters:
product name: YCS Integrated Microscope Positioning Light Source (YCS Microscope Tools)
Product size/weight: 81x67mm/239g
Packing size/weight: 101x101x91mm/279g
Support product interface: Type-C interface external
product features: Lighting,positioning, UV curing can expand thermal imaging and fan
