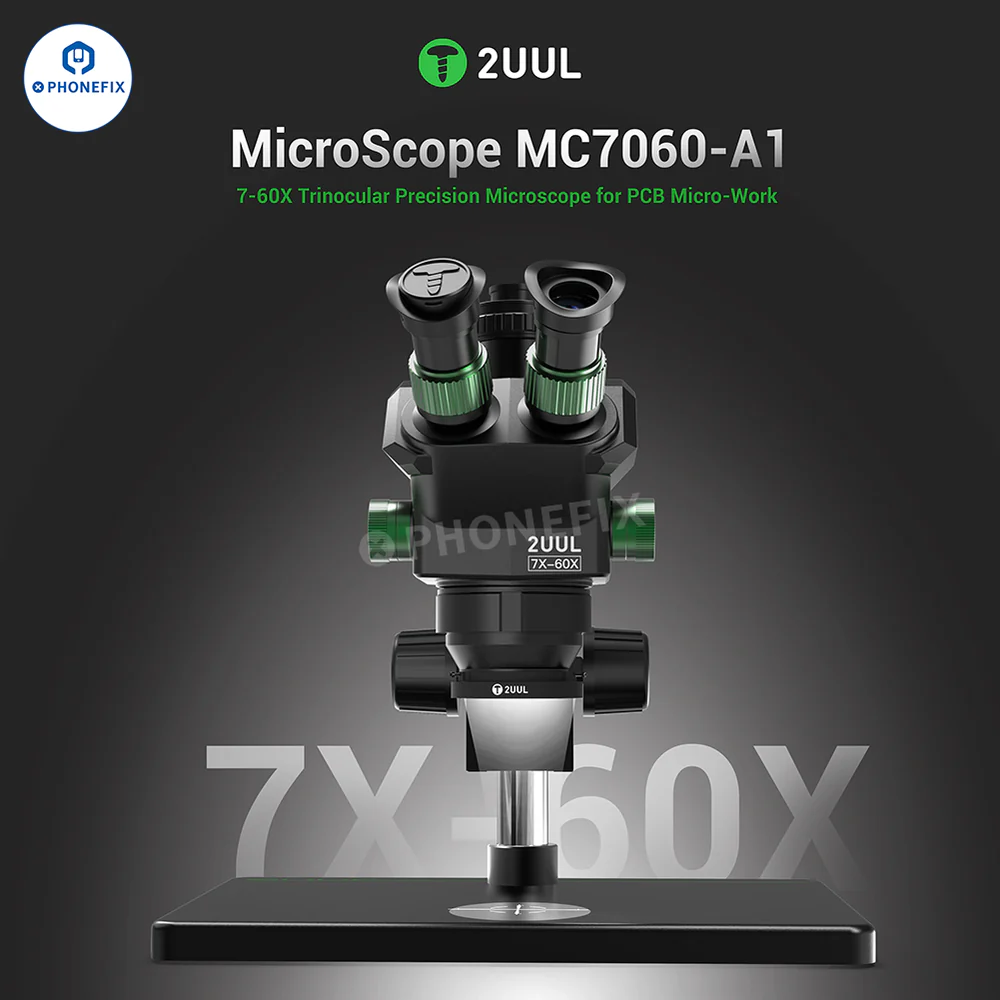

2UUL MicroScope MC7060-A1 7X-60X Synchronous Zoom Trinocular Stereo Microscope for Mobile Phone PCB Micro-soldering Work. 2UUL 7-60X Trinocular Microscope with WF10X/23mm eyepieces, 0.5X CTV lens adapter, adjustable ring lamp and last base, can be used with 4K HDMI cameras, suitable for welding and repairing CPU BGA chips on motherboards of mobile s and other electronic products.

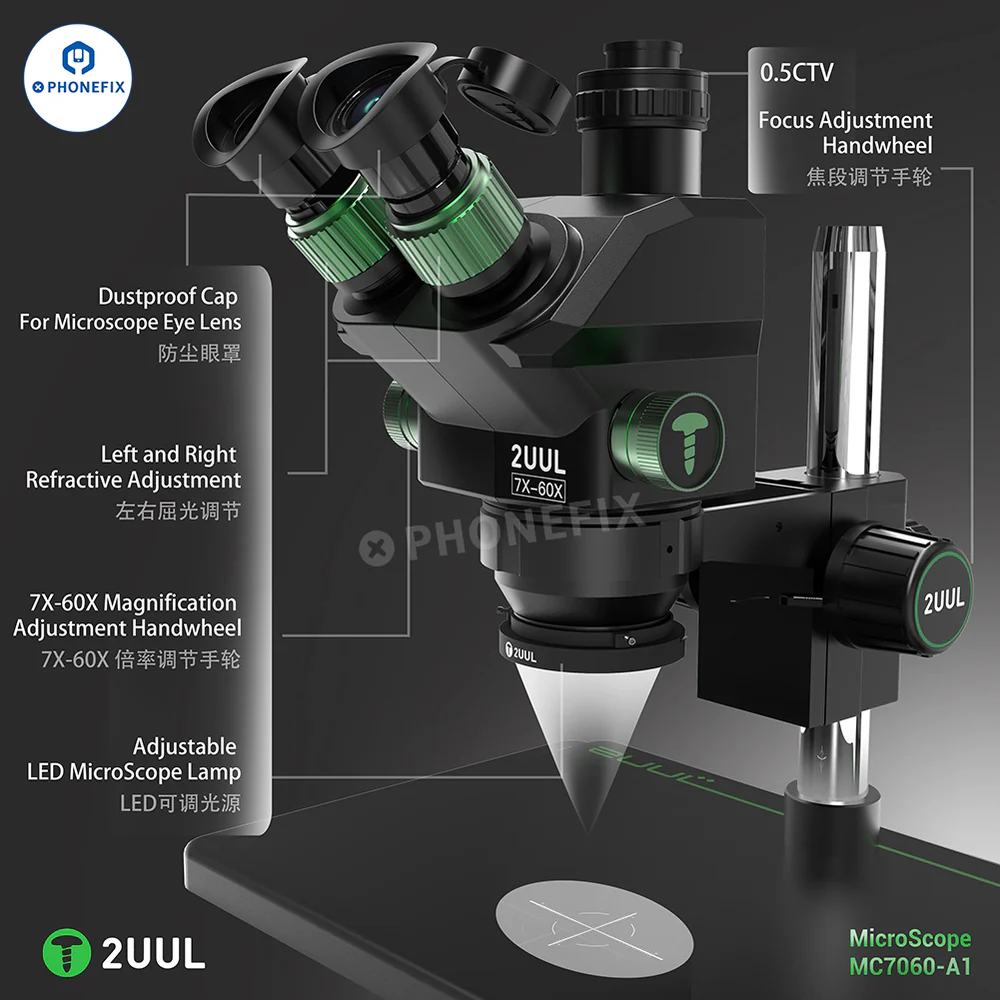

Features:

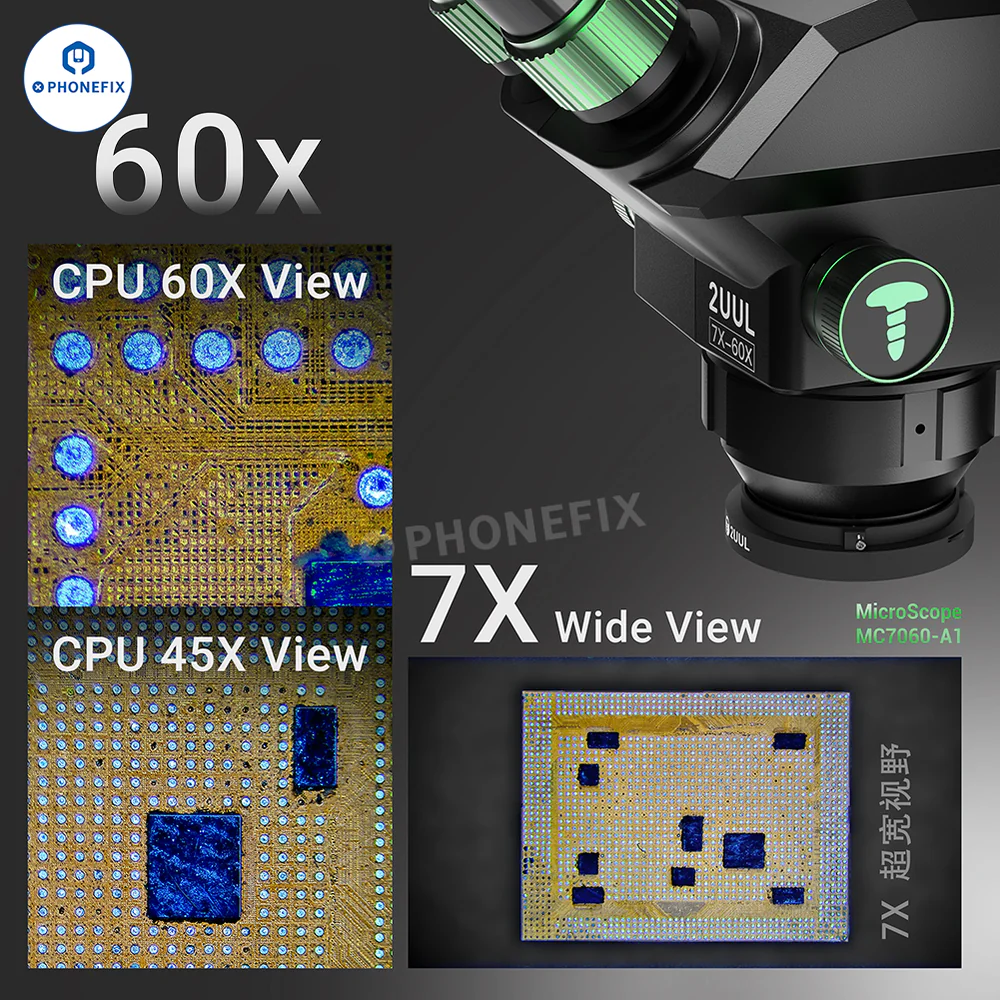

0.7X-6.0X magnification:7-60X flexible magnification adjustment knob, precise control of every magnification detail.
Zoom adjustment knob:continuous zoom without flickering.

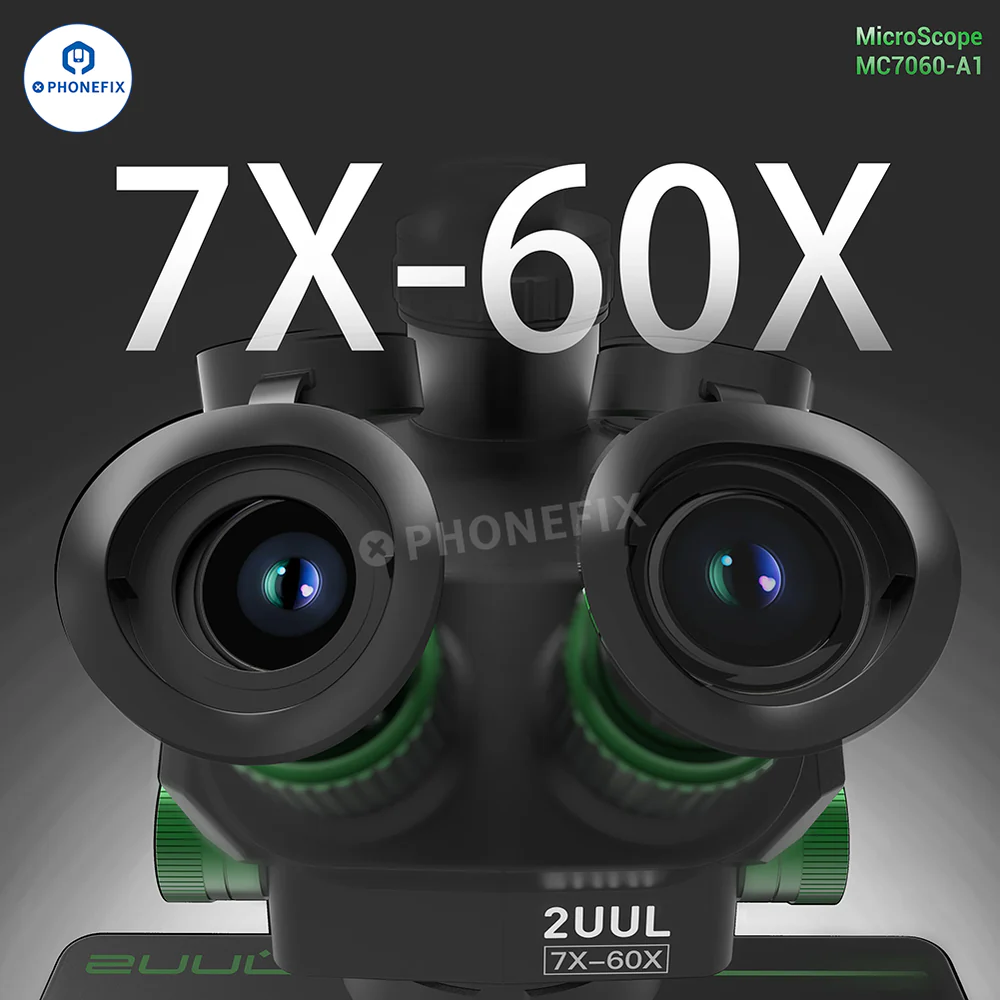

High eye point wide-angle eyepiece:WF 10X23 eyepiece, optical lens with anti-reflective coating technology, double high refractive index and transmittance, unlock a wide field of view, fully explore microscopic details, and observe without fatigue.
Free and flexible eyepiece fine-tuning:the eyepiece can be flexibly adjusted to fit both eyes accurately and comfortably.

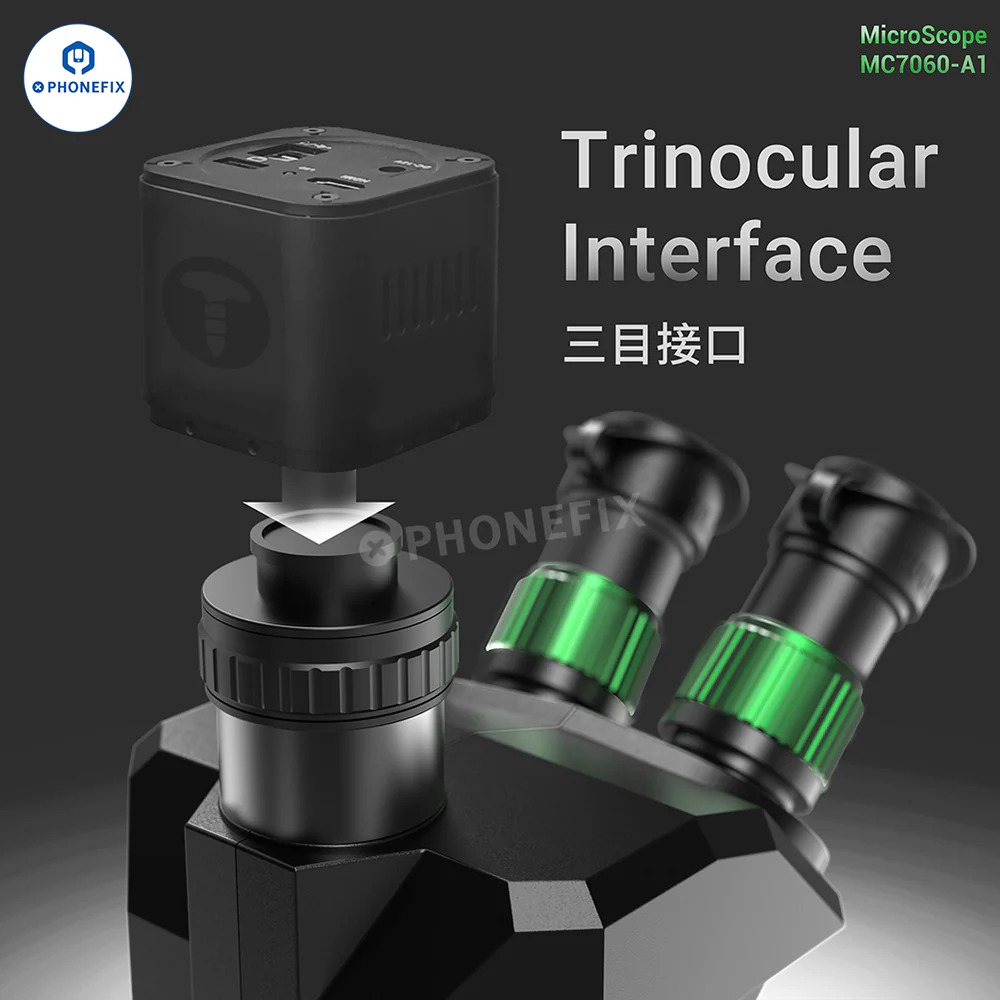

Trinocular interface:suitable for two observation modes: body connection and camera connection.
Up and down focus knob:cooperate with the eyepiece to adjust up and down to make the picture clearer.
Continuous zoom objective lens:various magnifications of the continuous zoom objective lens are clearly visible, suitable for a variety of scenes, control microscopic details.
Adjustable LED light:equipped with LED light board, flexible dimming and precise locking, so that every subtle detail is clearly visible.
Focus on microscopic state:suitable for mobile repair, motherboard CPU repair, mobile PC repair and other teaching, experiments and other scenes.
Product Parameters:
Name: 2UUL MicroScope MC7060-A1 7-60X Trinocular Precision Microscope for PCB Micro-Work.
Product Size: 38x26(Base)x27cm
Package Size: 43s35x27cm
Gross Weight: 5.7Kg
Net Weight: 4.6Kg
Eyepiece: WF10X/23mm,Large field、Wide Angle、High point
Eyepiece Magnification: 7X-60X
Eyepiece Field Of View: 31.4(7X)--3.7(60X)
Trinocular Interface: Trinocular Phototube and CTV, can connect camera,CCD
Package Lists:
Host x1
0.5CTV X1
Host Rack x1
Base 138x26cm x1
Column 24x3.2cm x1

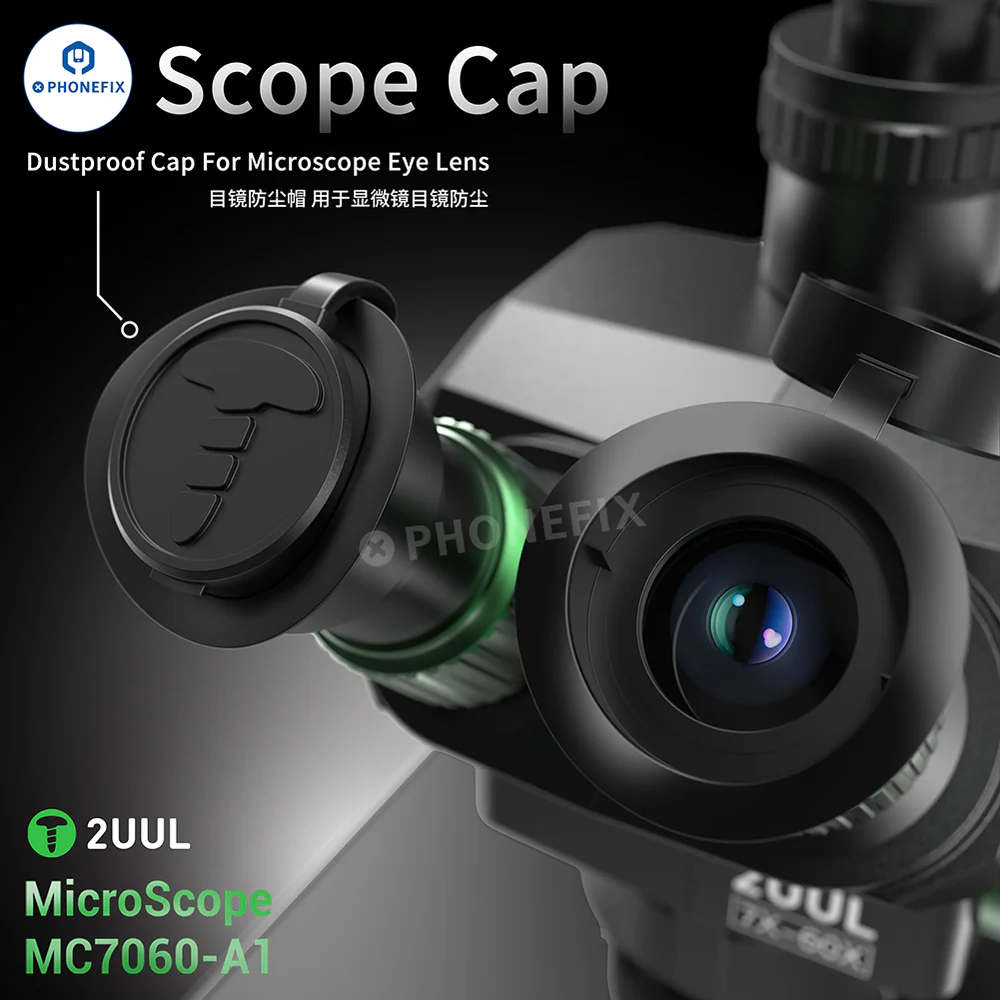

Dustproof ScopeCap x1
Eyepiece Rubber Cushion x2
High Eye Point Widefield 10x/23 Eyepiece x2
72 LED Beads Adjustable LED MicroScope Lamp x1
