High and low temperature universal creep testing machine

Product Introduction:

High and low temperature universal creep testing machine is mainly used for non-metallic materials creep, stress relaxation, tensile, compression, bending, shearing, stripping, tearing and other tests.

Applicable standards:

GB/T 11546.1-2008 Determination of the creep properties of plastics - Part 1: tensile creep

GB/T 15048-94 Test method for compressive creep of rigid foam plastics

GB/T 20672-2006 Determination of compressive creep of rigid foam under specified load and temperature conditions

GB/T 104.1-2006 - Determination of tensile properties of plastics - Part 1

GB/T 1041-92 Test method for compression properties of plastics

GB/T 9341-00 Test method for bending properties of plastics

Main indicators:

1. Test force:

Maximum test force (kN) : 10

Effective force measurement range: 0.4%-100%FS(internal and external ungraded)

Resolution: 1/300000

Relative error: ±0.5%

2. Test speed:

Speed adjustment range: 0.05 —— 500mm/min(stepless speed regulation)

Speed relative error: ±0.5%

Control range of uniform test force rate and uniform deformation rate: 0.01% —— 5%FS/S

Uniform test force rate, uniform deformation rate control error: ±0.5%

Constant test force, constant deformation control range: 0.5% —— 100%FS

Constant test force, constant deformation control error: less than 10%FS is ±1% of the set value, greater than 10%FS is ±0.1% of the set value

3. Displacement (moving the beam)

Measuring range: 0 —— 999mm

Resolution: 0.001mm

Relative error: ±0.5%

Step 4 Transform

Beam deformation measurement accuracy: ±0.5%

Deformation measurement range in beam test: 860mm

Large deformation measurement accuracy: ±0.5%

Large shape measurement range: 25-1000mm

5. Host and accessories

Maximum test force kN 10KN

Effective test width mm: 420

Maximum travel of moving beam mm: 1160

Overall dimensions (length × width × height)mm: 900×480×1810

Maximum clamping force of wedge chuck (kN) : 10

Clamping range: plate mm: 0-8. rod mmφ : 6-φ16. compression device mm: φ70. bending device: support roll radius MMR2.5-R5.0

Roller diameter mm: φ5

Offset range mm: 120

Other supplier products

	Leather Low Temperature Bending Strength Tester G6078-B	Product Introduction This instrument is primarily used to test the cold and folding resistance of shoes and shoe materials to determine how well t...
	Aluminum Tube Internal Coating Continuity Tester	The continuity tester for the inner coating of aluminum tubes is an important device specifically used to detect the continuity of the inner coatin...
	Geomembrane Environmental Stress Cracking Resistance Tester	Scope of application: The stress cracking strength of polyolefin geomembrane was measured and evaluated by notch constant load tensile test. Durin...

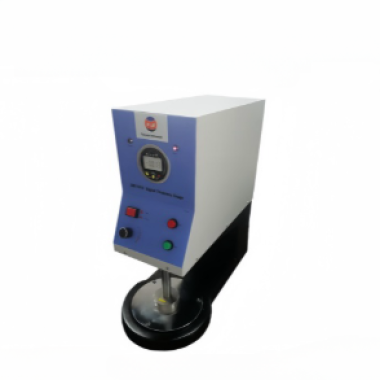

	Geomembrane thickness tester丨Geomembrane thickness machine	Scope of Application: Used to determine the thickness of smooth geomembrane and other plastic films under specified pressure and time. The sample ...
