Adiabatic Self - Accelerating Decomposition Temperature Tester
Product Introduction
This product complies with "Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria" 28.4.2 Test H.2: Insulated Storage Test.
Standards
GB21613-2008
GB/T 39093-2020
Product Features
1. It adopts an embedded processor and the Windows CE operating system. 2. With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time. 3. It has a built - in air circulation system to ensure the uniformity and stability of the cabinet temperature. 4. The digital PID algorithm precisely controls the heating temperature with high temperature - control accuracy. 5. It is equipped with a cooling device to prevent the sample from overheating and exploding. 6. The auxiliary safety device can automatically cut off the heating system at a preset temperature. 7. The instrument has a fault - detection function and audible and visual alarm functions to ensure the safety of the test. 8. The front of the equipment is equipped with an explosion - proof glass observation window, and the back has a pressure - relief door design. When the internal thrust is greater than 2.5 kilograms of force, the pressure - relief door will open to ensure the safety of the test. 9. It can display the running time and real - time temperature in real - time, automatically draw test curves, and allow viewing of original data. 10. The test options are diversified, and users can configure corresponding test parameters according to the characteristics of the samples. 11. The test process is fully automated, requiring no manual intervention. It supports functions such as parameter setting, data storage, and report viewing.
Technical parameters
|
Operating environment |
(5～40)℃, <85%RH |
|
Chamber temperature control range |
-20°C to 220°C |
|
Temperature control accuracy |
±0.5°C |
|
Sample temperature measurement range |
(-50 to 500)°C |
|
Sample temperature measurement resolution |
0.1°C |
|
Sample temperature measurement accuracy |
±2.5°C up to 300°C; ±(0.75% of reading) above 300°C |
|
Dewar's bottle capacity |
1L |
Send product request
Other supplier products
 |
Textile Point-to-Point Resistivity Tester | Product Performance It is an essential instrument for the "Special Labor Protective Equipment Safety Certification" (LA Certification) and the "Sp... |
 |
Textile Spray Rating Tester | spray water repellency testerSpray Rating Tester /Fabric surface waterproof performance tester is designed to determine the surface wetting resista... |
 |
Mask Bacterial Filtration Efficiency Measuring Apparatus | Medical Masks bacterial filtration efficiency tester also called BFE test machine is to determine the bacterial filtration efficiency (BFE) of medi... |
 |
Large Scale Vertical Fire Resistance Test Furnace | Description Fire resistance performance of materialprovideimportant information for evaluation samples and Assembly properties. This furnace is a q... |
 |
Resistance of Materials to Molten Metal Splash | Description: The tester is according to the ISO 9185-2007.This International Standard specifies a method for assessing the heat penetration resist... |
Same products
 |
FH-77 Dissolved hydrogen meter | Seller: Kelilong Electron Co.,Ltd | Pen type dissolved hydrogen detector / dissolved hydrogen meter: used to measure the dissolved hy... |
 |
Xenon Arc Weather Ometer | Seller: Standard International Group (HK) Limited | Get a quote： Whats/App: +86 181 0160 0864 SI4000Xenon Arc Weather Ometer utilizes a xenon lamp ... |
 |
Xenotest | Light Fastness Tester Si220 (SunTest) | Seller: Standard International Group (HK) Limited | Get a quote： Whats/App:+86 180 0160 0864 A Light Fastness Tester, or Xenon Tester, Accelerated ... |
 |
Ozone Aging Chamber | Seller: Standard International Group (HK) Limited | Get a quote： Whats/App:+86 156 1874 6768 The Ozone Aging Chamber is a precision testing instrum... |
 |

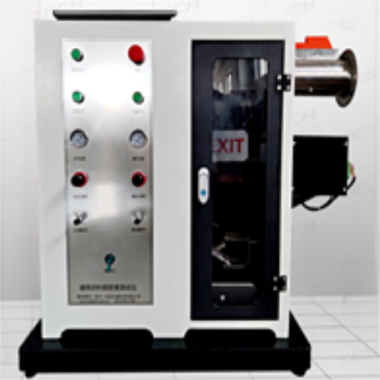

Plastic Smoke Density Tester F313 | Seller: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com The F313 Plastic Smoke Density Tester is ... |
